(20-13[1]) - STRAW SPREADER DRIVE S/N 24001 & ABOVE FOR COMBINES WITH S/N 24000 & BELOW WITH STRAW CHOPPER

Запчасти Case IH 1480 (20-13[1]) - STRAW SPREADER DRIVE S/N 24001 & ABOVE FOR COMBINES WITH S/N 24000 & BELOW WITH STRAW CHOPPER Separation

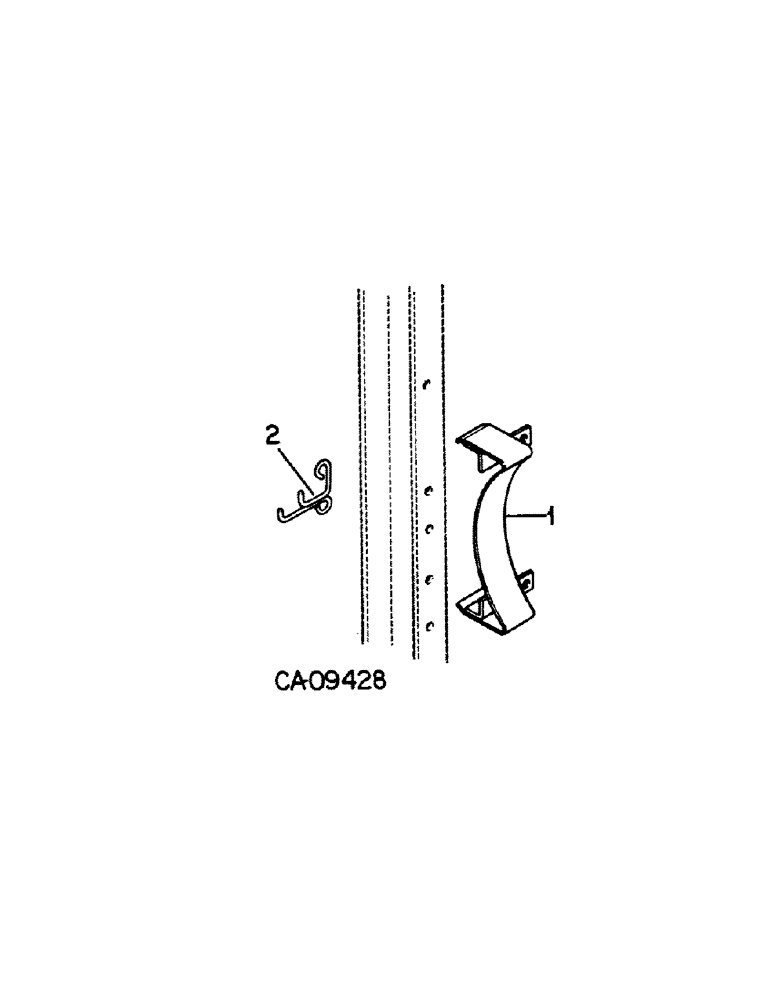

Схема запчастей Case IH 1480 - (20-13[1]) - STRAW SPREADER DRIVE S/N 24001 & ABOVE FOR COMBINES WITH S/N 24000 & BELOW WITH STRAW CHOPPER Separation
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1324423C1

GUARD

SHIELD ASSY, straw spreader pulley

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

2

1324419C1

GUIDE

ASSY, belt

1шт.
