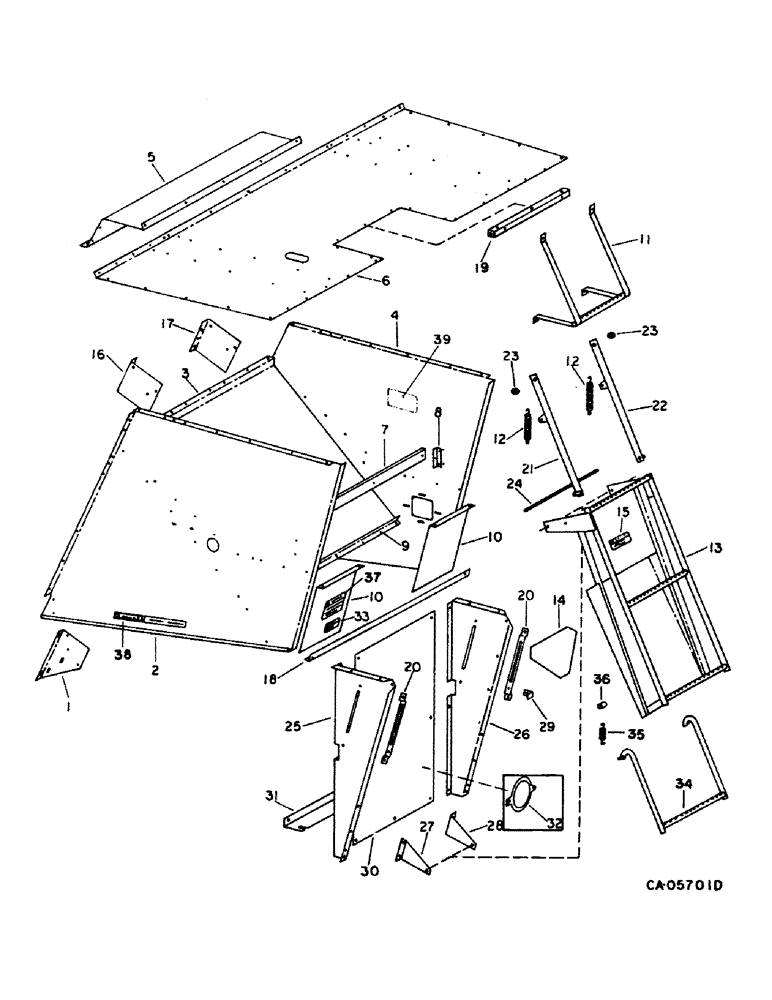

Запчасти Case IH 1480 (20-03) - SEPARATOR, SEPARATOR HOOD AND SERVICE LADDER Separation

1

SUPPORT, separator hood, refer to group 14 under steering axle shield

1шт.

2

192378C5

SUPPORT

separator hood side LH, includes ref. no. 38, replaces 1302697C92

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

3

192306C5

SUPPORT

straw discharge

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

4

1301698C92

SUPPORT, separator hood side RH, includes ref. no. 38

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

5

191216C1

SUPPORT

engine deck

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, 5/16 x 3/4 self tap

1шт.

541310R1

SPRING NUT

5/16 type N speed

1шт.

6

193102C3

SUPPORT

service deck

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

541310R1

SPRING NUT

5/16 N-type speed

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

7

185400C2

CHANNEL

upper service ladder support

1шт.

8

194311C1

ANGLE

upper service ladder

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

9

194306C1

ANGLE

deflector stiffener

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

10

182525C91

SUPPORT

hood rear, includes ref. no. 33, Serial Range: -10000

2шт.

541310R1

SPRING NUT

5/16 n-type speed

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

10

1300295C91

PANEL

ASSY, rear hood access, includes ref no. 33, Start Serial: 10001

1шт.

488837C1

SPRING NUT

5/16

1шт.

176978C1

THUMB SCREW,5/16" - 18 x 0.75"

THUMB SCREW

1шт.

11

185406C1

STEP

ASSY, upper service ladder

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

12

165

SPRING

2шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

13

186179C93

LADDER

ASSY, rear service, includes ref. nos. 14 and 15

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC HDN

1шт.

14

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

SMV emblem

1шт.

15

2754442R1

PRODUCT GRAPHIC

danger

1шт.

16

185104C1

SUPPORT

separator hood sheet LH

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

17

185105C1

SUPPORT

separator hood sheet RH

1шт.

18

192304C1

ANGLE

hood support rear

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

19

186971C1

ANGLE

service deck rear support

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20

186980C1

SUPPORT

ladder pivot

2шт.

21

185223C1

LEVER ASSY.

LEVER ASSY, ladder slip LH

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

22

185224C1

LEVER ASSY.

LEVER ASSY, ladder slip RH

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

23

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

ladder slip lever

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

24

174790C1

ROD

service ladder hinge, Serial Range: -14000

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

118140C1

NUT

push-on

1шт.

25

185404C3

PLATE

SUPPORT, rear service ladder vertical LH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

488837C1

SPRING NUT

5/16 speed

1шт.

26

185405C3

PLATE

SUPPORT, rear service ladder vertical RH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

488837C1

SPRING NUT

5/16 speed

1шт.

27

185227C3

BAR

rear service ladder pivot LH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

28

185228C3

SUPPORT

BAR, rear service ladder pivot RH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

29

186606C2

BAR

ladder stop

1шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5/16 x 1-3/4 type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

30

186970C2

PLATE

SHEET, ladder opening front

1шт.

92068R1

NUT

ladder sheet

1шт.

160508

SCREW,Cross Pan Hd, 1/4" - 20 x 3/8"

1шт.

31

186972C2

SUPPORT

ladder opening bottom

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

32

188315C1

DOOR

fuel tank shut-off access, Serial Range: -54837

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 P/T lock type 5

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

126177

WING NUT

NUT, 1/4 wing

1шт.

33

2754446R1

PRODUCT GRAPHIC

caution

1шт.

34

181181C1

LADDER

STEP ASSY, service ladder extension

1шт.

23042R1

WASHER

.531 x 1.000 x .027

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

35

472179R1

SPRING

over center ladder extension

1шт.

36

181185C1

SPACER

BUSHING, spring pivot

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

37

1302722C1

PRODUCT GRAPHIC

danger rotor

1шт.

38

174797C1

DECAL

PRODUCT GRAPHIC, danger rotor

1шт.

39

185442C1

DECAL

PRODUCT GRAPHIC, danger

1шт.
