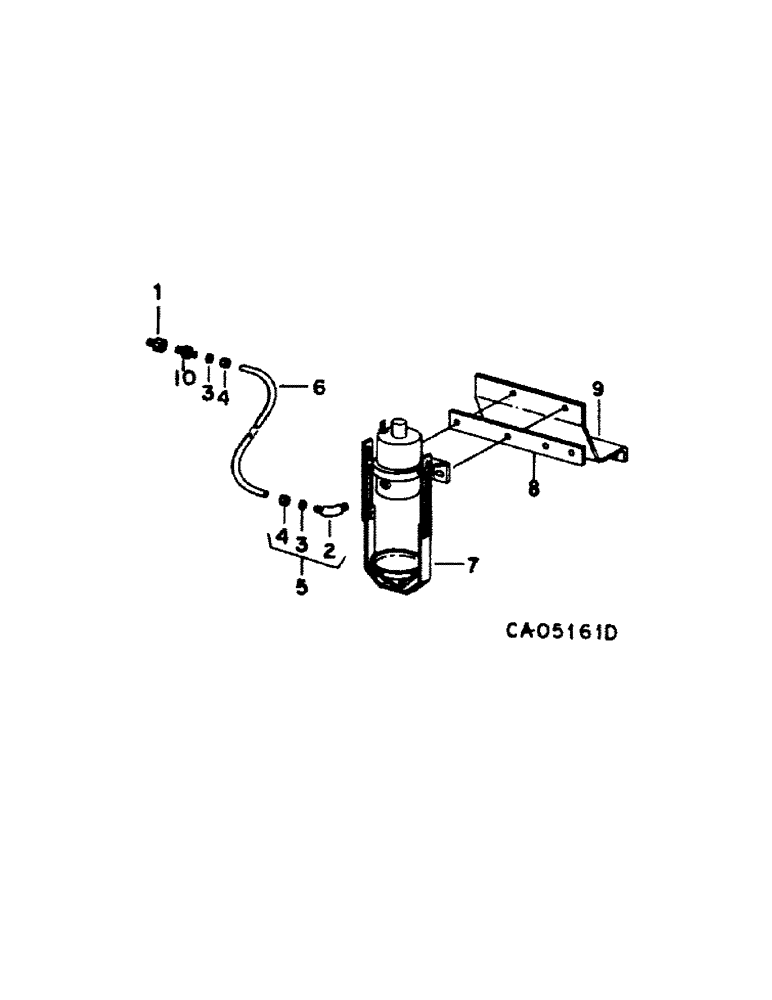

Запчасти Case IH 1480 (12-13) - POWER, ETHER STARTING Power

1

269635R91

NOZZLE CAP

NOZZLE, ether

1шт.

2

140304

ELBOW

ball sleeve

2шт.

3

121322

SLEEVE,Ball Type, 1/8" tube

tube connector

2шт.

4

121220

TUBE NUT

NUT, tube connector

2шт.

5

140304

ELBOW

1/8-27 90 deg ball sleeve tube, includes ref. nos. 2, 3 and 4

1шт.

6

TUBE, ether start, use 20 in. of 1/8 in. OD copper tubing from 60 ft. roll marked 995059R1 & two 121220 nuts & two 121322 sleeves

1шт.

7

121842C91

SOLENOID SWITCH

SOLENOID ASSY, ether injection, composed of

1шт.

395686R1

GASKET

ether staring injector

1шт.

121851C1

RETAINER

injector, bail assy

1шт.

8

107607C2

BAR

relay mounting

1шт.

120376

NUT,5/16"-18, G5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

104412C2

BRACKET

ether solenoid mounting

1шт.

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

298608C11

FITTING

CONNECTOR, tube

1шт.

385064R91

FLUID

starting, 12 oz. can, not illustrated

1шт.
