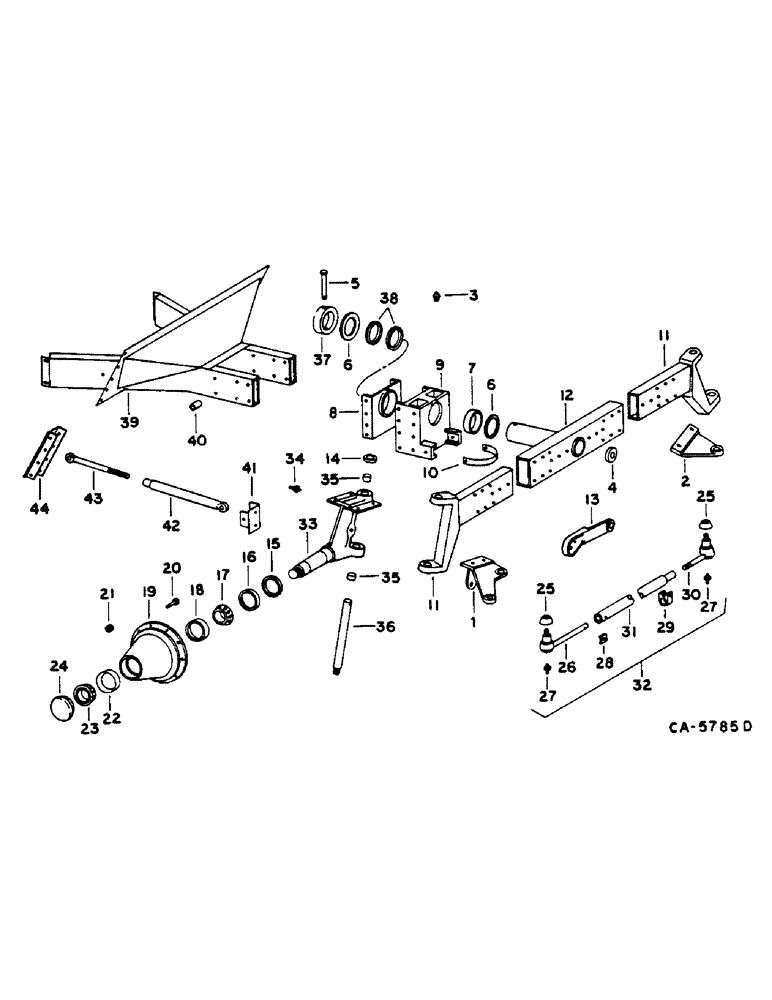

Запчасти Case IH 1460 (14-011) - STEERING AXLE, SUPPORT AND TIE ROD, ADJUSTABLE, FOR RICE Suspension

1

186641C1

LEVER

STEERING L.H.

1шт.

25340R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

1шт.

24883R1

BOLT,Hex, 5/8" - 11 x 5", Gr 8

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

21434R1

NUT,5/8"-11, G8

1шт.

2

186639C1

LEVER

STEERING R.H.

1шт.

25340R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

1шт.

24883R1

BOLT,Hex, 5/8" - 11 x 5", Gr 8

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

21434R1

NUT,5/8"-11, G8

1шт.

3

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, LUB

1шт.

4

167955C2

SEAL

STEERING HOSE

2шт.

5

28147R1

HEADED PIN,3/4" x 5 1/2"

1/4 X 5.5 HD TYPE 1

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

1шт.

6

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

PIVOT TUBE

1шт.

7

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

PIVOT

2шт.

8

182792C92

SUPPORT ASSY.

FRONT PIVOT, WITH 38

1шт.

24896R1

BOLT,Hex, 3/4" - 10 x 5", Gr 8

1шт.

25712R1

WASHER

.812 X 1.500 X .179 HDN

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

9

186599C92

SUPPORT ASSY.

PIVOT, WITH 7

1шт.

24896R1

BOLT,Hex, 3/4" - 10 x 5", Gr 8

6шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

8шт.

30330R1

WASHER,M20 x 37.5 x 4, HT

20 MM HDN

8шт.

25360R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

2шт.

10

1302625C1

CHANNEL

COMBINE TOW

1шт.

24879R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

1шт.

11

186595C2

EXTENSION

ASSY, AXLE - 68 TO 88 IN.

2шт.

11

186045C2

EXTENSION ASSY.

AXLE - 92 TO 120 IN.

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

NLS

NO LONGER SERVICED

1шт.

12

182797C3

AXLE

ASSY, NARROW ADJUSTABLE - 68 TO 88 IN.

1шт.

12

1302522C2

STEERING AXLE

ASSY, ADJUSTABLE - 92 TO 120 IN.

1шт.

13

186598C1

BRACKET

ANCHOR, STEERING CYLINDER - 68 TO 88 IN.

1шт.

13

186574C1

ANCHOR

STEERING CYLINDER - 92 TO 120 IN.

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

1шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

Course threads

1шт.

14

596829R91

BEARING ASSY,2.014" ID x 2.9475" OD x 0.635"

ASSY, KNUCKLE THRUST

2шт.

15

169329R91

SEAL, KNUCKLE OIL

2шт.

16

169328C1

SLEEVE

RING, STEERING HUB OIL SEAL WEAR

1шт.

17

625742C91

BEARING

ASSY, HUB INNER CONE

2шт.

18

625743C1

BEARING CUP,90mm OD x 18.5mm W

HUB INNER CUP

2шт.

19

169293C11

HUB

ASSY, AXLE, WITH 16, 18, 20, 21, 22

2шт.

20

366021R1

BOLT

HUB

16шт.

21

554480R1

WHEEL NUT

WHEEL HUB BOLT

16шт.

22

663558R1

BEARING CUP

HUB OUTER

2шт.

23

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

ASSY, HUB OUTER

2шт.

24

560950R1

HUB CAP

HUB

2шт.

25

180800C1

SEAL

TIE ROD STUD

2шт.

26

180803C91

JOINT

END ASSY, TIE ROD L.H. - 68 TO 88 IN.

1шт.

26

180799C91

TIE-ROD

TIE ROD L.H. - 92 TO 120 IN., WITH 25

1шт.

25779R1

BOLT,Hex, 3/8" - 24 x 3", Gr 8

1шт.

232-4636

LOCK NUT,3/8"-24, GC

1шт.

358901R1

SLOTTED NUT

ROD END

1шт.

27

109461

LUBE NIPPLE,1/8"-27 x .66 lg

2шт.

28

180586C1

BRACKET

WASHER, TIE ROD END CLAMP L.H.

2шт.

29

446308C91

CLAMP

TIE ROD END R.H.

1шт.

30

180798C91

END ASSY.

TIE ROD R.H., WITH 25

1шт.

358901R1

SLOTTED NUT

ROD END

1шт.

31

180802C1

TUBE,1.533" ID x 68.88" L

TUBE, TIE ROD - FOR NARROW ADJ. - 68 TO 88 IN.

1шт.

31

180801C1

TUBE

TUBE, TIE - 92 TO 120 IN. -

1шт.

32

186603C91

ROD

ASSY, AXLE TIE - 68 TO 88 IN.

1шт.

32

186139C91

DRAG LINK

ROD ASSY, AXLE TIE - 92 TO 120 IN., WITH 25 - 31

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

1шт.

358901R1

SLOTTED NUT

NUT, 5/8 NF SLT TYPE 5

1шт.

33

185439C91

STEERING KNUCKLE

STEERING L.H.

1шт.

33

185440C91

STEERING KNUCKLE

STEERING R.H. - INCLUDES ITEM 35

1шт.

427652

SLOTTED NUT,1"-14, G5

1шт.

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 X 2-1/4 X 1/4

1шт.

34

87414

LUBE NIPPLE,1/4" - 28

2шт.

35

186680C1

BUSHING,50.93mm ID x 55.56mm OD x 50.8mm L

KNUCKLE

4шт.

36

186052C1

PIN,50.8mm OD x 508mm L

ROD, STEERING KNUCKLE KING

2шт.

25-1224

SLOTTED NUT,1 1/2"-6, G5

1шт.

551293R1

WASHER

1-17/32 X 3 X 11 GA

1шт.

137318

COTTER PIN,1/4" x 3"

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1.031 X 2.25 X .25

1шт.

37

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

AXLE PIVOT

1шт.

38

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

BUSHING, PIVOT

2шт.

39

1308816C1

SUPPORT

STEERING AXLE

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

380916R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1шт.

25712R1

WASHER

.812 X 1.500 X .179 HDN

1шт.

40

177748C1

SPACER

STEERING AXLE SUPPORT

1шт.

41

183494C1

SUPPORT ASSY.

ROD REAR

2шт.

42

181444C1

TIE-ROD,1" - 8

AXLE ROD REAR EYE

2шт.

23313R1

HEADED PIN,7/8" x 3 1/2"

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

1шт.

9849633

NUT,1"-8, G5

1шт.

43

181442C2

BOLT

AXLE FRONT EYE

2шт.

Q964

HEADED PIN,7/8" x 2.734"

7/8 X 3. PLN HD TYPE 1

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

1шт.

44

183491C1

SUPPORT ASSY.

ROD FRONT

2шт.
