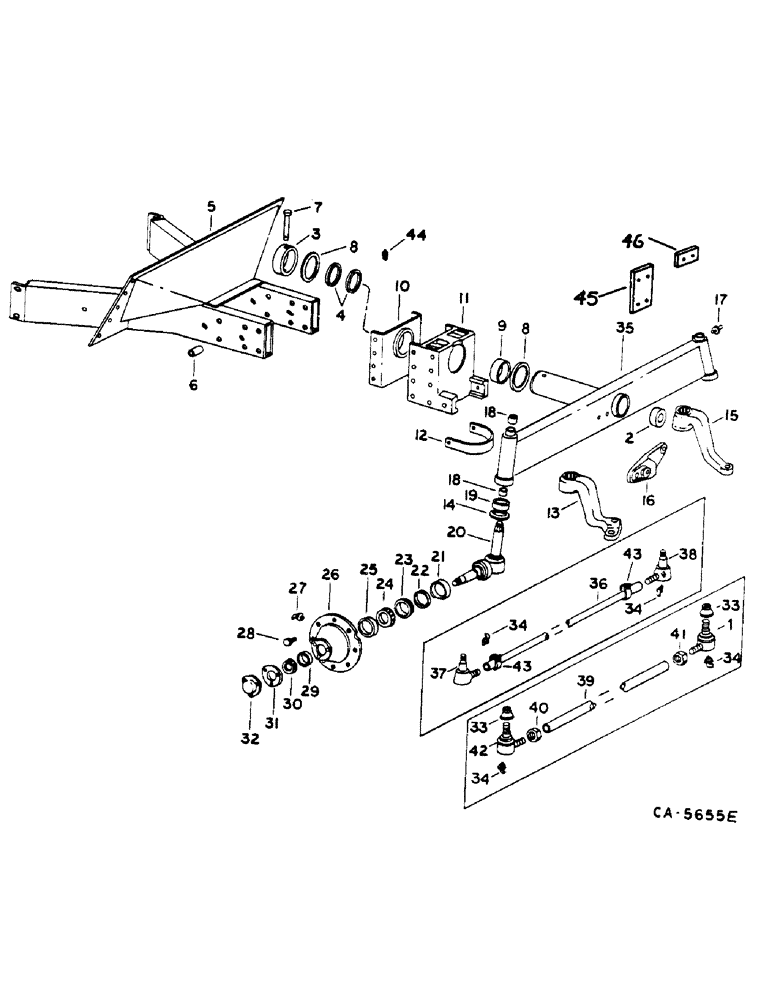

Запчасти Case IH 1460 (14-002) - STEERING AXLE SUPPORT AND TIE ROD, FIXED, FOR GRAIN AND CORN Suspension

379551R92

END ASSY.

RH - WITH NUT AND SEAL, WITH 33

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

1шт.

2

167955C2

SEAL

STEERING HOSES

1шт.

3

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

STEERING AXLE PIVOT TUBE

1шт.

4

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

BUSHING, PIVOT

2шт.

5

1308816C1

SUPPORT

STEERING AXLE

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

380916R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

25712R1

WASHER

.812 X 1.500 X .179 HDN

1шт.

6

177748C1

SPACER

STEERING AXLE SUPPORT

1шт.

7

28147R1

HEADED PIN,3/4" x 5 1/2"

3/4 X 5-1/2 STD. HD

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

1шт.

8

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

STEERING AXLE PIVOT TUBE

3шт.

9

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

AXLE PIVOT

1шт.

10

182792C92

SUPPORT ASSY.

FRONT PIVOT, WITH 4

1шт.

24896R1

BOLT,Hex, 3/4" - 10 x 5", Gr 8

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

25712R1

WASHER

25/32 X 1-1/2 X .179 HARD

1шт.

11

177749C93

SUPPORT

ASSY, STEERING AXLE PIVOT, WITH 9

1шт.

24896R1

BOLT,Hex, 3/4" - 10 x 5", Gr 8

8шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

8шт.

30330R1

WASHER,M20 x 37.5 x 4, HT

20 MM HARDND

8шт.

12

196084C2

CHANNEL

COMBINE TOW

1шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

1шт.

13

193911C1

LEVER

STEERING KNUCKLE L.H.

1шт.

14

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

15

193912C1

ARM

STEERING KNUCKLE R.H.

1шт.

16

193917C1

ANCHOR

STEERING CYLINDER

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

Course threads

1шт.

17

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 STR DRIVE LUB

2шт.

18

376099R1

BUSHING

AXLE SPINDLE PIVOT TUBE

4шт.

19

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

ASSY, STEERING KNUCKLE THRUST

2шт.

20

196334C2

KNUCKLE

ASSY. STEERING, WITH 21 - 22

2шт.

427646

SLOTTED NUT,7/8"-14, G5

1шт.

427547

JAM NUT,Jam, 1 3/8"-12, G5

1шт.

137228

COTTER PIN,5/32" x 1 1/2"

1шт.

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

.89 X 1.88 X 5 GA HARD

1шт.

22827R1

WASHER

1.406 X 2.750 X .042

1шт.

21

48701D

SHIELD

STEERING KNUCKLE DUST

2шт.

22

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

STEERING KNUCKLE OIL

2шт.

23

48703D

RETAINER

STEERING HUB SEAL

2шт.

24

G15215

ROLLER BEARING

ASSY, STEERING HUB INNER

2шт.

25

619387R1

BEARING CUP

STEERING HUB INNER

2шт.

26

391824R11

HUB ASSY.

STEERING, WITH 23, 25, 29

2шт.

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

16шт.

27

19700R91

FITTING

3/16 X 45 DEG. DRIVE TYPE LUB

2шт.

28

364451R1

BOLT,9/16" - 18 x 1 7/32"

GUIDE WHEEL HUB

16шт.

29

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Steering hub outer

2шт.

30

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

ASSY, STEERING HUB OUTER

2шт.

31

369860R1

GASKET,0.79mm Thk

STEERING HUB CAP

2шт.

32

369859R1

CAP

STEERING HUB

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

80681

LOCK WASHER,5/16"

1шт.

33

382562R1

SEAL

TIE ROD STUD

2шт.

34

16964R91

FITTING

1/4-28 90 DEG. LUB

2шт.

35

1302521C2

AXLE

ASSY, WITH 18

1шт.

36

177772C91

ROD ASSY.

AXLE TIE, WITH 37, 38, 43, OPTIONAL 177774C91

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

1шт.

37

180202C1

END ASSY.

TIE ROD L.H.

1шт.

38

180203C1

END ASSY.

TIE ROD R.H.

1шт.

39

177774C91

ROD

ASSY, AXLE TIE, WITH 1, 40 - 42, OPTIONAL 177772C91

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

1шт.

40

374061R1

JAM NUT

1-16 TIE ROD L.H.

1шт.

41

374062R1

JAM NUT

1-16 TIE ROD R.H.

1шт.

42

180201C91

END

ASSY, W/NUT AND SEAL L.H., WITH 33

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

1шт.

43

1300176C1

CLAMP,28.5mm ID

ASSY, ROD

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

9413956

LOCK NUT,1/2"-13, GB

1шт.

44

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, LUB

1шт.

45

3171797R2

BRACKET

SUPPORT, REFLECTOR

2шт.

30956R1

SELF-TAP SCREW

M6 X 12 TAP TYPE D

4шт.

46

3165615R2

REFLECTOR

2шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.
