(12-021) - ENGINE BELT DIAGRAM

Запчасти Case IH 1460 (12-021) - ENGINE BELT DIAGRAM Power

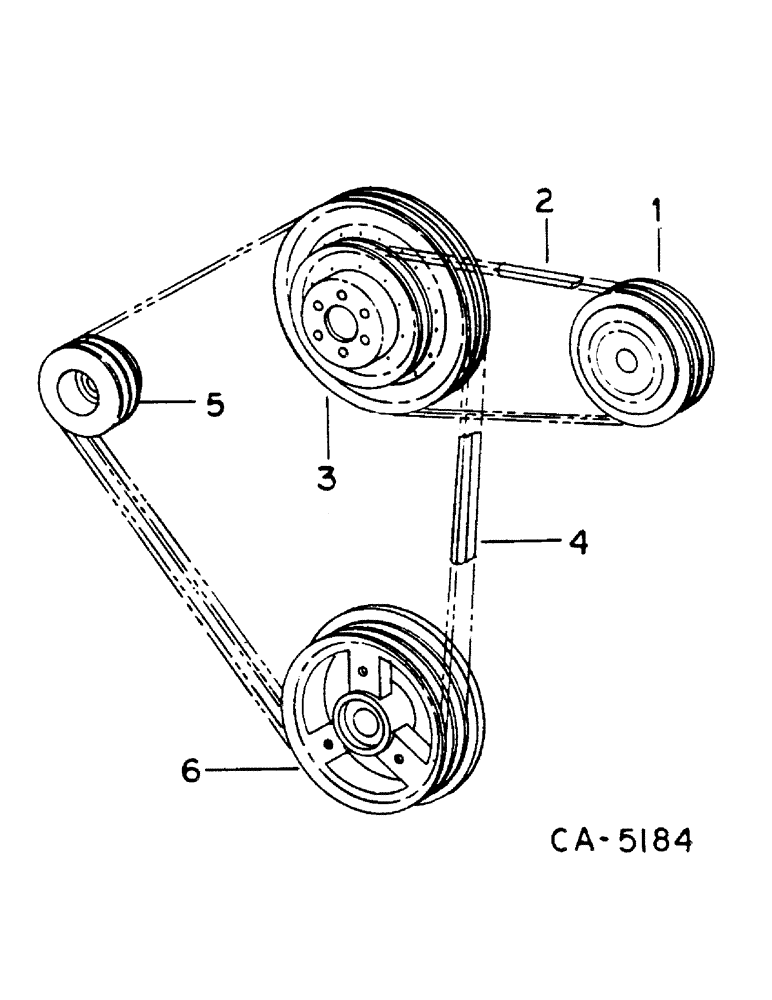

Схема запчастей Case IH 1460 - (12-021) - ENGINE BELT DIAGRAM Power
3
1
5
4
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PULLEY ASSY, COMPRESSOR - SEE AIR CONDITIONER COMPRESSOR AND CONDENSER

1шт.

2

BELT, COMPRESSOR DRIVE - SEE AIR CONDITIONER COMPRESSOR AND CONDENSER

1шт.

3

PULLEY, WATER PUMP - SEE ENGINE PARTS CATALOGUE

1шт.

4

537072R91

SET OF BELTS

Matched, Fan

1шт.

5

PULLEY, ALTERNATOR-GENERATOR - SEE ALTERNATOR-GENERATOR AND MOUNTINGS

1шт.

6

DAMPER ASSY, VIBRATION - SEE ENGINE PARTS CATALOGUE

1шт.

Выбрано товаров: 6
