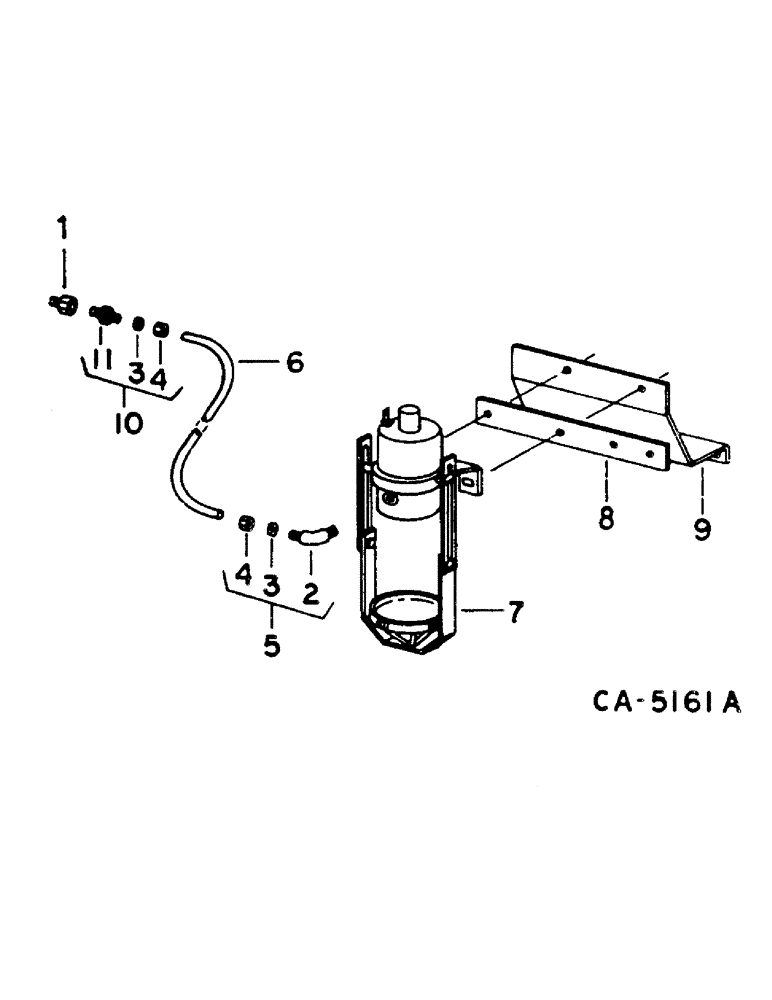

Запчасти Case IH 1460 (12-019) - ETHER STARTING Power

1

269635R91

NOZZLE CAP

ETHER

1шт.

2

140303

ELBOW

BALL SLEEVE

1шт.

3

121322

SLEEVE,Ball Type, 1/8" tube

TUBE CONNECTOR

2шт.

4

121220

TUBE NUT

TUBE CONNECTOR

2шт.

5

140304

ELBOW

1/8-27 90 DEG. BALL SLEEVE TUBE, WITH 2, 3, 4

1шт.

6

TUBE, ETHER START - 20 IN. OF 1/8 OD COPPER TUBING AND 2 - 121220 2 - 121322 - FROM BULK LENGTH

1шт.

995059

LINE

TUBE, 1/8 OD COPPER, BULK LENGTH 60 FT

1шт.

7

121842C91

SOLENOID SWITCH

ASSY, ETHER INJECTION - CONSISTS OF

1шт.

395686R1

GASKET

ETHER STARTING INJECTION

1шт.

121851C1

RETAINER

INJECTION - BAIL ASSY

1шт.

8

NOT USED

1шт.

9

NOT USED

1шт.

10

140285

X

CONNECTOR ASSY, 1/8-27 BALL SLEEVE, WITH 3, 4, 11

1шт.

11

140284

PIPE FITTING

CONNECTOR, TUBE

1шт.

12

1310636C1

MOTOR HOUSING

BAR, ETHER SOLENOID MOUNTING

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

385064R91

FLUID

STARTING - 12 OZ. CAN, NOT ILLUSTRATED

1шт.
