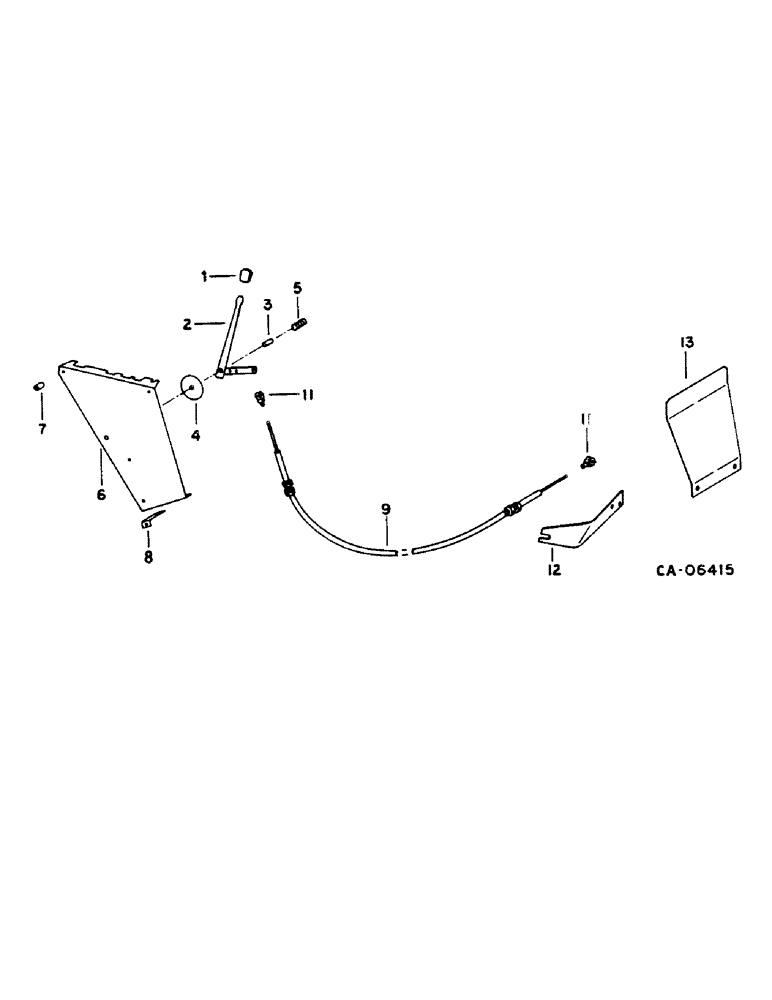

Запчасти Case IH 1460 (12-017) - THROTTLE CONTROLS Power

1

120197C2

KNOB

THROTTLE LEVER

1шт.

2

1301183C91

LEVER

THROTTLE CONTROL

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

1шт.

3

154397C1

SPACER,5/8" Tube x 1 1/4"

.407 X .625 X 1.25 PIPE

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

4

941133C1

WASHER

THROTTLE LEVER

1шт.

5

PO22

SPRING

THROTTLE CONTROL LEVER

1шт.

614452R1

WASHER

.406 X 1.250 X .090

1шт.

6

1301185C1

SUPPORT

THROTTLE CONTROL

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 X 1/2 SLT-TRUSS-HD

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

7

SA10227

SPACER,3/8" Pipe x 1 1/8"

.493 X .675 X 1.125

2шт.

8

1301242C1

BRACKET

THROTTLE SUPPORT

1шт.

9

196506C1

BOWDEN CONTROL

CABLE ASSY, THROTTLE

1шт.

120614

NUT,Hex, #10 - 32

1шт.

10

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

3/8 IN. ID

2шт.

11

NLS

NO LONGER SERVICED

ADJ ROD END

2шт.

20155R1

CLEVIS PIN,3/16" x .719"

1шт.

112726

COTTER PIN,1/16" x 1/2"

1шт.

12

187534C2

SUPPORT

THROTTLE REAR

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

142619H

WASHER

.406 X .750 X .105

1шт.

13

183777C2

SUPPORT

SHIELD, THROTTLE CABLE REAR

1шт.
