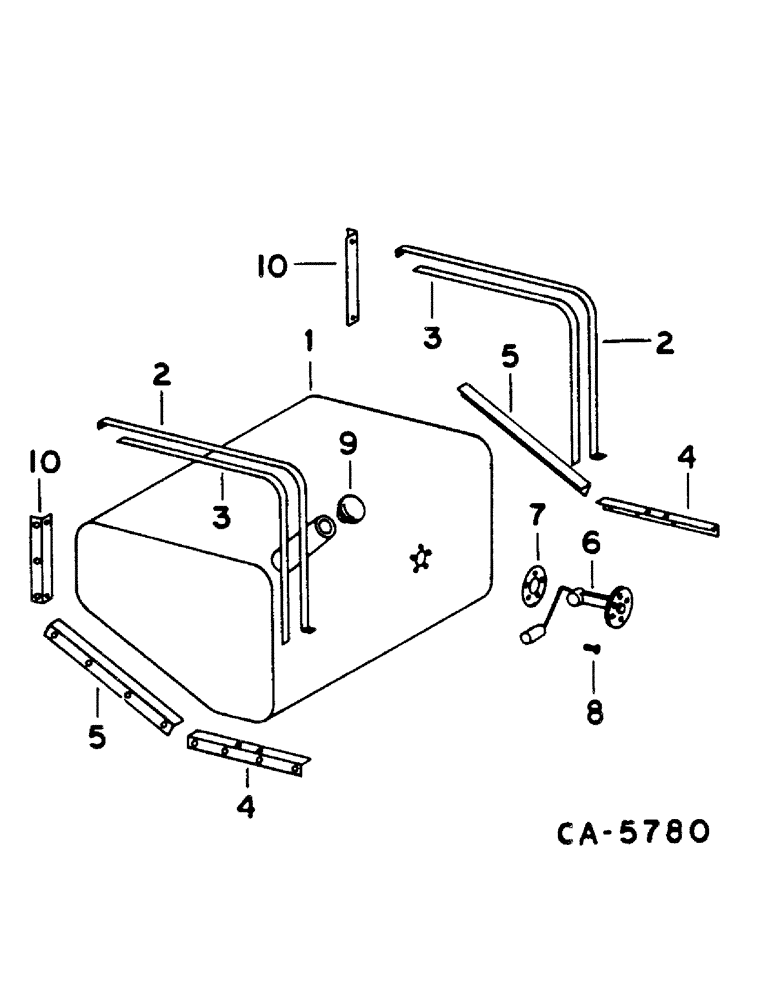

Запчасти Case IH 1460 (12-008) - FUEL TANK Power

1

193550C92

FUEL TANK

ASSY

1шт.

2

1302031C1

STRAP

STRIP, FUEL TANK SUPPORT

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

1шт.

80681

LOCK WASHER,5/16"

1шт.

21496R1

WASHER

.344 X .750 X .105

1шт.

3

LINING, FUEL TANK SUPPORT - 72 IN. OF 1-1/4 WIDE 3-PLY COTTON WEBBING - FROM BULK LENGTH

1шт.

990539R1

STRIP

LINING, 3-PLY COTTON WEBBING BULK LENGTH 50 FT

1шт.

4

192381C3

SUPPORT

FUEL TANK BOTTOM SUPPORT

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

5

1302029C1

SUPPORT

FUEL TANK FORWARD SUPPORT

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

6

198024C1

FUEL GAUGE

FUEL TANK

1шт.

7

168515C1

GASKET,3.05mm Thk

FUEL TANK SENDING UNIT

1шт.

8

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

Sending Unit Mounting

5шт.

9

538063R1

PLUG

CAP, FILLER

1шт.

10

1302030C1

ANGLE

FUEL TANK FRONT

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.
