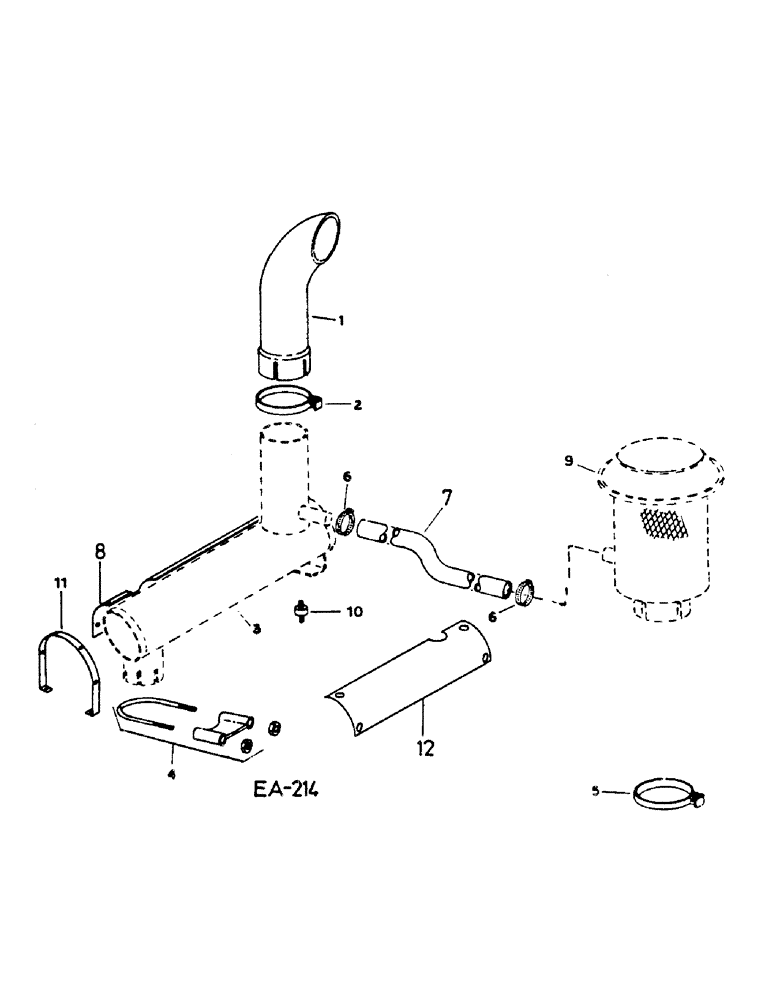

Запчасти Case IH 1460 (12-006) - ASPIRATED PRE-CLEANER PRE-SCREENER Power

1

549918R1

PIPE

EXHAUST

1шт.

2

58937C1

CLAMP

EXHAUST PIPE

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

3

80146C1

MUFFLER

1шт.

4

895061C1

CLAMP,93.73mm ID

ASSY, EXHAUST

1шт.

5

650986R1

CLAMP

AIR CLEANER INTAKE PIPE

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

6

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

EJECTOR HOSE

2шт.

7

1312424C1

HOSE,25.00 mm ID x 760.00 mm

EXHAUST EJECTOR

1шт.

8

1311337C1

GUARD

SHIELD, MUFFLER FRONT

1шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

12шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

12шт.

9

130918C91

PRESCREENER ASSY.

1шт.

10

121939C1

PIVOT

STUD MOUNT

1шт.

120376

NUT,5/16"-18, G5

1шт.

20824R1

WASHER

.344 X 1.500 X .054

1шт.

80681

LOCK WASHER,5/16"

1шт.

11

1311160C1

BRACKET

SHIELD

2шт.

12

1311161C1

SHIELD

MUFFLER - REAR

1шт.
