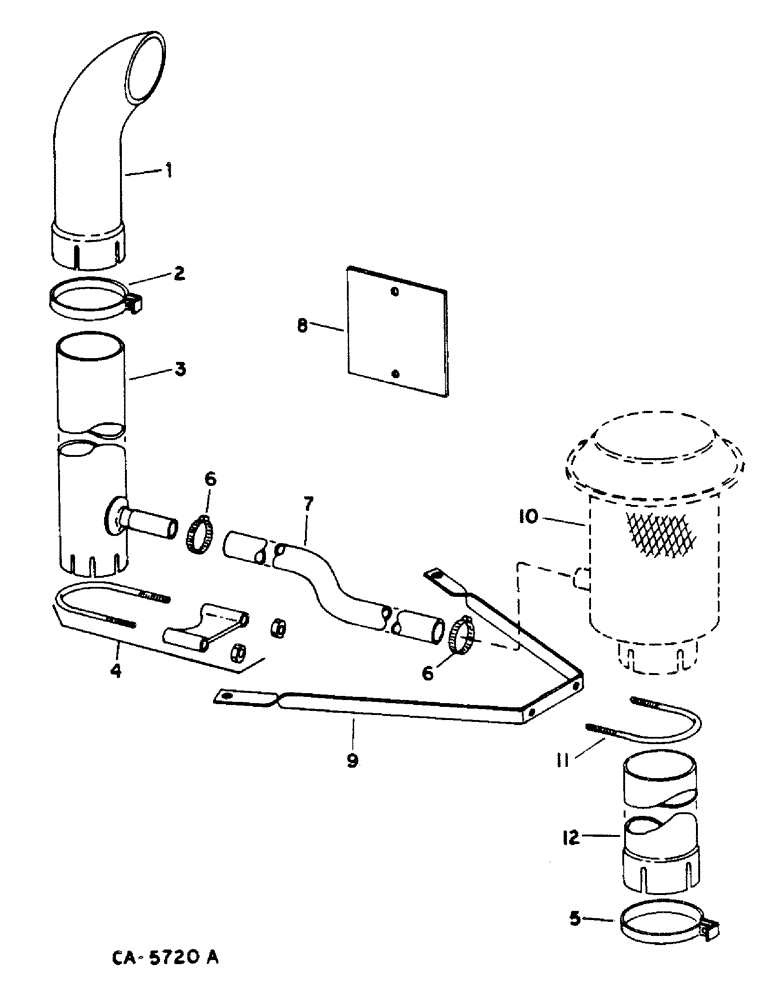

Запчасти Case IH 1460 (12-004) - ASPIRATED PRE-CLEANER PRE-SCREENER, FIELD INSTALLED ASPIRATOR ATTACHMENT Power

1

549918R1

PIPE

EXHAUST

1шт.

2

58937C1

CLAMP

EXHAUST PIPE

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

3

533183R1

MUFFLER

1шт.

4

61156C91

PACKAGE

MUFFLER CLAMP

1шт.

5

650986R1

CLAMP

AIR CLEANER INTAKE PIPE

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

6

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

EJECTOR HOSE

2шт.

7

131375C1

HOSE,31.75 mm ID x 355.6 mm, SAE 20R4 CLASS D2

EXHAUST EJECTOR

1шт.

8

121985C1

PLATE

AIR INTAKE COVER

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

9

130729C1

SUPPORT

PRE-CLEANER

1шт.

10

PRESCREENER ASSY - SEE PRE-CLEANER PRE-SCREENER

1шт.

11

121839C1

BOLT,5/16" - 18 x 4.88" W x 5.30" L

"U" SUPPORT

1шт.

120376

NUT,5/16"-18, G5

1шт.

12

131064C1

TUBE

AIR CLEANER INTAKE

1шт.
