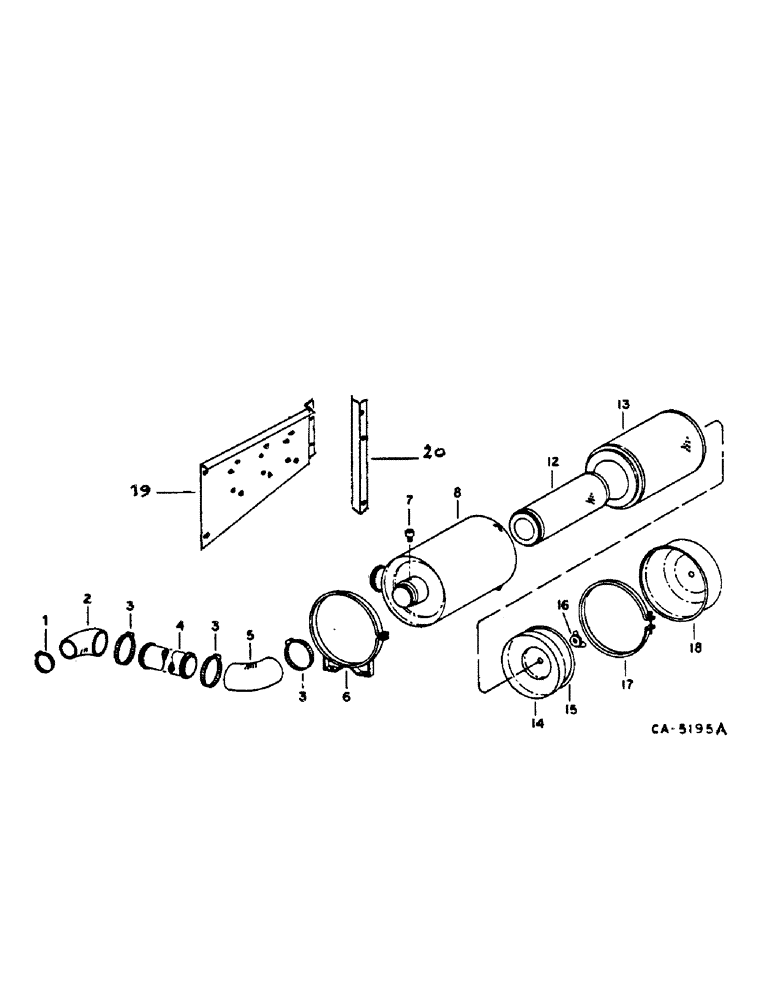

Запчасти Case IH 1460 (12-002) - AIR CLEANER AND CONNECTIONS Power

121788C91

CLEANER

AIR DRY TYPE, WITH 12 - 18

1шт.

1

146569C1

CLAMP

1шт.

2

548222R1

INTAKE AIR HOSE,3.00" ID, 4.00" ID x 4.25"

ELBOW, INLET ENGINE

1шт.

3

146570C1

CLAMP

AIR CLEANER INLET HOSE

5шт.

4

1312427C1

TUBE,101.6 mm OD, 360 mm Length

AIR CLEANER OUTLET

1шт.

5

218899R1

ELBOW

AIR CLEANER OUTLET

1шт.

6

259922C91

BAND

AIR CLEANER MOUNTING

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8-16 X 1 FLANGE LOCK

1шт.

7

366078C1

INDICATOR

AIR RESTRICTION

1шт.

8

HOUSING ASSY, AIR CLEANER - NOT AVAILABLE SEPARATELY, ORDER 121778C91

1шт.

9

NOT USED

1шт.

10

NOT USED

1шт.

11

NOT USED

1шт.

12

932390C1

AIR FILTER

SAFETY

1шт.

13

932391C1

FILTER, ELEMENT

ELEMENT, FILTER PRIMARY

1шт.

14

383610C1

BAFFLE

1шт.

15

225067R1

O-RING,10.62" ID x 0.27" Width

1шт.

16

412078C1

WING NUT

1шт.

17

891128R91

CLAMP

1шт.

18

529820R1

CUP

1шт.

19

1312459C1

SUPPORT

AIR CLEANER

1шт.

20

1312460C1

ANGLE

REINFORCEMENT

1шт.
