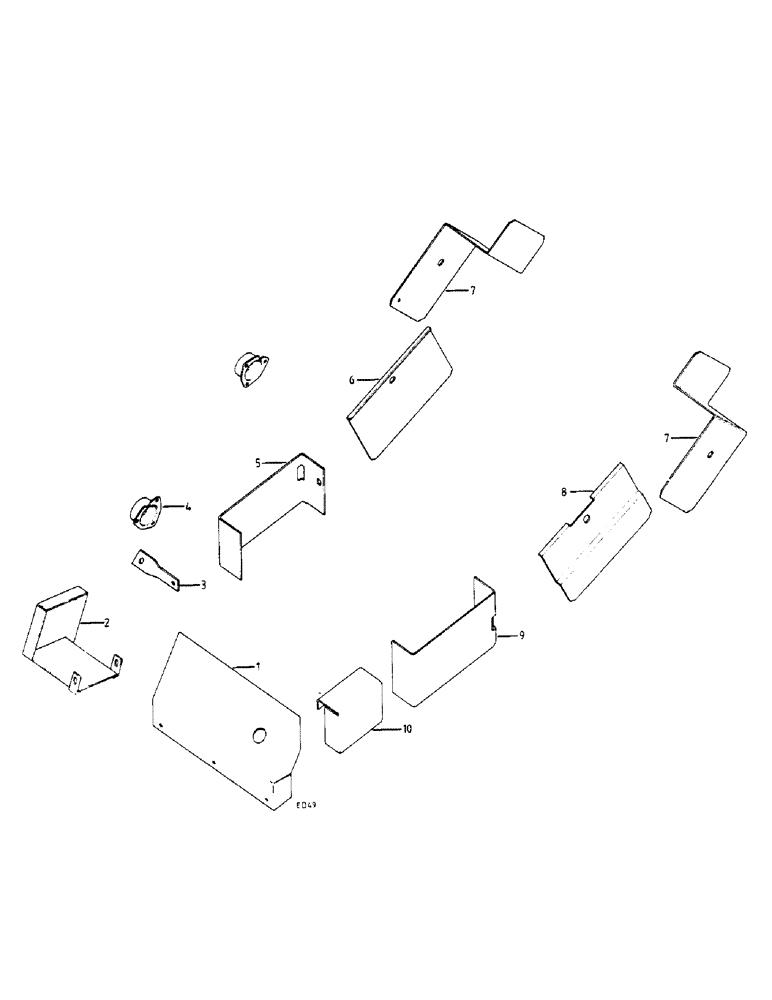

Запчасти Case IH 1460 (17-188) - VARIOUS SHIELDS, UK MODIFICATION, 810 HEADER Mounted Equipment

1

182844C1

GUARD ASSY.

SHIELD ASSY, RPM SENSOR

1шт.

2

3179821R1

GUARD ASSY.

SHIELD ASSY, SHAFT END

1шт.

30523R1

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

30282R1

WASHER,M10 x 20 x 2

1шт.

3164622R1

LOCK NUT

M10 HEX FLANGE LOCK

1шт.

3

NOT USED

1шт.

4

3159499R2

COVER

SHIELD, AUGER SHAFT END

2шт.

3176200R1

WASHER

M8.25 X 16 X 1.5 FLAT

6шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Hex Thi-Bloc

6шт.

934310R1

NUT,M8, Cl 8

6шт.

5

3179808R1

GUARD ASSY.

SHIELD ASSY, AUGER HANGER L.H.

1шт.

6

3179814R1

COVER

SLOT R.H. CENTRE

1шт.

7

3179817R1

COVER

SLOT L.H. AND R.H. REAR

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

2шт.

8

3179815R1

COVER

SLOT L.H. CENTRE

1шт.

9

3179816R1

COVER

SLOT L.H. FRONT

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

1шт.

10

3179806R1

COVER

SHAFT END

1шт.

1301359C1

SWITCH

NOT ILLUSTRATED

1шт.

1866277R1

ARMATURE

WIRING, NOT ILLUSTRATED

1шт.

306132C1

CABLE TIE,14.5" L

CABLE STRAP LOCK, 14 IN., NOT ILLUSTRATED

4шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Lock, Not Illustrated

3шт.

537024R1

CLIP

CABLE, NOT ILLUSTRATED

1шт.
