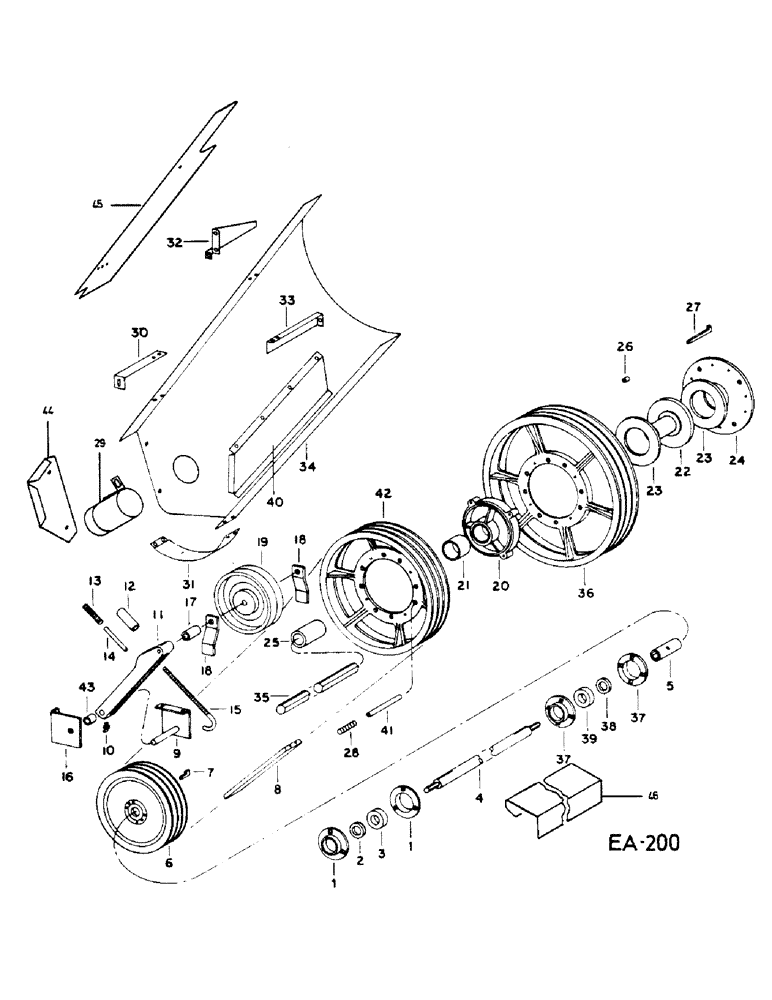

Запчасти Case IH 1460 (17-184) - FEEDER JACKSHAFT DRIVE Mounted Equipment

1

180955C1

FLANGED BEARING,0.375"

FEEDER JACKSHAFT BEARING L.H.

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 X 1 CRG TYPE 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

2

517645R11

COLLAR

W/SET SCREW BEARING LOCKING LH

1шт.

3

611583R91

BALL BEARING

FEEDER JACKSHAFT L.H.

1шт.

4

195560C1

SHAFT

FEEDER CROSS

1шт.

5

176537C2

SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L

FEEDER JACKSHAFT, FOR 810-820 HEADERS, FOR 810 HEADERS WITH REEL FORE AND AFT

1шт.

586591R1

COTTER PIN

1/8 QA

1шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

1/2 X 2.375 HD TYPE 5 - FOR 810-820 HEADERS - FOR 810 HEADERS WITH REEL FORE AND AFT

1шт.

6

176573C4

PULLEY

FEEDER JACKSHAFT DRIVEN - 13.5 IN. OD

1шт.

7

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 X 2-1/2 GIB

1шт.

8

1313095C1

V-BELT

FEEDER JACKSHAFT DRIVE - FOR 47 IN. FEEDER - 132 IN. OC

1шт.

9

182322C1

SUPPORT

IDLER

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

591715R1

WASHER

1.031 X 1.500 X .054

1шт.

10

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 DEG. SELF-TAP LUB

1шт.

11

1305142C1

ARM ASSY.

JACKSHAFT TIGHTENER

1шт.

12

176581C1

SPACER

ADJUSTING BOLT SPRING

1шт.

13

PO3A

SPRING

ADJUSTING BOLT

1шт.

14

176544C2

SPACER

ADJUSTING BOLT INNER

1шт.

495-11053

WASHER,1/2", SAE

1шт.

21883R1

WASHER

.531 X 1.750 X .090

1шт.

608081R1

WASHER

.656 X 1.750 X .090

1шт.

15

197410C1

BOLT,1/2" - 13 x 17 1/2", Carbon Steel

IDLER DRAW

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

16

182323C1

SUPPORT

IDLER

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

17

189708C1

SPACER

DRIVE IDLER

1шт.

18

197110C1

GUIDE

BELT

2шт.

19

176579C1

IDLER

DRIVE TIGHTENER - 8 IN. OD

1шт.

19

1319401C1

PULLEY

DRIVE TIGHTENER, OPTIONAL

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

131016R1

WASHER, .656 X 1.312 X .074

1шт.

19827R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

1шт.

20

1305220C91

HUB ASSY.

OUTER FRICTION CLUTCH, WITH 21

1шт.

21

610435C1

BUSHING,69.93mm ID x 82.65mm OD x 76.2mm L

OUTER FRICTION CLUTCH HUB

1шт.

22

1305154C1

HUB

FEED CONVEYOR SLIP CLUTCH

1шт.

23

181579C1

DISC

DISC, FRICTION CLUTCH

2шт.

24

185955C1

PLATE

FRICTION

1шт.

25

584608R1

SPACER

CLUTCH HUB

1шт.

609376R1

WASHER

1.781 X 2.500 X .105

1шт.

26

1305375C1

SPACER

DRIVE LUG

4шт.

27

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

2шт.

28

1305692C1

SPRING

SLIP CLUTCH

8шт.

29

3167781R1

GUARD

SHIELD ASSY, SHAFT END

1шт.

30523R1

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

30282R1

WASHER,M10 x 20 x 2

1шт.

3164622R1

LOCK NUT

M10 HEX THI-BLOC

1шт.

30

189450C1

SUPPORT

SHIELD UPPER FRONT

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

495-11053

WASHER,1/2", SAE

1шт.

31

189458C1

SUPPORT

SHIELD DRIVE

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

32

189452C1

SUPPORT

SHIELD UPPER REAR

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

1шт.

33

189454C1

SUPPORT

SHIELD LOWER REAR

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

34

1312761C1

GUARD

SHIELD ASSY, JACKSHAFT DRIVE, FOR 47 IN. FEEDER

1шт.

35

SHAFT, FEEDER CONVEYOR, SEE FEED CONVEYOR

1шт.

36

PULLEY, FEEDER DRIVEN, SEE FEEDER DRIVE

1шт.

37

663562R1

FLANGE

FEEDER JACKSHAFT BEARING R.H.

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

38

184648C1

COLLAR

W/SET SCREW BEARING LOCKING RH

1шт.

39

184647C91

BALL BEARING,34.92mm ID x 80mm OD x 21mm W

FEEDER JACKSHAFT R.H.

1шт.

40

1312762C1

SHIELD

JACKSHAFT BELT, FOR 47 IN. FEEDER

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

41

1305370C2

TUBE

SPACER, SLIP CLUTCH SPRING

8шт.

609376R1

WASHER

1.781 X 2.500 X .105

1шт.

142619H

WASHER

.406 X .750 X .105

1шт.

42

1305288C1

PULLEY

FEEDER JACKSHAFT DRIVE - 16.7 IN. OD

1шт.

24844R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

1шт.

25685R1

BOLT,3/8" x 6", Gr 8

3/8 X 6 PHC TYPE 8

1шт.

25522R1

NUT,3/8"-16, G8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

477589R1

WASHER

.406 X 1.500 X .105

1шт.

43

PO27260

SPACER,1" Pipe x 2"

IDLER SUPPORT PIN

1шт.

151670C1

SHIM

WASHER

1шт.

44

1866027R1

EXTENSION

DRIVE SHIELD

1шт.

3177082R1

SCREW

M8 X 12 FLANGE LOCK THI-BLOC

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Hex Thi-Bloc

2шт.

45

1866035R1

SHIELD

FEEDER JACKSHAFT DRIVE

1шт.

46

1131115C1

SHIELD ASSY, FEEDER JACKSHAFT

1шт.

1866016R1

SEAL

FEEDER SHIELD

1шт.
