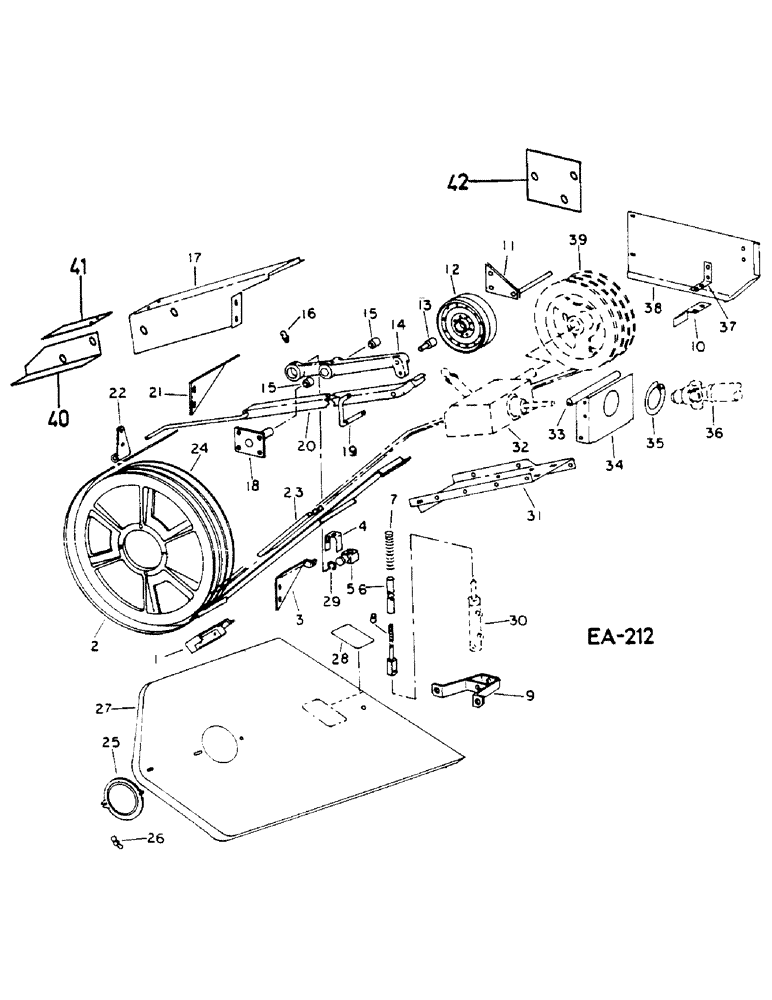

Запчасти Case IH 1460 (17-180) - FEEDER DRIVE Mounted Equipment

1

188043C1

SUPPORT ASSY.

BELT GUARD LOWER

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZND SLT-TRUSS-HD

1шт.

2

194380C1

GUARD ASSY.

FEEDER BELT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 SLT-TRUSS-HD

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 X 1-1/4 SLT-TRUSS-HD

1шт.

3

188045C2

SUPPORT ASSY.

BELT GUARD REAR

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

4

194357C2

CHANNEL

CLIP, DRIVE BELT TIGHTENER

1шт.

5

186890C1

PIVOT

FEEDER DRIVE ARM SPRING ROD

1шт.

23047R1

WASHER

1.53 X 2.5 X .06 ZND

1шт.

6

194356C1

TUBE

TIGHTENER SPRING ROD

1шт.

7

PO23

SPRING

TIGHTENER ROD

1шт.

8

194216C1

ROD

ASSY, FEEDER DRIVE TIGHTENER

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

121222

COTTER PIN,3/32" x 3/4"

1шт.

23304R1

CLEVIS PIN,3/8" x 1 9/16"

1шт.

460908R1

WASHER

.531 X 1.5 X .105 ZND

1шт.

9

194369C2

SUPPORT

CYLINDER

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

23948R1

HEADED PIN,3/8" x 3 1/4"

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

10

194383C3

BRACKET

SUPPORT, UPPER BELT GUIDE

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

1шт.

11

195109C1

ROD ASSY.

FEEDER DRIVE BELT TRAP

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

12

174757C1

PULLEY

FEEDER DRIVE FLAT IDLER - 8 IN. OD

1шт.

13

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

ASSY, IDLER ARM PULLEY

1шт.

14

192105C93

LEVER

ASSY, FEEDER DRIVE IDLER, WITH 12, 13, 15

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

1шт.

591715R1

WASHER

1.031 X 1.500 X .054

1шт.

15

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

FEEDER DRIVE IDLER ARM - USED WITH LUB FITTING

2шт.

15

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

FEEDER DRIVE IDLER ARM - USED WITHOUT LUB FITTING

1шт.

16

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

2шт.

17

1312750C1

COVER

FEEDER DRIVE BELT UPPER

1шт.

18

185414C1

SUPPORT ASSY.

FEEDER DRIVE IDLER PIVOT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

19

192111C1

ROD

FEEDER BELT RETAINER

1шт.

18481R1

COTTER PIN,3/16" x 1"

1шт.

20

194358C1

GUIDE

ASSY, FEEDER DRIVE BELT

1шт.

18481R1

COTTER PIN,3/16" x 1"

1шт.

21

192131C3

SUPPORT

BELT GUARD UPPER

1шт.

22

194364C2

HINGE

RETAINER PIVOT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

23

192738C1

BELT,22.225 mm W x 3814.70 mm L, 3, Ribs

Feeder drive, OC

1шт.

24

1305297C1

PULLEY

FEEDER DRIVEN - 22.56 IN. OD

1шт.

25

188315C1

DOOR

DRIVE BELT COVER ACCESS

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 X 1/2 SLT-TRUSS-HD

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 X 1/2 ZND HEX-HD MACH

1шт.

86625061

NUT,1/4"-20, GB

1шт.

26

935735R1

WING NUT

BELT COVER ACCESS DOOR WING

1шт.

27

1312353C91

GUARD ASSY.

SHIELD ASSY, FEEDER DRIVE BELT, WITH 28

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

28

188199C1

PRODUCT GRAPHIC

CAUTION

1шт.

29

27885R1

SNAP RING,#150, 1.408", Ext

SPRING ROD PIVOT RETAINING

1шт.

30

CYLINDER ASSY, SEE FEEDER AND SEPARATOR CLUTCH CYLINDER

1шт.

31

194521C1

SUPPORT

GEAR CASE

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

178373R1

WASHER

.531 X 1.000 X .056

1шт.

32

CASE, FEEDER AND CLEANING FAN DRIVE GEAR - SEE FEEDER DRIVE FORWARD GEAR CASE

1шт.

33

191497C1

SEALING STRIP

GEAR CASE SUPPORT - 10.6 IN.

1шт.

34

191399C1

SUPPORT

GEAR CASE REAR

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

35

191496C1

SEALING STRIP

GEAR CASE SUPPORT - 11.8 IN.

1шт.

36

JOINT ASSY, UNIVERSAL DRIVE, SEE SEPARATOR DRIVE

1шт.

37

186081C1

ANGLE

FEEDER DRIVE BELT UPPER SHIELD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

38

1311162C1

SUPPORT

FEEDER DRIVE BELT UPPER

1шт.

39

PULLEY, FEEDER DRIVE - SEE BELT DRIVE R.H. SIDE

1шт.

40

1311119C1

EXTENSION

DRIVE BELT COVER - UPPER

1шт.

41

1311120C1

SEAL

PROTECTION

1шт.

42

1866015R1

SHIELD

FEEDER DRIVE BELT

1шт.

3177082R1

SCREW

BOLT, M8 X 12 SLT-TRUSS-HD M/C

3шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Hex Thi-Bloc

3шт.
