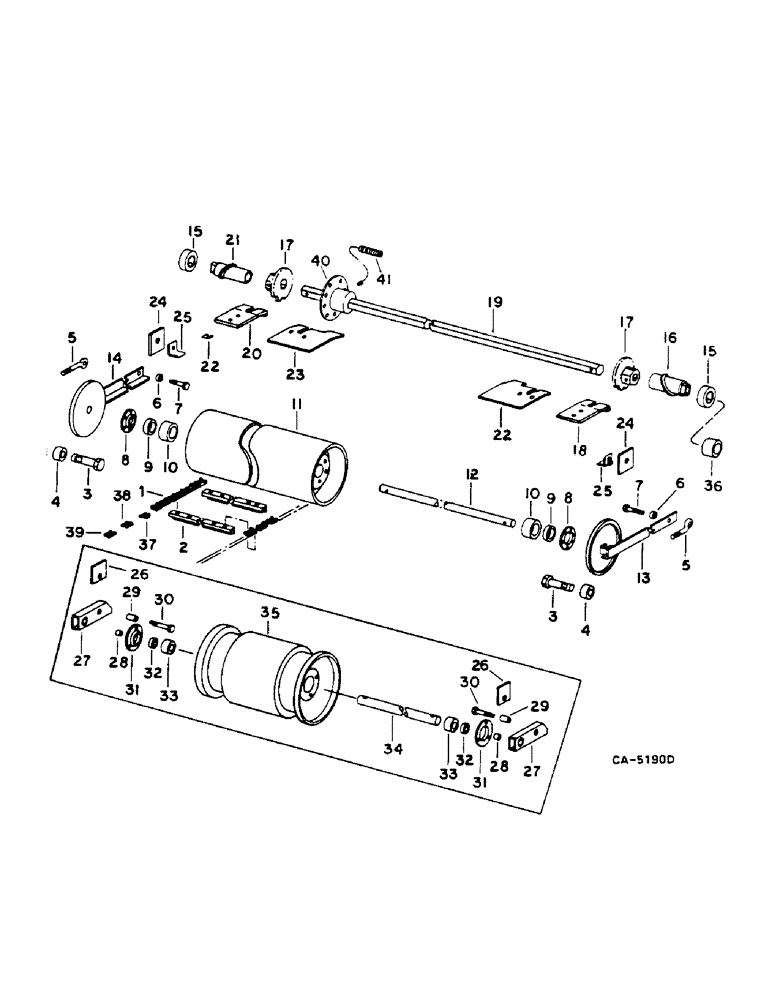

Запчасти Case IH 1460 (17-176) - FEEDER CONVEYOR Mounted Equipment

1

1319201C91

CHAIN (CE)

FEED CONVEYOR - WITH 2 - FOR 47 IN. FEEDER - FOR 825 HEADER

1шт.

1

1319206C91

CHAIN (CE)

FEED CONVEYOR - WITH 2 - FOR 47 IN. FEEDER - FOR 810-820 HEADERS - FOR 810 HEADER WITH REEL FORE AND AFT

1шт.

2

1313190C1

SLAT

SLAT, FEED CONVEYOR

15шт.

104281

RIVET

15шт.

3

189709C1

BOLT,Hex, 1/2" - 13 x 3"

CHAIN TIGHTENER CLAMP

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

22770R1

WASHER

.531 X 1.500 X .164

1шт.

4

197211C1

SPACER

FEEDER DRUM STOP

2шт.

5

176508C1

BOLT,5/8" - 11 x 228.60mm

FEED CONVEYOR TIGHTENER

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

6

558506R1

SPACER

SUPPORT ARM BOLT, WITHOUT STONE TRAP

2шт.

7

178005C1

BOLT,Hex, 5/8" - 11 x 3", Gr 5

DRUM SUPPORT ARM, WITHOUT STONE TRAP

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

8

165360C1

FLANGED BEARING,95.2 mm OD x 8.74 mm

DRUM BEARING, WITHOUT STONE TRAP

2шт.

231-1447

NUT,7/16"-14, GB

1шт.

9

455102R21

COLLAR

W/SET SCREW FEED CONV.DRUM BRG, WITHOUT STONE TRAP

2шт.

10

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

FEED CONVEYOR DRUM, WITHOUT STONE TRAP

2шт.

11

175975C1

DRUM HUB

ASSY, FEED CONVEYOR, WITHOUT STONE TRAP

1шт.

12

175982C2

SHAFT

FEED CONVEYOR DRUM, WITHOUT STONE TRAP

1шт.

20704R1

WASHER

1.031 X 1.500 X .105

1шт.

13

1305156C1

ARM ASSY.

DRUM SUPPORT L.H., WITHOUT STONE TRAP

1шт.

231-1446

NUT,3/8" - 16, Gr 5

1шт.

23458R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

14

1305157C1

ARM

ASSY, DRUM SUPPORT R.H., WITHOUT STONE TRAP

1шт.

231-1446

NUT,3/8" - 16, Gr 5

1шт.

23458R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

15

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

ASSY, FEED CONVEYOR SHAFT

2шт.

16

178780C1

SPACER

ASSY, CONVEYOR SPROCKET L.H.

1шт.

17

197556C1

SPROCKET ASSY.

FEED CONVEYOR CHAIN - 9T

2шт.

197643C1

SET SCREW

1/2-13 X 1/2 HEX-SOC-CUP POINT

1шт.

18

NOT USED

1шт.

19

197277C2

SHAFT

FEED CONVEYOR

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

1шт.

609376R1

WASHER

1.781 X 2.500 X .105

1шт.

20705R1

WASHER

1.781 X 2.500 X .054

1шт.

20

NOT USED

1шт.

21

178781C1

SPACER

ASSY, CONVEYOR SPROCKET R.H.

1шт.

22

185818C1

STRIPPER ASSY.

L.H.

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

23

185819C1

STRIPPER ASSY.

R.H.

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

24

187347C1

PLATE

BAR, SUPPORT STOP, WITHOUT STONE TRAP

2шт.

25

187364C1

ANGLE

ASSY, DRUM ARM UPPER STOP, WITHOUT STONE TRAP

2шт.

25

1305143C1

X

ANGLE ASSY, DRUM ARM UPPER STOP, WITH STONE TRAP

2шт.

598819R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

22810R1

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

1шт.

26

187225C1

BAR

UPPER STOP ADJUSTING, WITH STONE TRAP

2шт.

27

187367C1

ARM ASSY.

DRUM STOP, WITH STONE TRAP

2шт.

28

11449P

SPACER,1 1/4" Pipe x 1/2"

CONVEYOR DRUM BEARING, WITH STONE TRAP

2шт.

29

187217C1

SPACER,7/8" Tube x 1 13/16"

DRUM ARM PIVOT, WITH STONE TRAP

2шт.

30

187218C1

BOLT

DRUM SUPPORT ARM, WITH STONE TRAP

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

608701R1

WASHER

.656 X 1.250 X .054

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

32

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

DRUM BEARING, WITH STONE TRAP

2шт.

231-1446

NUT,3/8" - 16, Gr 5

1шт.

33

557995R11

COLLAR

W/SET SCREW, FEED CONVEYOR DRUM BEARING, WITH STONE TRAP

2шт.

34

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

FEED CONVEYOR DRUM, WITH STONE TRAP

2шт.

35

187207C2

SHAFT,31.75mm OD x 909.3mm L

FEED DRUM, WITH STONE TRAP

1шт.

231-1446

NUT,3/8" - 16, Gr 5

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

36

187195C2

DRUM

ASSY, FEED CONVEYOR, WITH STONE TRAP

1шт.

37

162172C1

SPACER

FEEDER PIVOT SHAFT L.H.

1шт.

609376R1

WASHER

1.781 X 2.500 X .105

1шт.

38

182090C1

LINK,Chain, 41.4mm Pitch

CONVEYOR ATTACHING

1шт.

39

182094C1

LINK,Chain, Link, 41.4mm

CONVEYOR CONNECTING

1шт.

40

182127C1

LINK,41.4mm Pitch

CONVEYOR OFFSET

1шт.

41

1305665C1

DISC

CLUTCH DISK FLANGE ASSY, CONVERTOR PICKUP

1шт.

197643C1

SET SCREW

1/2-13 X 1/2 HEX-SOC-CUP

1шт.

42

1301241C1

SENSOR

CONVERTER, FEEDER PICKUP

1шт.

107827

NUT,Stamped, 3/4"-16

3/4 C-Z STAMPED

1шт.
