(17-174) - FEEDER ADAPTER, FOR MOUNTING FRENCH 825 HEADER

Запчасти Case IH 1460 (17-174) - FEEDER ADAPTER, FOR MOUNTING FRENCH 825 HEADER Mounted Equipment

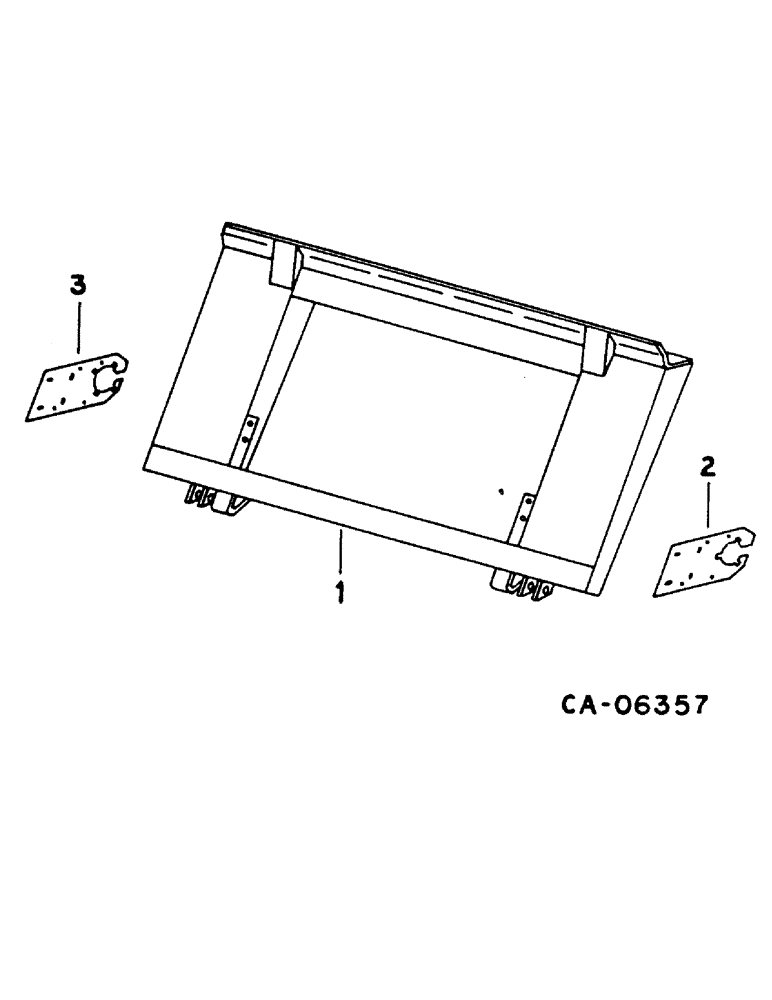

Схема запчастей Case IH 1460 - (17-174) - FEEDER ADAPTER, FOR MOUNTING FRENCH 825 HEADER Mounted Equipment
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1303265C3

ADAPTER

ASSY, FEEDER

1шт.

2

175915C2

SUPPORT

JACKSHAFT L.H. BEARING

1шт.

18707C1

BOLT

1/2 X 1 CRG TYPE 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

3

187478C2

SUPPORT

JACKSHAFT R.H. BEARING

1шт.

18707C1

BOLT

1/2 X 1 CRG TYPE 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.
