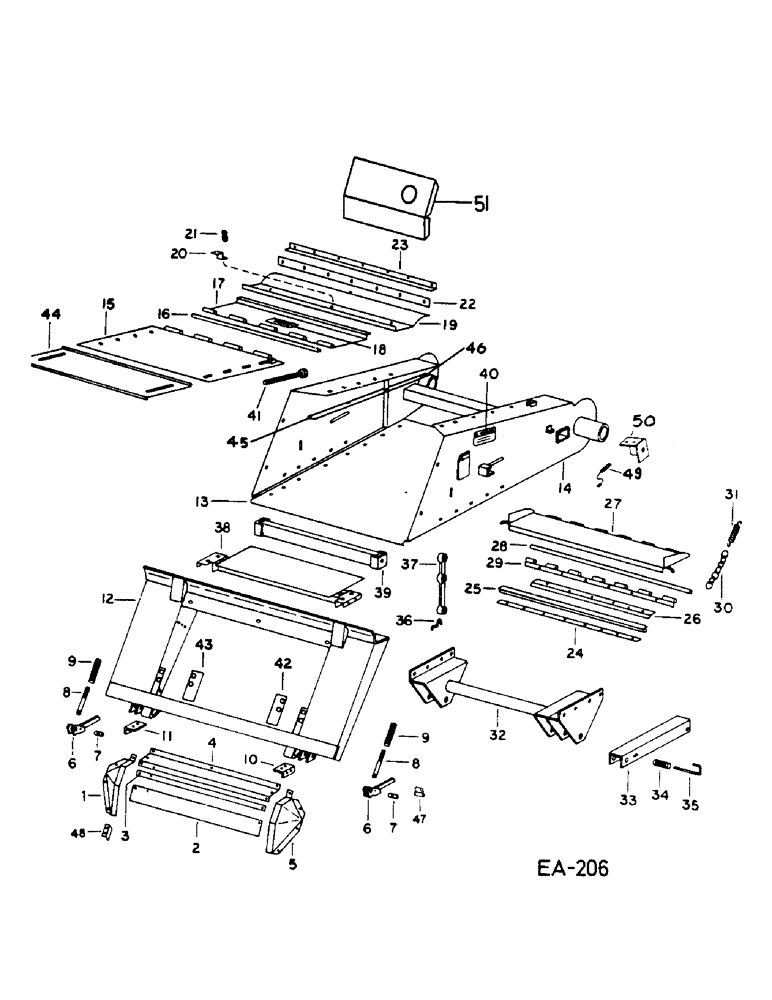

Запчасти Case IH 1460 (17-167) - FEEDER Mounted Equipment

1

175909C1

DEFLECTOR

ASSY, FEEDER FRONT R.H., FOR 825 HEADER

1шт.

1

1308267C2

DEFLECTOR

ASSY, FEEDER FRONT R.H. - FOR 810-820 HEADERS - FOR 810 HEADER WITH REEL FORE AND AFT

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 SLT-TRUSS-HD

1шт.

2

175955C1

COVER

FRONT LOWER

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

1шт.

9412083

NUT,5/16"-18, GB

1шт.

3

175952C1

BAR

STRAP, FRONT COVER BACKING

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

1шт.

9412083

NUT,5/16"-18, GB

1шт.

4

175917C1

COVER

FEEDER ADAPTER

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZND SLT-TRUSS-HD

1шт.

5

175908C1

DEFLECTOR

ASSY, FEEDER FRONT L.H., FOR 825 HEADER

1шт.

5

1308266C2

DEFLECTOR

ASSY, FEEDER FRONT L.H. - FOR 810-825 HEADERS - FOR 810 HEADERS WITH REEL FORE AND AFT

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 SLT-TRUSS-HD

1шт.

6

179024C1

HINGE

HANDLE ASSY, FEEDER LOCKING LATCH

2шт.

7

177141C1

PIN,15.88mm OD x 41mm L

LOCKING LATCH PIVOT

2шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

1шт.

21471R1

WASHER

.656 X 1.000 X .105

1шт.

8

177138C1

ROD

LOCKING LATCH

2шт.

231-1445

NUT,5/16"-18, GB

P/T

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

1шт.

120393

BEARING WASHER,5/16", SAE

1шт.

9

367833R1

SPRING

LOCKING LATCH ROD

2шт.

10

175913C1

ANGLE

FEEDER ADAPTER L.H., WITHOUT STONE TRAP

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

495-11053

WASHER,1/2", SAE

1шт.

11

175914C1

ANGLE

FEEDER ADAPTER R.H., WITHOUT STONE TRAP

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

495-11053

WASHER,1/2", SAE

1шт.

12

1308249C2

ADAPTER

ASSY, FEEDER - FOR 810-825 HEADERS - FOR 810 HEADER WITH REEL FORE AND AFT

1шт.

13

185789C2

SHEET

FEEDER BOTTOM, FOR 47 IN. FEEDER

1шт.

13

185820C1

SHEET

BOTTOM ASSY, FEEDER - PERFORATED - FOR 47 IN. FEEDER

1шт.

13

185790C1

SHEET

FEEDER BOTTOM - FOR 54.5 IN. FEEDER

1шт.

13

1313970C1

PANEL

BOTTOM ASSY, FEEDER - PERFORATED - FOR 54.5 IN. FEEDER

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

1шт.

14

1312360C91

HOUSING ASSY.

FEEDER - FOR 47 IN. FEEDER, WITH 40, 45, 56

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 X 1 CRG TYPE 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

9413969

NUT,5/8"-11, GB

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

15

185837C1

SUPPORT ASSY.

FEEDER TOP, FOR 47 IN. FEEDER

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

485734C1

BOLT

1/2 X 1-1/4 ZND SQ-NK CRG TYPE 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

25710R1

WASHER

.531 X 1.062 X .134 HDN

1шт.

16

175906C1

ROD

TOP DOOR HINGE

1шт.

17

1312087C91

DOOR

FEEDER TOP, WITH 18

1шт.

18

1312071C1

PRODUCT GRAPHIC

DANGER INSTR.

1шт.

19

197426C3

COVER

FEEDER TOP

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

20

184645C1

CLIP

TOP DOOR LATCH

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120394

WASHER,3/8", SAE

1шт.

21

7422T

SPRING

TOP DOOR LATCH

1шт.

22

634204R1

SEAL

FEEDER TOP

1шт.

23

197418C1

SUPPORT

FEEDER TOP SEAL

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

24

197429C1

SEALING STRIP

LOWER DOOR SEAL

1шт.

155945

SCREW,Cross Flat Hd, #10 - 24 x 3/4"

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

25

197428C2

DOOR SEAL

FEEDER LOWER DOOR

1шт.

26

197427C1

GUIDE

STRAP, LOWER DOOR SEAL SPACER

1шт.

27

193362C1

FLAP

DOOR ASSY, FEEDER BOTTOM

1шт.

28

159012C1

ROD

FEEDER BOTTOM DOOR HINGE

1шт.

29

193364C1

HINGE

FEED PLATE

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZND SLT-TRUSS-HD

1шт.

30

167570C1

CHAIN,203.2mm L

LOWER DOOR LATCH

2шт.

31

622016R1

SPRING

LOWER DOOR LATCH

2шт.

32

197382C1

SUPPORT ASSY.

FEEDER LIFT, FOR 47 IN. FEEDER

1шт.

32

187102C1

SUPPORT

FEEDER LIFT, FOR 54.5 IN. FEEDER

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 X 1-1/4 SLT-TRUSS-HD

1шт.

495-11053

WASHER,1/2", SAE

1шт.

33

197554C2

CHANNEL

LIFT CYLINDER LOCK

1шт.

23948R1

HEADED PIN,3/8" x 3 1/4"

1шт.

586591R1

COTTER PIN

1/8 QA

1шт.

34

M296

SPRING

LIFT LOCKING ROD

1шт.

35

197849C1

ROD

CYLIINDER LIFT LOCK

1шт.

21858R1

COTTER PIN,1/8" x 1/2"

1шт.

120393

BEARING WASHER,5/16", SAE

1шт.

36

179207C1

HOOK

SPARE PART REEL LIFT HOSE TIE DOWN

1шт.

37

179206C1

STRAP

REEL LIFT HOSE TIE DOWN

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

1шт.

455367

SPARE PART Hex Hd, #10-24 x 1 1/2"

1шт.

22237R1

WASHER

.203 X .750 X .054

1шт.

38

187187C2

SUPPORT ASSY.

FEEDER BOTTOM, WITH STONE TRAP

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

495-11053

WASHER,1/2", SAE

1шт.

39

187192C1

SUPPORT ASSY.

FEEDER BOTTOM REAR, WITH STONE TRAP

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

40

1312076C1

PRODUCT GRAPHIC

DANGER

2шт.

41

185836C1

BOLT,Hex, 5/8" - 11 x 9"

HEADER LEVELING ADJUSTING

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

42

NOT USED

1шт.

43

NOT USED

1шт.

44

182317C1

COVER

FEEDER TOP FRONT

1шт.

45

182032C2

BAR

FEEDER UPPER, FOR 47 IN. FEEDER

2шт.

45

185030C2

SUPPORT ASSY.

BAR, FEEDER UPPER, FOR 54.5 IN. FEEDER

2шт.

46

182035C1

SUPPORT

FEEDER LOWER

2шт.

47

407171R1

LOCK PIN

LATCH LOCKING

2шт.

48

1308306C1

DEFLECTOR

ADAPTER LOWER - FOR 810-820 HEADERS - FOR 810 HEADER WITH REEL FORE AND AFT

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

49

CONVERTER, RELUCTANCE PICKUP, SEE FEED CONVEYOR

1шт.

50

1307468C1

SPRING

SUPPORT ASSY, CONVERTOR MOUNTING

1шт.

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

2шт.

51

182844C1

GUARD ASSY.

SHIELD ASSY, ROTOR DRIVE SPROCKET

1шт.
