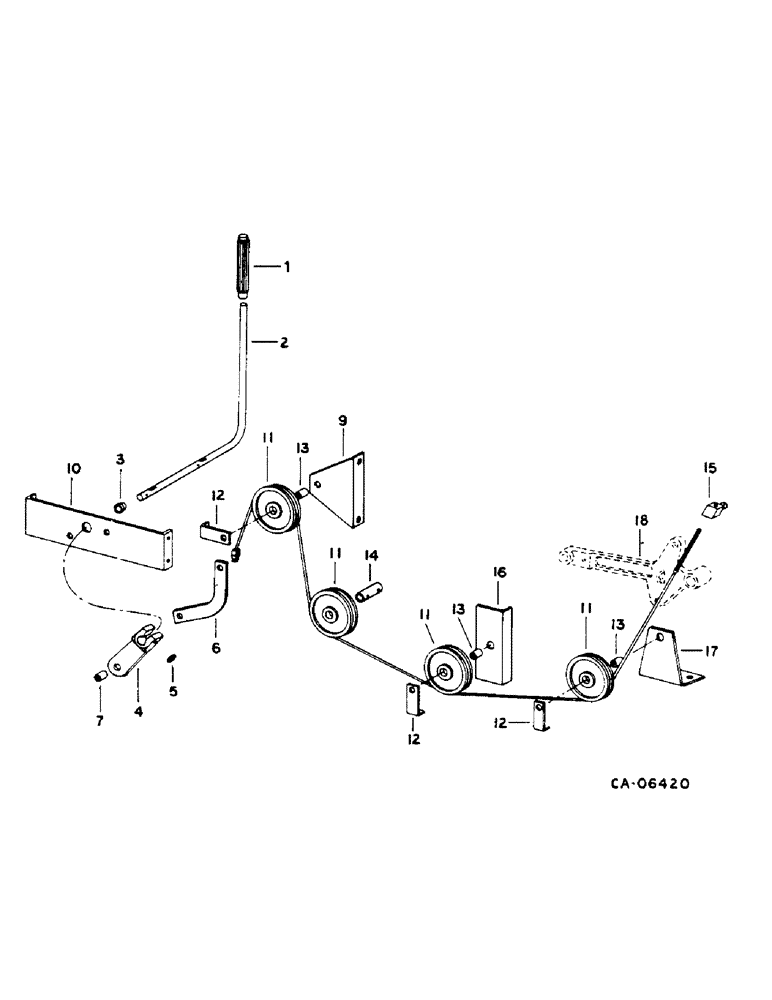

Запчасти Case IH 1460 (17-165) - GRAIN TANK UNLOADER CONTROL Mounted Equipment
№
Артикул
Название
Примечание
Количество
1
193194C1
GRIP
UNLOADER CONTROL LEVER
1шт.
2
193196C1
ROD
UNLOADER CONTROL
1шт.
21830R1
LOCK PIN,3/16" x 1 1/4", Slotted
1шт.
3
193201C1
BUSHING
UNLOADER
2шт.
4
161650C2
ARM
CONTROL
1шт.
454467
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8
1шт.
21333R1
NUT,3/8"-16, G8
1шт.
366862C1
LOCK WASHER,3/8"
1шт.
5
18465D
WASHER
CONTROL ARM
1шт.
6
195549C1
LINK
CONTROL
1шт.
20803R1
WASHER
.406 X 1.000 X .105
1шт.
7
27251K
SPACER,5/8" Tube x 7/16"
.407 ID X .625 X .438
1шт.
454467
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
1шт.
8
195550C1
CABLE
UNLOADER CONTROL
1шт.
120368
NUT,5/16"-24, G5
1шт.
24660R1
CLEVIS PIN,5/16" x .719"
1шт.
121222
COTTER PIN,3/32" x 3/4"
1шт.
9
195551C1
SUPPORT
PULLEY
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 X 3/4 ZNP SLT-TRUSS-HD
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
1шт.
10
195050C1
SUPPORT
CHANNEL, CONTROL LEVER RIGHT SUPPORT
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 X 3/4 ZNP SLT-TRUSS-HD
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
1шт.
165420C1
BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
1шт.
11
193208C1
PULLEY
UNLOADER CONTROL CABLE - 2.5 IN. OD
4шт.
12
193209C1
CLIP
UNLOADER CONTROL CABLE PULLEY
3шт.
13
159716C1
SPACER,3/4" Tube x 5/8"
.532 ID X .75 OD X .562
3шт.
18496R1
BOLT,Hex, 1/2"-13 x 1 1/2", G2
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1шт.
178373
WASHER, .531 X 1.000 X .056
1шт.
14
195553C1
PIN
CABLE PULLEY
1шт.
151446C1
SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"
5/16 X 1-1/4 SLT-TRUSS-HD
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
1шт.
15
194893C1
PIVOT
UNLOADER CONTROL CABLE REAR
1шт.
18481R1
COTTER PIN,3/16" x 1"
1шт.
495-11053
WASHER,1/2", SAE
1шт.
16
193207C1
ANGLE
CABLE GUIDE
1шт.
17
193795C1
SUPPORT
REAR PULLEY
1шт.
18
ARM ASSY, UNLOADER BELT TIGHTENER - SEE GRAIN TANK UNLOADER DRIVE
1шт.
Выбрано товаров: 41
