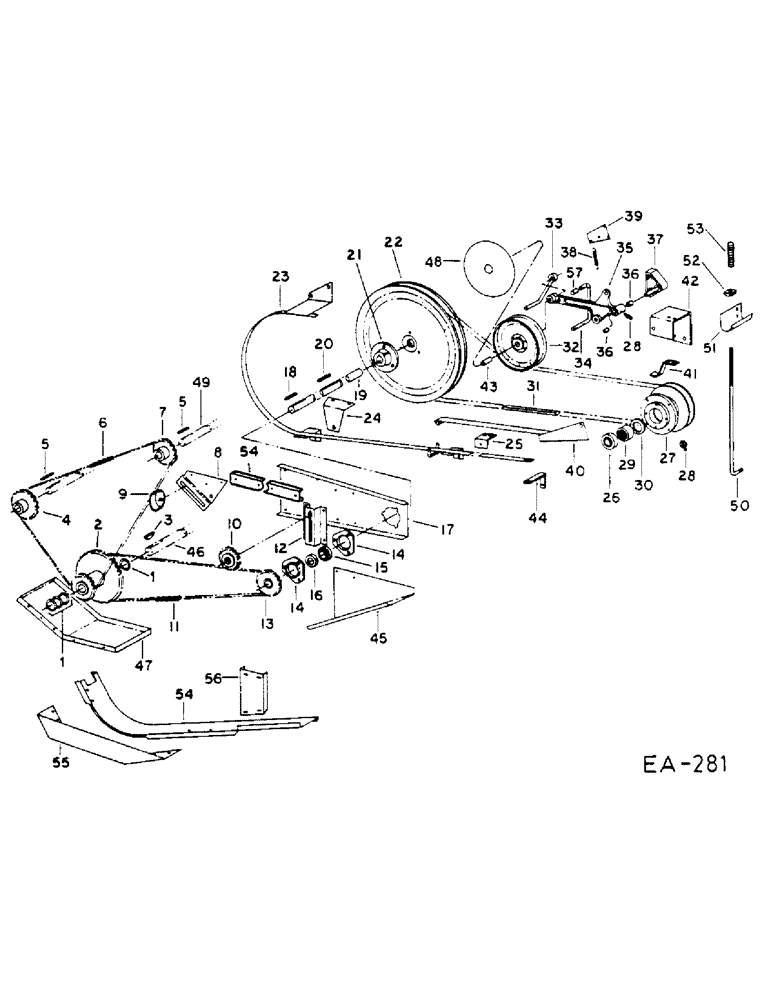

Запчасти Case IH 1460 (17-160) - GRAIN TANK UNLOADER DRIVE Mounted Equipment

1

162679C1

WASHER

WASHER, 1.40 X 2.25 X .06 HARDENED

4шт.

1

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

1.40 X 2.25 X .12 HARDENED

1шт.

2

192511C1

SPROCKET ASSY.

UNLOADER DRIVE - 43T AND 57T

1шт.

3

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

4

192922C1

SPROCKET

FRONT AUGER DRIVEN - 43T

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

1шт.

591715R1

WASHER

1.031 X 1.500 X .054

1шт.

20704R1

WASHER

1.031 X 1.500 X .105

1шт.

5

Q53

KEY,1/4" Sq x 1", Par

2шт.

6

CHAIN ASSY, GRAIN TANK AUGER DRIVE - 157 LINKS FROM BULK LENGTH AND ONE CONNECTING LINK 1301D

1шт.

1790D

CHAIN (AG)

BULK LENGTH 10 FT

1шт.

7

192925C1

SPROCKET

REAR AUGER DRIVEN - 37T

1шт.

8

193799C1

SUPPORT

IDLER SUPPORT

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

9

936878R1

BLOCK

FRONT AUGER DRIVE TIGHTENER

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

10

565442R91

SPROCKET

VERTICAL AUGER CHAIN TIGHTENER - 17T-

1шт.

598815R1

CARRIAGE BOLT

BOLT, 1/2 X 2-1/2 ZND SQ-NK CRG

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

25710R1

WASHER

.531 X 1.062 X .134 ZND

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

1шт.

11

CHAIN ASSY, VERTICAL AUGER DRIVE - 133 LINKS FROM BULK LENGTH AND ONE CONNECTING LINK 1310D

1шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

BULK LENGTH 10 FT

1шт.

12

192901C1

SUPPORT

VERTICAL AUGER DRIVE

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

13

192199C2

SPROCKET ASSY.

REAR AUGER DRIVE - 33T

1шт.

14

571425R1

FLANGED BEARING

UNLOADER JACKSHAFT BEARING

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

15

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

UNLOADER JACKSHAFT

2шт.

16

557115R11

COLLAR

W/SET SCREW JACKSHAFT BEARING LOCKING

2шт.

17

192899C2

SUPPORT

JACKSHAFT OUTER

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

1шт.

18

586879R1

KEY

5/16 X 5/16 X 2.0 SQ PARALLEL

1шт.

19

192895C1

SHAFT

VERTICAL AUGER

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

1шт.

21716R1

WASHER

1.16 X 1.75 X .06 ZND

1шт.

478258R1

WASHER

1.16 X 1.75 X 12 ZND

1шт.

20

457400R1

KEY,5/16" Sq x 1 3/4", Par

5/16 X 5/16 X 1.75 SQ PARALLEL

1шт.

21

192882C1

HUB

JACKSHAFT DRIVEN PULLEY

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

22

192967C1

PULLEY ASSY.

UNLOADER JACKSHAFT DRIVEN - 18.6 IN. OD

1шт.

104233

SPARE PART 3/16" x 1/4"

1шт.

23

192867C1

GUIDE

ASSY, UNLOADER BELT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

24

192870C1

SUPPORT

BELT GUIDE LOWER FRONT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 X 1-1/4 SLT-TRUSS-HD

1шт.

25

193693C1

SUPPORT

BELT GUIDE CENTRE

1шт.

26

658089R91

BALL BEARING,30mm ID x 62mm OD x 16mm W

PUMP DRIVE PULLEY

1шт.

27

192945C91

PULLEY ASSY.

AUXILIARY PUMP DRIVE, WITH 26, 29, 30

1шт.

28

87414

LUBE NIPPLE,1/4" - 28

1шт.

29

191213C91

NEEDLE BEARING,41.275 mm ID x 50.812 mm OD x 25.4 mm

PUMP DRIVE PULLEY REAR

1шт.

30

466176R92

SEAL

REAR PULLEY BEARING

1шт.

31

191290C1

V-BELT,22.32 mm W x 3409.89 mm L

Unloader jackshaft drive, OC

1шт.

32

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

UNLOADER BELT TIGHTENER - 8.75 IN. OD

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

21471R1

WASHER

.656 X 1.000 X .105

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

33

194894C1

ROD

UNLOADER BELT UPPER

1шт.

34

193820C1

ROD

UNLOADER BELT UPPER

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

142619H

WASHER

.406 X .750 X .105

1шт.

35

185059C92

ARM ASSY.

UNLOADER BELT TIGHTENER, WITH 36 - 53

1шт.

36

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

UNLOADER BELT TIGHTENER ARM

2шт.

37

191464C1

SUPPORT

UNLOADER TIGHTENER ARM

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 X 1-1/4 SLT- TRUSS-HD

1шт.

366112R1

WASHER

.781 X 1.250 X .105

1шт.

38

193716C1

SUPPORT ASSY.

UPPER BELT GUIDE

1шт.

536051C1

NUT, 1/2 ZND NYLON INSERT HEX

1шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1шт.

39

193627C1

SUPPORT

UNLOADER BELT TRAP

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

40

194599C1

SUPPORT

CHANNEL, UPPER BELT GUIDE INNER

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

41

568005R1

SPACER,7/8" Tube x 1 3/8"

BELT TIGHTENER SHIELD

1шт.

42

195392C1

ANGLE

BELT GUIDE LOWER REAR

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

43

SHAFT, HORIZONTAL AUGER GEAR CASE - SEE GRAIN TANK UNLOADER LOWER DRIVE

1шт.

44

186483C1

GUARD ASSY.

SHIELD ASSY, UNLOADER BELT TIGHTENER PULLEY

1шт.

45

AUGER ASSY, GRAIN TANK BOTTOM - SEE GRAIN TANK BOTTOM AUGER

2шт.

46

185061C1

ROD

UNLOADER BELT TIGHTENER

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

18481R1

COTTER PIN,3/16" x 1"

1шт.

20601R1

WASHER

.531 X 1.250 X .105

1шт.

47

185062C1

SUPPORT

UNLOADER ARM SPRING

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

48

194562C1

PIVOT, BELT TIGHTENER ROD

1шт.

49

381745R1

SPRING, UNLOADER TIGHTENER ARM

1шт.

50

1302434C1

SHIELD

UNLOADER DRIVE

1шт.

51

183351C1

PLATE

UNLOADER SIDE

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

52

1302435C1

SUPPORT

UNLOADER SHIELD

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

53

1302225C1

BUSHING

UNLOADER BELT TIGHTENER ARM

1шт.

54

1319469C1

CHANNEL

UNLOADER JACKSHAFT SUPPORT

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

4шт.
