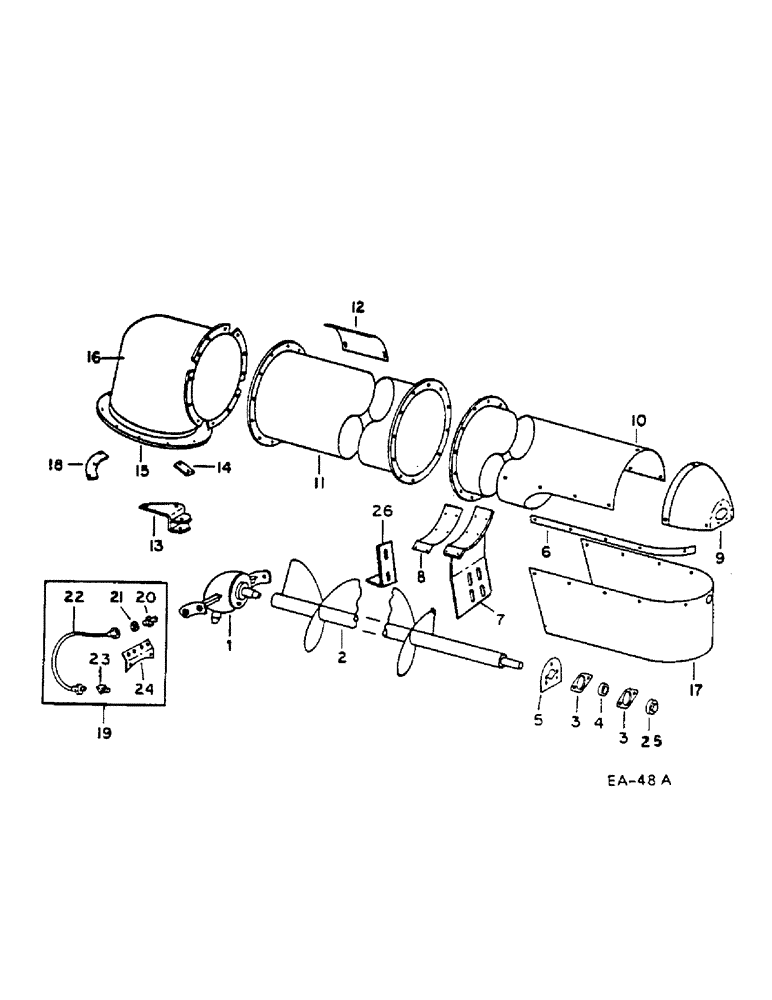

Запчасти Case IH 1460 (17-155) - GRAIN TANK UNLOADER, UPPER Mounted Equipment

1

178189C91

CASE ASSY.

UNLOADER UPPER GEARS - SEE UNLOADER UPPER GEAR CASE ASSY

1шт.

2

192845C2

AUGER

ASSY, UNLOADER HORIZONTAL - STANDARD

1шт.

2

191107C2

AUGER

ASSY, UNLOADER HORIZONTAL - LONG - USED WITH 20 FT, 22.5 FT OR 24 FT HEADER - USED WITH 874 CORN HEAD

1шт.

3

571424R1

FLANGE

UNLOADER AUGER OUTER BRG - 3 BOLT

2шт.

3

612031R1

FLANGED BEARING

UNLOADER AUGER OUTER BRG - 2 BOLT

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

1шт.

4

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

UNLOADER AUGER OUTER BALL

1шт.

5

182838C1

SUPPORT

CAP OUTER BEARING - USED WITH 2 BOLT BEARING

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

6

178168C1

STRIP

REAR TUBE DOWNSPOUT

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 SLT-TRUSS-HD

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 X 1-1/4 SLT-TRUSS-HD

1шт.

7

195188C1

SADDLE ASSY.

SPARE PART UNLOADER TUBE

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

477589R1

WASHER

.406 X 1.500 X .105

1шт.

8

195191C1

STRIP

UNLOADER TUBE SADDLE

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1шт.

9

178159C1

CAP

UNLOADER REAR TUBE

1шт.

9

182837C1

SUPPORT TUBE

UNLOADER REAR TUBE - WITH 5 - USED WITH BOLT BEARING

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

10

195342C1

TUBE

HORIZONTAL AUGER REAR - NOT PERFORATED

1шт.

10

195344C1

TUBE

ASSY, HORIZONTAL AUGER REAR - PERFORATED

1шт.

11

192838C1

TUBE

ASSY, HORIZONTAL AUGER FRONT - STANDARD

1шт.

11

192089C1

UNLOADING TUBE

ASSY, HORIZONTAL AUGER FRONT - LONG - USED WITH 20 FT, 22.5 FT OR 24 FT HEADER - USED WITH 874 CORN HEAD

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 SLT-TRUSS-HD

1шт.

12

178158C1

PLATE

UNLOADER FRONT TUBE INSPECTION

1шт.

13

191121C2

SUPPORT ASSY.

CYLINDER FRONT

1шт.

21901R1

BOLT,Hex, 7/16" - 14 x 2", Gr 8

1шт.

9418646

NUT,7/16"-14, G8

1шт.

366863C1

LOCK WASHER

7/16 RIB

1шт.

25960R1

JAM NUT,Jam, 7/16"-14, G8

1шт.

14

193472C1

BAR

UNLOADER TUBE KEEPER

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

15

193418C2

FLANGE

UPPER TUBE ELBOW

1шт.

16

193417C92

ELBOW

ASSY, UNLOADER UPPER TUBE, WITH 15

1шт.

17

186677C1

SPOUT, DISCHARGE

SPOUT UNLOADER REAR TUBE DOWN

1шт.

18

186657C1

SUPPORT

FRONT KEEPER

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

19

LUBRICATOR, BANK - WITH 32 - 26

1шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

21

581873R1

TUBE NUT,4.8 mm Length

LUB HOSE

4шт.

22

937779R91

HOSE,1/8" ID x 22" L

FLEXIBLE HOSE, , Lube 0.14" ID x 22.00"

2шт.

22

937781R91

HOSE

LUB 27 IN.

1шт.

22

937782R91

HOSE

LUB 31 IN.

1шт.

23

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

FITTING, 1/4-28 SAE 45 DEG.

1шт.

24

1312222C1

SUPPORT

LUB FITTING

1шт.

25

564853R11

COLLAR

AUGER OUTER BEARING

1шт.

26

1319222R1

SUPPORT, ANGLED - SADDLE

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.
