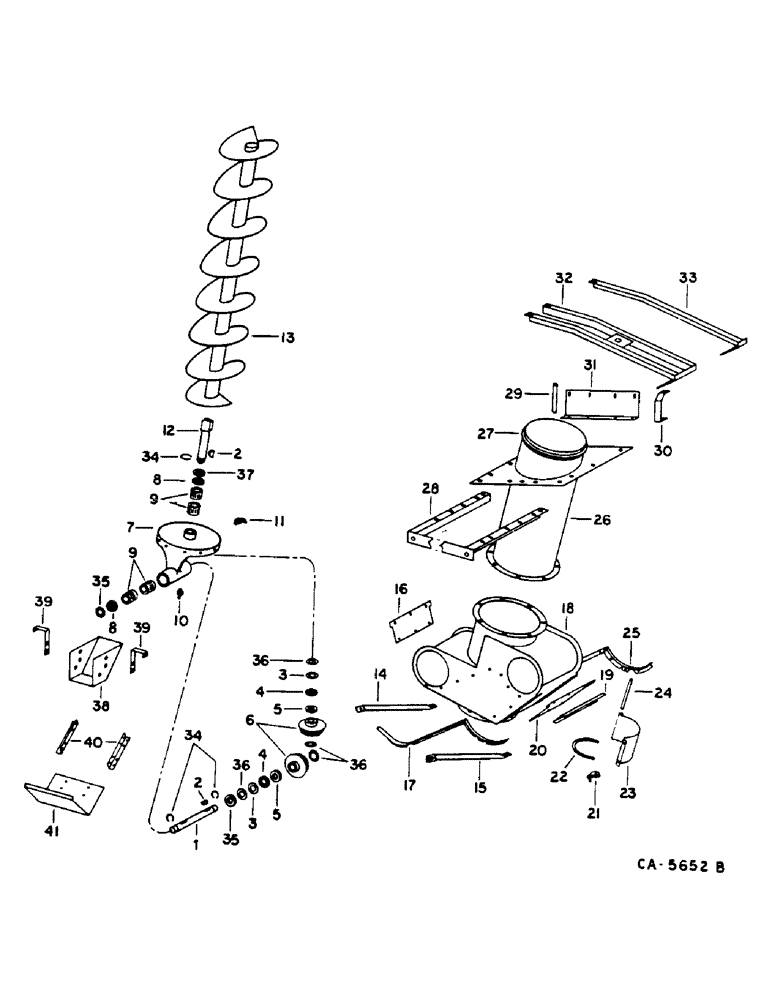

Запчасти Case IH 1460 (17-151) - GRAIN TANK UNLOADER, LOWER Mounted Equipment

1

192790C1

SHAFT

HORIZONTAL AUGER GEAR CASE

1шт.

2

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

2шт.

3

157725C1

THRUST WASHER

AUGER DRIVE AND VERTICAL SHAFT

2шт.

4

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

HORIZONTAL AUGER AND VERTICAL SHAFT THRUST

2шт.

5

607147R1

WASHER

AUGER DRIVE AND VERTICAL SHAFT

2шт.

6

186517C1

GEAR-SET

VERTICAL AUGER LOWER

1шт.

7

193702C91

HOUSING

ASSY, AUGER DRIVE - INCLUDES ITEMS 8 AND 9

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

8

157724C91

OIL SEAL

AUGER DRIVE OIL

2шт.

9

188126C91

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 25.4mm W

SHAFT SUPPORT NEEDLE

4шт.

10

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

11

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 PIPE SPEC THD 45 DEG.

1шт.

12

183489C2

SHAFT

SHAFT, UNLOADER VERTICAL AUGER

1шт.

13

192835C1

AUGER

ASSY, UNLOADER VERTICAL

1шт.

14

192847C1

ROD

DRIVE HOUSING FRONT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

1шт.

15

192848C1

ROD

DRIVE HOUSING REAR

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

1шт.

16

191087C1

PLATE

GRAIN TANK BOTTOM AUGER FRONT

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

17

192828C1

SUPPORT

AUGER HOUSING L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

18

192475C2

HOUSING

ASSY, UNLOADER LOWER

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 SLT-TRUSS-HD

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

19

192834C1

CHANNEL

VERTICAL SUPPORT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

20

191110C1

COVER

GRAIN RANK BOTTOM REAR

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

21

155909C1

LATCH

UNLOADER LOWER DOOR

1шт.

648002

KNIFE

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

1/4 X 1-1/4 ZND STD-HD

1шт.

22

195332C1

U-BOLT,1/4" - 20 x 2 1/2", Low Carbon Steel

BOLT "U" LOWER AUGER DOOR

1шт.

86625061

NUT,1/4"-20, GB

1шт.

23

195329C1

FLAP

DOOR ASSY, UNLOADER LOWER AUGER

1шт.

24

393069R1

PIN,6.35mm OD x 147.3mm L

LOWER AUGER DOOR

1шт.

25

192829C1

SUPPORT

AUGER HOUSING R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

26

192830C91

TUBE ASSY.

VERTICAL AUGER, WITH 27

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

27

178134C1

RING

UNLOADER TUBE UPPER

1шт.

106900

RIVET,Truss Hd, 1/4" x 3/4"

1шт.

28

1312223C1

SUPPORT ASSY.

VERTICAL AUGER

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 SLT-TRUSS-HD

1шт.

29

195400C1

SPACER

PIPE, UNLOADER TUBE SUPPORT

1шт.

20141R1

BOLT,Hex, 3/8" - 16 x 7 1/2", Gr 2

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

30

188330C1

SUPPORT ASSY.

TANK TOP REAR

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

1шт.

31

191189C1

SUPPORT

UNLOADER

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

32

1312226C1

SUPPORT ASSY.

UNLOADER TUBE CYLINDER

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

33

186112C1

SUPPORT ASSY.

CYLINDER R.H. REAR

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

1шт.

34

359141R1

RING, SNAP

RING SNAP HORIZONTAL AND VERTICAL SHAFT

3шт.

35

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

1.406 X 2.25 X .12 - HARD

4шт.

36

188446C1

WASHER,35.71mm ID x 50.8mm OD x 0.76mm Thk

1.406 X 2.00 X .03 - HARD

9шт.

37

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

1.406 X 2.25 X .12 - HARD

1шт.

37

183490C1

WASHER

WASHER, VERTICAL SHAFT

1шт.

38

186137C2

SUPPORT

UNLOADER DRIVE GEARS

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

39

186138C1

SUPPORT

UNLOADER DRIVE GEAR

2шт.
