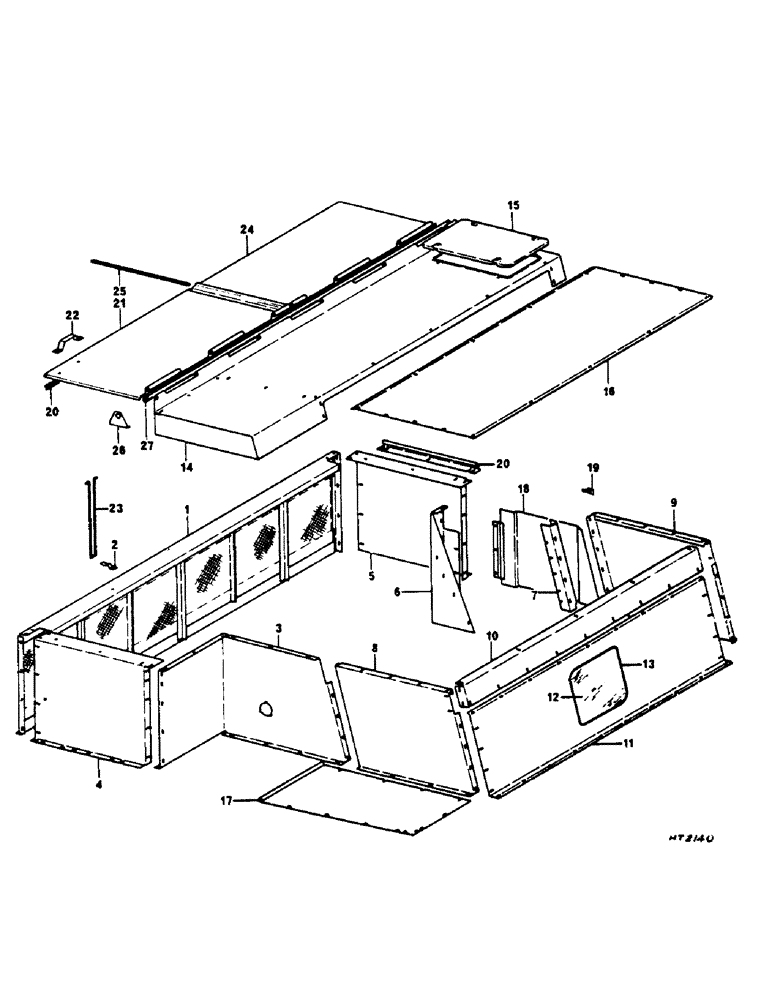

Запчасти Case IH 1460 (17-146) - GRAIN TANK EXTENSION COVER Mounted Equipment

1

1312228C1

SCREEN

ASSY, FRONT EXTENSION

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

4шт.

3177082R1

SCREW

M8 X 16 SLT-TRUSS-HD

9шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

13шт.

2

1312270C1

DOOR ASSY.

CLIP, L.H. COVER BRACE ROD

1шт.

3177081R1

SCREW

M6 X 12 SLT-TRUSS-HD

1шт.

3174964R1

LOCK NUT

M6 FLANGE LOCK

1шт.

3

1312239C1

SUPPORT

L.H. CENTRE EXTENSION SHEET

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

4шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

4шт.

4

1312241C1

SUPPORT

L.H. FRONT EXTENSION - SHEET

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

6шт.

3177082R1

SCREW

M8 X 16 SLT-TRUSS-HD

11шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

17шт.

5

1312242C1

SUPPORT

R.H. FRONT EXTENSION - SHEET

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

6шт.

3177082R1

SCREW

M8 X 16 SLT-TRUSS-HD

11шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

17шт.

6

1312245C1

SUPPORT

ELEVATOR FRONT - SHIELD

1шт.

7

1312247C1

SUPPORT

ELEVATOR REAR - SHIELD

1шт.

8

1312248C1

SUPPORT

L.H. REAR EXTENSION - SHEET

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

3шт.

3177082R1

SCREW

M8 X 16 SLT-TRUSS-HD

6шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

9шт.

9

3132249C1

SUPPORT, R.H. REAR EXTENSION - SHEET

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

4шт.

3177082R1

SCREW

M8 X 16 SLT-TRUSS-HD

6шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

10шт.

10

1312250C1

SUPPORT

CLOSING SHEET

1шт.

3177082R1

SCREW

M8 X 16 SLT-TRUSS-HD

4шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

4шт.

11

1312289C1

SUPPORT ASSY, REAR RAISING - SHEET, WITH 12, 13

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 C 20 SLT-TRUSS-HD

10шт.

3177082R1

SCREW

M8 X 16 SLT-TRUSS-HD

17шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

27шт.

12

1312379C1

GLASS

INSPECTION - WINDOW

1шт.

13

1312380C1

SEAL

INSPECTION WINDOW 1310 MM LONG

1шт.

14

1312252C1

COVER ASSY

CENTRE

1шт.

3177082R1

SCREW

M8 X 16 SLT-TRUSS-HD

5шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

5шт.

15

1406768R1

DOOR

COVER CENTRE

1шт.

934721R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

934309R1

LOCK WASHER,M8

4шт.

905521R1

WING NUT

M8 HEX WING

4шт.

934900R1

WING NUT

M8 ZNP WING

4шт.

16

1312263C1

SUPPORT ASSY.

CLOSING - SHEET

1шт.

3177082R1

SCREW

M8 X 16 SLT-TRUSS-HD

16шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

16шт.

17

1312269C1

SUPPORT

CLOSING - SHEET

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

8шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

8шт.

18

1312270C1

DOOR ASSY.

ELEVATOR

1шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

3шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

3шт.

19

167800C1

CLIP

DOOR RETAINER CLUP

2шт.

905367R1

SCREW,M5 x 16mm, Cl 8.8

M5 X 16 P/HDS MACH.

2шт.

30264R1

LOCK WASHER,M5

2шт.

934871R1

NUT,M5, Cl 5

2шт.

20

1312272C1

SUPPORT

COVER SIDE - GUIDE

2шт.

3177082R1

SCREW

M8 X 16 SLT-TRUSS-HD

4шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

4шт.

21

1312273C1

COVER ASSY

LEFT

1шт.

22

160638C1

HANDLE

L.H. COVER

1шт.

3177082R1

SCREW

M8 X 16 SLT-TRUSS-HD

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

2шт.

23

1312371C1

ROD

TANK COVER BRACE

1шт.

934790R1

COTTER PIN,M3.2 x 16

3.2 X 16 MM PLN

2шт.

24

1312276C1

COVER ASSY

RIGHT

1шт.

25

1312280C1

SEALING STRIP

SEAL

1шт.

26

3174253R1

SUPPORT

DOOR HINGE

2шт.

3176200R1

WASHER

8.25 X 18 X 1.5 MM

16шт.

3177071R1

SCREW

SPARE PART M8 X 25 SLT-TRUSS-HD

4шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

4шт.

27

1312281C1

PIPE

HINGE COVER

1шт.

932864R1

AXLE PIN,M5 x 40

5 X 40 MM PLN COT

2шт.

28

1312282C1

SEAL

COVER FRONT JOINT

2шт.
