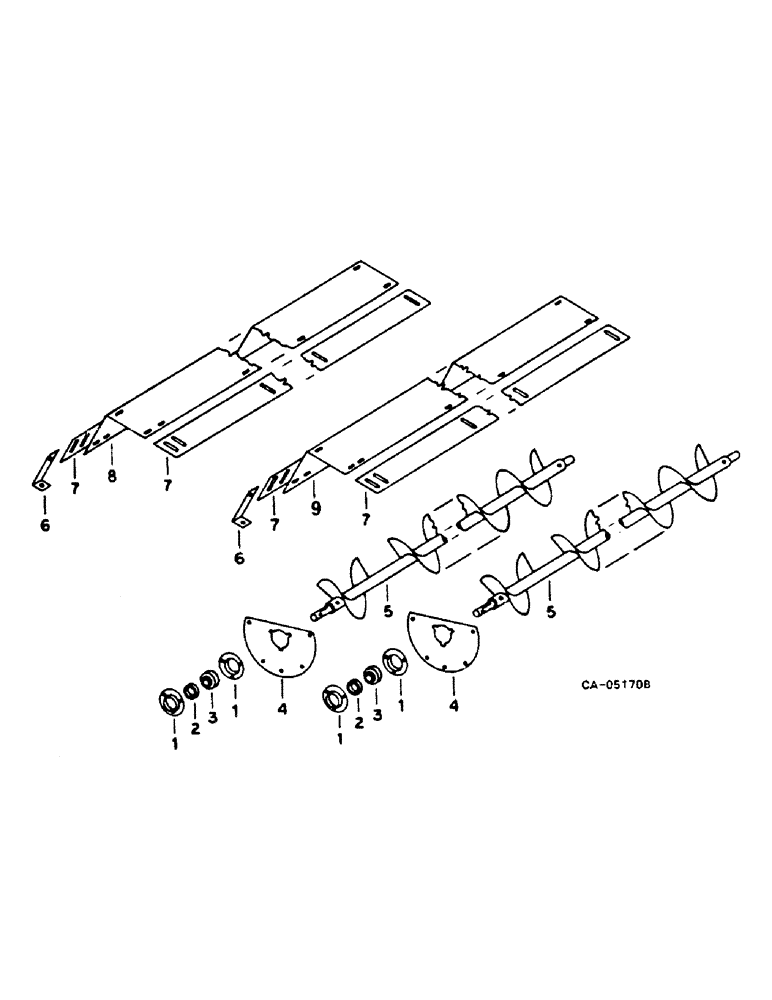

Запчасти Case IH 1460 (17-144) - GRAIN TANK BOTTOM AUGERS Mounted Equipment

1

462360R1

FLANGED BEARING

BOTTOM AUGER LEFT BEARING

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

2

455102R1

COLLAR

W/SET SCREW BOTTOM AUGER LIFT BEARING

4шт.

3

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

ASSY, BOTTOM AUGER LEFT

4шт.

4

192789C1

RETAINER

BOTTOM AUGER L.H. BRG

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

5

192784C1

AUGER

ASSY, GRAIN TANK BOTTOM

2шт.

6

192779C1

SUPPORT

AUGER COVER

16шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

16шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

16шт.

7

192782C1

BAR

SPARE PART AUGER COVER EXTENSION, FOR GRAIN AND CORN

4шт.

8

192781

ANGLE, AUGER COVER

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

9

192781C1

ANGLE

AUGER COVER REAR, FOR GRAIN AND CORN

1шт.

9

182661C1

ANGLE

AUGER COVER REAR, FOR RICE

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.
