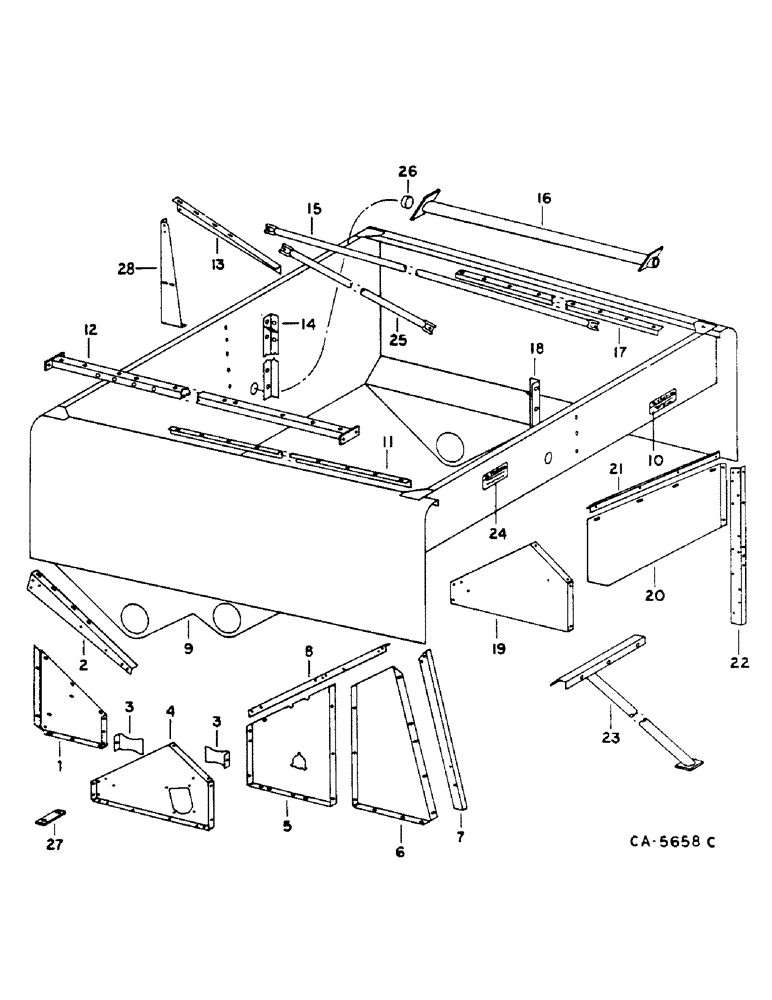

Запчасти Case IH 1460 (17-140) - GRAIN TANK Mounted Equipment

1

192770C1

SUPPORT

GRAIN TANK FRONT SUPPORT L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

2

192768C2

SUPPORT

GRAIN TANK DIAGONAL L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

3

193531C1

SUPPORT

FILLER

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

4

192771C2

SUPPORT

GRAIN TANK CENTRE L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

5

193471C1

SUPPORT

GRAIN TANK REAR SUPPORT FIXED L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

6

192777C1

SUPPORT

GRAIN TANK REAR L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

7

192775C1

SUPPORT

GRAIN TANK REAR VERTICAL L.H.

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

8

192773C1

ANGLE

GRAIN TANK REAR BOTTOM L.H.

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

9

1312019C91

TANK

ASSY, GRAIN, WITH 10, 24

1шт.

10

1312092C1

DECAL

CAUTION ROTOR DRIVE

1шт.

11

195397C2

ANGLE

TANK TOP LEFT

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 SLT-TRUSS-HD

1шт.

12

192855C1

SUPPORT

GRAIN TANK TIE

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

13

192769C2

SUPPORT

GRAIN TANK DIAGONAL R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

14

188417C1

ANGLE

GRAIN TANK TIE FRONT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

15

192767C1

ROD

GRAIN TANK TIE

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

16

192762C1

TUBE ASSY.

SPARE PART GRAIN TANK WIRING

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

17

195398C1

ANGLE

TANK TOP RIGHT

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

18

188416C1

ANGLE

GRAIN TANK TIE REAR

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

19

192772C2

SUPPORT

GRAIN TANK CENTRE R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

20

192474C1

SUPPORT

GRAIN TANK R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

25756R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 5/8"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

1шт.

21

192774C1

SUPPORT

GRAIN TANK REAR BOTTOM R.H.

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

22

181392C1

SUPPORT

GRAIN TANK REAR VERTICAL R.H.

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

23

186118C1

SUPPORT ASSY.

GRAIN TANK REAR

1шт.

540858R1

BOLT,Hex Serr, 1/2" - 13 x 1 1/2"

1шт.

24

1312020C1

PRODUCT GRAPHIC

CAUTION

1шт.

25

188414C1

ROD

GRAIN TANK TIE

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

26

179970C1

PAD

CENTRE HARNESS WIRING TUBE SEAL

2шт.

27

NOT USED

1шт.

28

NOT USED

1шт.
