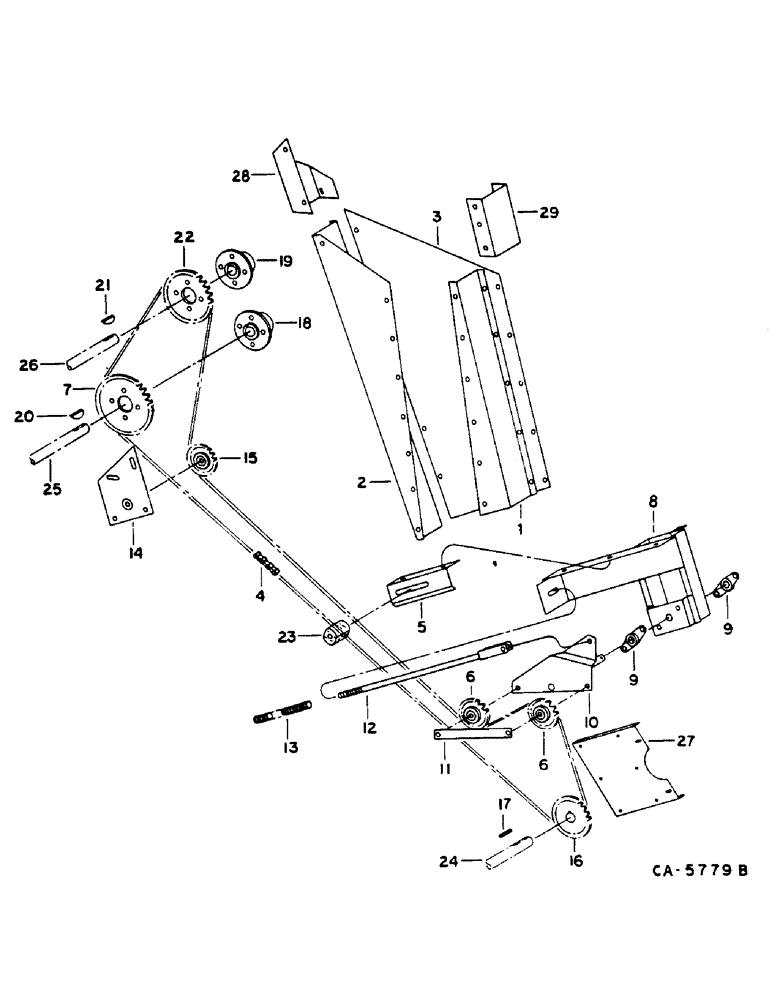

Запчасти Case IH 1460 (17-137) - ELEVATOR DRIVE Mounted Equipment

1

1312197C1

SHIELD

INNER ELEVATOR UPPER

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 X 1/2 SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 FLANGE LOCK

1шт.

2

188026C1

SHIELD

SPARE PART INNER ELEVATOR LOWER

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 X 1/2 SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 FLANGE LOCK

1шт.

3

1312198C1

SHIELD

OUTER ELEVATOR

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 X 1/2 SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 FLANGE LOCK

1шт.

4

CHAIN ASSY, GRAIN ELEVATOR DRIVE - FOR GRAIN AND CORN - 259 LINKS FROM BULK LENGTH AND ONE CONNECTING LINK 1310D

1шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

BULK LENGTH 10 FT

1шт.

1310D

LINK

CONNECTING

1шт.

5

1302487C1

SUPPORT

ELEVATOR TIGHTENER BLOCK

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 FLANGE LOCK

1шт.

6

631905R91

SPROCKET

ELEVATOR CHAIN IDLER - 17T

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

3/8 X 2 TYPE 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 TYPE 5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

21471R1

WASHER

.656 X 1.000 X .105

1шт.

7

188188C1

SPROCKET ASSY.

GRAIN ELEVATOR SPOUT - 27T, FOR GRAIN AND CORN

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

.344 X .688 X .051

1шт.

8

182765C2

SUPPORT ASSY, IDLER PIVOT

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 X 1-1/4 SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 FLANGE LOCK

1шт.

20803R1

WASHER

.406 X 1.000 X .105

1шт.

9

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING ASSY, IDLER PIVOT

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 FLANGE LOCK

1шт.

10

1312207C1

ARM ASSY.

DOUBLE IDLER PIVOT

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

495-11081

WASHER,3/4", SAE

.812 X 1.469 X .108

1шт.

11

182771C1

BAR

DOUBLE IDLER TIE

1шт.

12

182768C1

ROD ASSY.

IDLER SPRING TENSION

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

22444R1

CLEVIS PIN,3/8" x 1"

3/8 X 1.000 CLEVIS

1шт.

121222

COTTER PIN,3/32" x 3/4"

1шт.

120394

WASHER,3/8", SAE

.406 X .812 X .051

1шт.

13

523677R1

SPRING

DOUBLE IDLER TENSIONING

1шт.

14

182777C1

SUPPORT ASSY.

STATIONARY IDLER

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 FLANGE LOCK

1шт.

15

631905R91

SPROCKET

STATIONARY IDLER - 17T

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 X 2 TYPE 5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

21471R1

WASHER

.656 X 1.000 X .105

1шт.

NLS

NO LONGER SERVICED

.656 X 1.312 X .074

1шт.

16

192139C2

SPROCKET

GRAIN AND TAILINGS ELEVATOR DRIVE - 25T

1шт.

84983

SET SCREW,3/8" x 1"

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

17

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

18

1302217C1

HUB

GRAIN SPOUT DRIVE SPROCKET

1шт.

26202R1

SET SCREW

3/8 X 1-1/4 PHC SQ/HD C/PT SET

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

19

1302216C1

HUB

GRAIN ELEVATOR DRIVE SPROCKET

1шт.

26202R1

SET SCREW

3/8 X 1-1/4 PHC SQ/HD C/PT SET

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

21

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 X 1 WOODRUFF HARDENED

1шт.

22

188189C1

SPROCKET ASSY.

GRAIN ELEVATOR HEADSHAFT - 33T

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4 TYPE 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120394

WASHER,3/8", SAE

.406 X .812 X .051

1шт.

23

582018R1

BLOCK

GRAIN ELEVATOR DRIVE CHAIN TIGHTENER

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 X 3 TYPE 5

1шт.

606546R1

JAM NUT

5/8 HEX JAM

1шт.

21782R1

WASHER

.656 X 1.500 X .054

1шт.

24

SHAFT, ELEVATOR DRIVE - SEE TAILINGS ELEVATOR DRIVE AND JACKSHAFT

1шт.

25

AUGER ASSY, GRAIN DELIVERY, SEE GRAIN ELEVATOR

1шт.

26

SHAFT, GRAIN ELEVATOR HEAD, SEE GRAIN ELEVATOR

1шт.

27

1312206C1

SUPPORT

1шт.
