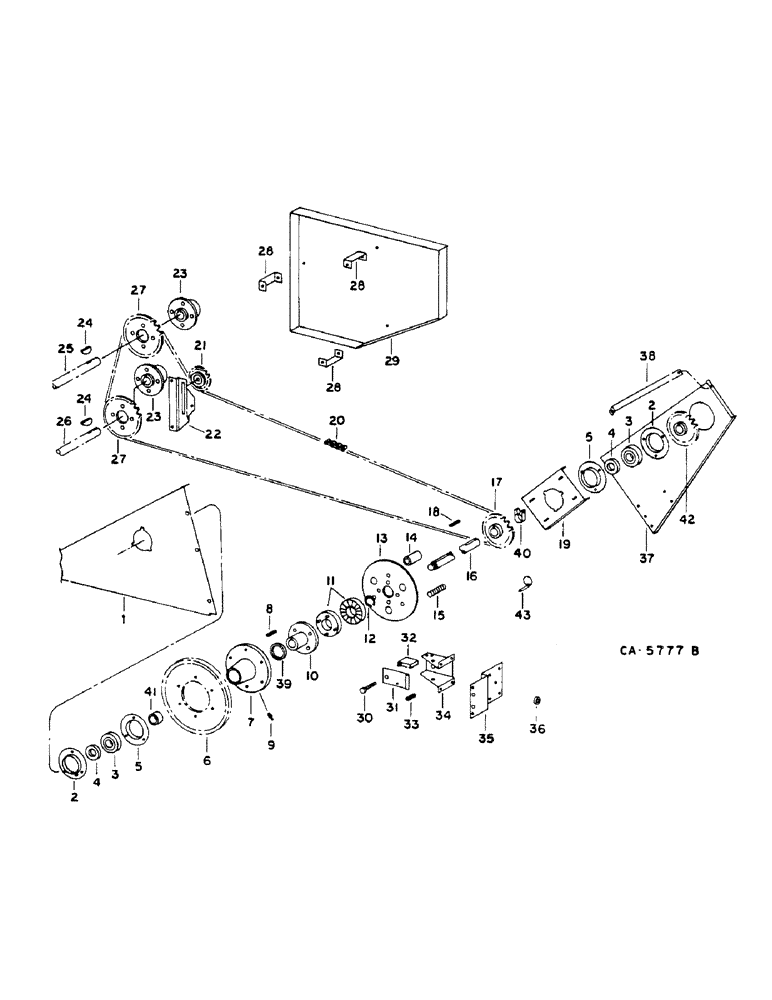

Запчасти Case IH 1460 (17-133) - TAILINGS ELEVATOR DRIVE AND JACKSHAFT Mounted Equipment

1

183205C1

SUPPORT

ELEVATOR JACKSHAFT INNER

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

2

473092R1

FLANGED BEARING

JACKSHAFT BEARING

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

3

473097R92

BEARING ASSY,1.2505" ID x 72 mm OD x 1"

ASSY, ELEVATOR JACKSHAFT

2шт.

4

455104R11

COLLAR

W/SET SCREW JACKSHAFT BEARING

2шт.

5

939462R91

FLANGE

W/LUB FITTING JACKSHAFT

2шт.

6

PULLEY ASSY, JACKSHAFT DRIVEN - SEE BELT DRIVE R.H. SIDE

1шт.

7

183210C91

HUB

ELEVATOR JACKSHAFT DRIVE SLIP CLUTCH, WITH 39

1шт.

9411655

LOCK NUT,3/8"-16, GB

1шт.

614452R1

WASHER

.406 X 1.250 X .090

1шт.

20506R1

BOLT,Hex, 3/8" - 16 x 6", Gr 5

1шт.

120394

WASHER,3/8", SAE

1шт.

8

586879R1

KEY

5/16 X 2 SQ PARALLEL

1шт.

9

87414

LUBE NIPPLE,1/4" - 28

1шт.

10

183212C1

HUB ASSY.

DRIVE SLIP CLUTCH

1шт.

11

B12170

RATCHET,Clutch Slip, 94.49mm

ELEVATOR DRIVE SLIP CLUTCH

2шт.

12

609053R1

SNAP RING,#125, Ext

ELEVATOR DRIVE JACKSHAFT

2шт.

13

194835C2

RETAINER

ELEVATOR DRIVE SLIP CLUTCH

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

1шт.

14

194836C1

BUSHING

ELEVATOR JACKSHAFT

3шт.

15

PO177

SPRING

ELEVATOR DRIVE SLIP CLUTCH

3шт.

16

194796C2

SHAFT

ELEVATOR DRIVE

1шт.

22182R1

WASHER

1.281 X 2.000 X .033

1шт.

21226R1

WASHER

1.281 X 2.000 X .105

1шт.

17

192139C2

SPROCKET

TAILINGS ELEVATOR DRIVE - 25T

1шт.

84983

SET SCREW,3/8" x 1"

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

18

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

19

192138C2

BRACKET

CHANNEL, JACKSHAFT OUTER

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

4шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP

3шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

20

CHAIN ASSY, TAILINGS ELEVATOR DRIVE - 153 LINKS FROM BULK LENGTH AND ONE CONNECTING LINK 1310D

1шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

BULK LENGTH 10 FT

1шт.

21

631905R91

SPROCKET

GRAIN AND TAILINGS ELEVATOR DRIVE IDLER - 17T

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

1шт.

22

1302069C1

SUPPORT

TAILINGS ELEVATOR DRIVE CHAIN IDLER

1шт.

22859R1

WASHER

.344 X .750 X .164

1шт.

23

1302217C1

HUB

TAILINGS ELEVATOR DRIVE AND DRIVEN SPROCKETS

2шт.

26202R1

SET SCREW

3/8 X 1-1/4 PHC SQ/HD C/PT SET

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

24

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

25

SHAFT, TAILINGS ELEVATOR HEAD, SEE TAILINGS ELEVATOR

1шт.

26

AUGER ASSY, TAILINGS DELIVERY, SEE TAILINGS ELEVATOR

1шт.

27

188188C1

SPROCKET ASSY.

TAILINGS ELEVATOR DRIVE AND DRIVEN - 27T

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

1шт.

28

191775C1

CHANNEL

HEAD SHIELD

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

1шт.

29

195099C1

SHIELD

DELIVERY SPROCKET

1шт.

30

570028R91

BOLT

BOLT ASSY, CLUTCH CONTROL ARM

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

31

167324C1

HINGE

STRIP, ELEVATOR SLIP CLTUCH SWITCH

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

23099R1

HEADED PIN,5/16" x 3"

5/16 X 3 ZND STD-HD

1шт.

32

574649R91

SWITCH

ASSY, ELEVATOR ALARM

1шт.

134530

NUT,Hex, #6 - 32

1шт.

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

NO. 6 X 1-1/4 ZND SLT

1шт.

492-11006

LOCK WASHER,#6

1шт.

495-31016

WASHER,#6

.156 X .375 X .036

1шт.

33

M296

SPRING

ALARM SWITCH SLIP RETURN

1шт.

34

167323C1

SUPPORT

ELEVATOR SLIP CLUTCH SWITCH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

21963R1

HEADED PIN,1/4" x 2 1/2"

1/4 X 2.500 HD TYPE 1

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

21870R1

WASHER

17/64 X 3/4 X 16 GA C-Z

1шт.

35

185138C1

SUPPORT

ELEVATOR ALARM SWITCH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

36

109360

GROMMET

5/16 OD

1шт.

37

NOT USED

1шт.

38

NOT USED

1шт.

39

936744R1

BUSHING,47.66mm ID x 50.83mm OD x 19.05mm L

SLIP CLUTCH HUB

2шт.

40

225265R1

CLAMP

INNER DRIVE SPROCKET

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

41

NOT USED

1шт.

42

SPROCKET, GRAIN ELEVATOR DRIVE - SEE ELEVATOR DRIVE GRAIN AND CORN OR RICE

1шт.

43

373025R91

PIN ASSY.

OUTER DRIVE SPROCKET

1шт.
