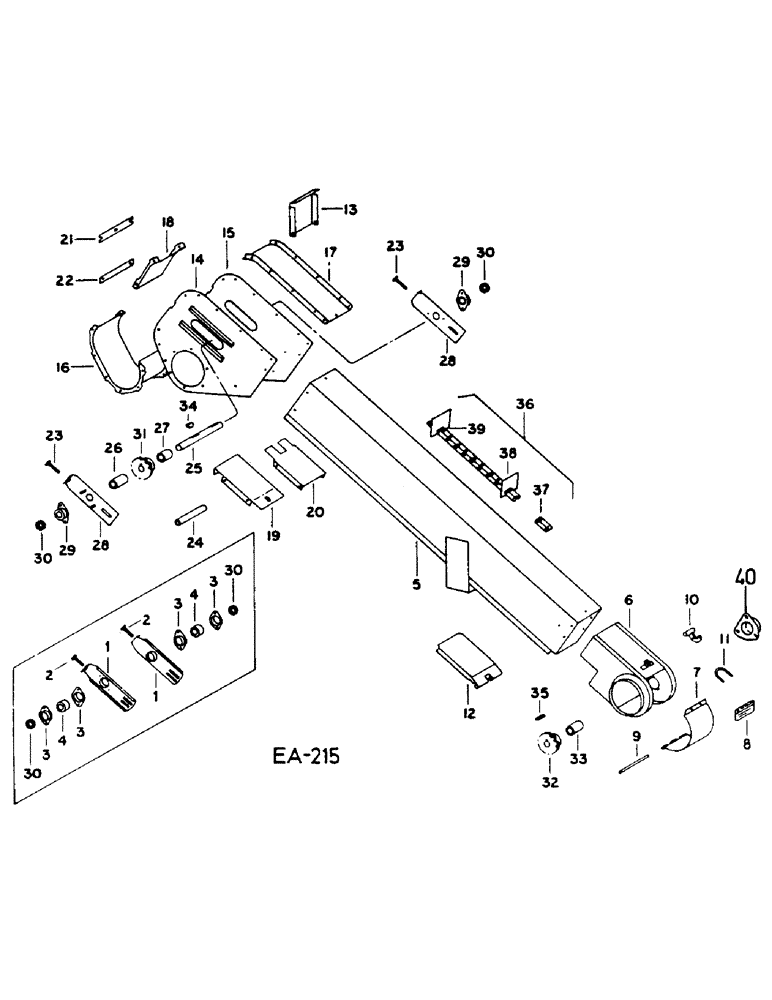

Запчасти Case IH 1460 (17-124) - TAILINGS ELEVATOR Mounted Equipment
№
Артикул
Название
Примечание
Количество
1
NOT USED
1шт.
2
NOT USED
1шт.
3
NOT USED
1шт.
4
NOT USED
1шт.
154273C1
BOLT,Hex Serr, 3/8" - 16 x 1", Spcl
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
1шт.
120394
WASHER,3/8", SAE
1шт.
6
191771C1
BOOT
ASSY, ELEVATOR
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
1шт.
7
156910C1
DOOR
TAILINGS ELEVATOR BOOT - NON-PERFORATED
1шт.
8
NOT USED
1шт.
9
U17024
PIN
BOOT DOOR
1шт.
10
155909C1
LATCH
CATCH, DOOR
1шт.
21879R1
HEADED PIN,1/4" x 1 1/4"
1/4 X 1.250 HD TYPE 1
1шт.
432-812
COTTER PIN,3/4" OAL x 1/8" W
1шт.
11
664360R1
BOLT,U, 1/4" - 20 x 69.65"
"U"
1шт.
86625061
NUT,1/4"-20, GB
1шт.
12
191790C2
END
FALSE BOTTOM
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 X 3/4 ZNP SLT-TRUSS-HD
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
1шт.
13
195201C1
SUPPORT
ELEVATOR UPPER
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 X 3/4 ZNP SLT-TRUSS-HD
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
1шт.
14
181366C1
SIDE PLATE
ELEVATOR HEAD LH
1шт.
15
181367C1
SIDE PLATE
ELEVATOR HEAD RH
1шт.
16
188119C1
TROUGH
TRAY ASSY, ELEVATOR HEAD
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 X 3/4 ZNP SLT-TRUSS-HD
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
1шт.
17
191783C1
TOP COVER
HEAD
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 X 3/4 ZNP SLT-TRUSS-HD
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
1шт.
18
191776C1
COVER
COVER, HEAD
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
1шт.
19
191782C1
SUPPORT
BOTTOM, HEAD
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 X 3/4 ZNP SLT-TRUSS-HD
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 X 3/4 ZNP SLT-TRUSS-HD
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
1шт.
21
181376C1
CLAMP
TIGHTENER BOLT
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
1шт.
614452R1
WASHER
.406 X 1.250 X .090
1шт.
22
181375R1
SPARE PART SUPPORT ASSY, TIGHTENER
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
1шт.
614452R1
WASHER
.406 X 1.250 X .090
1шт.
23
667486R1
BOLT
BOLT, CONVEYOR CHAIN TIGHTENER BAR
2шт.
24
27829R1
SPACER,9.2mm ID x 13.72mm OD x 147.6mm L
1шт.
24666R1
BOLT,Hex, 5/16" - 18 x 7", Gr 2
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
1шт.
120393
BEARING WASHER,5/16", SAE
1шт.
25
191785C1
SHAFT
ELEVATOR HEAD
1шт.
21789R1
WASHER
1.031 X 1.250 X 054
1шт.
609836R1
WASHER
1.031 X 1.750 X .054
1шт.
26
615327R1
SPACER, 1 X 2.75 HEAD SHAFT L.H.
1шт.
27
27828R1
SPACER,26.6mm ID x 33.4mm OD x 39.7mm L
Head Shaft RH
1шт.
28
181364C1
SUPPORT
ELEVATOR HEAD SHAFT
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
1шт.
29
214490C91
BALL BEARING,25.4mm ID
HEAD SHAFT
2шт.
30
455102R91
COLLAR
ASSY, BRG LKG
2шт.
31
168683C1
SPROCKET
CONVEYOR CHAIN - 7T
1шт.
32
168683C1
SPROCKET
CONVEYOR CHAIN - 7T
1шт.
33
21696R1
SPACER,1" Pipe x 1 3/8"
1 X 1.3 BOOT SPROCKET
1шт.
22440R1
WASHER
1.031 X 1.750 X .027
1шт.
34
124553
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
35
Y24430
KEY,1/4" Sq x 1 1/2", Par
1/4 X 1 SQ PARALLEL
1шт.
36
1312203C91
CHAIN (AG)
CONVEYOR ASSY, CHAIN W/FLIGHTS
1шт.
185315C1
RIVET
5/16 X 5/8 TUBLUAR
1шт.
37
631254R91
DRAG LINK
CONVEYOR CHAIN CONNECTOR
1шт.
37
23880R1
OFFSET LINK
CONVEYOR CHAIN
1шт.
37
631253R91
LINK
CONVEYOR CHAIN PLAIN
1шт.
38
1303123C91
ELEVATOR CHAIN
W/FLIGHT ELEVATOR - RUBBER
1шт.
39
1303125C1
STEEL FLIGHT
ELEVATOR
2шт.
814-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
4шт.
3176424R1
LOCK NUT,M8 x 1.25, Cl 8
4шт.
40
3159499R2
COVER
ELEVATOR SHAFT END
1шт.
3177071R1
SCREW
SPARE PART BOLT, M8 X 25 HEX HD THI-BLOC
3шт.
3176200R1
WASHER
M8.25 X 16 X 1.5
3шт.
86505868
SERRATED NUT,Hex, M8 x 1.25, Cl 8
Hex Thi-Bloc
3шт.
934310R1
NUT,M8, Cl 8
3шт.
Выбрано товаров: 87
