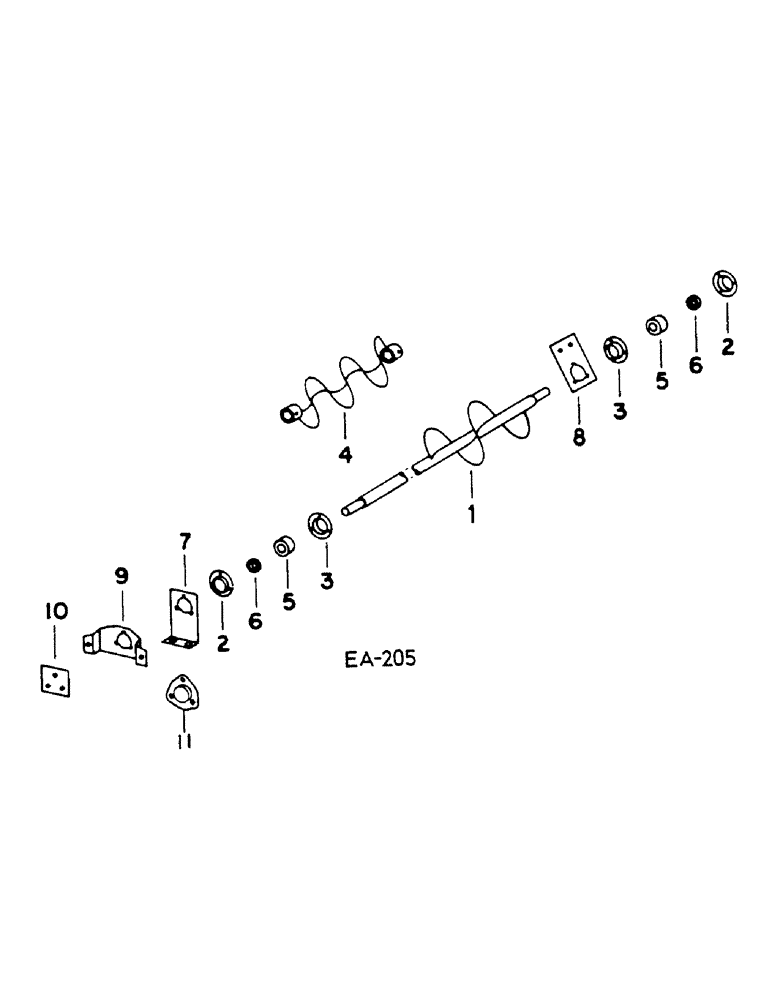

Запчасти Case IH 1460 (17-122) - GRAIN DELIVERY AUGER Mounted Equipment

1

191913C1

AUGER

ASSY, DELIVERY, FOR GRAIN AND CORN

1шт.

1

185294C1

AUGER

ASSY, DELIVERY, FOR RICE

1шт.

2

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

W/LUB FITTING AUGER BRG

2шт.

3

937517R1

FLANGE

AUGER BRG GROOVED

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

4

162103C91

AUGER

ASSY, DISTRIBUTION

1шт.

102604

SET SCREW,Hex Skt, 7/16" - 14 x 1/2"

1шт.

5

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

DELIVERY AUGER

2шт.

6

455102R21

COLLAR

BRG LOCKING

2шт.

7

NOT USED

1шт.

8

183466C1

BAR

DISTRIBUTION AUGER BRG R.H.

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

9

185030C1

SUPPORT ASSY.

LEVELLING AUGER BRG, FOR RICE

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

10

626582R1

COVER

DISTRIBUTOR AUGER SHAFT HOLE, FOR RICE

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

11

3159499R2

COVER

AUGER SHAFT END

1шт.

3176200R1

WASHER

M8.25 X 16 X 1.5

3шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Hex Thi-Bloc

3шт.

934310R1

NUT,M8, Cl 8

3шт.
