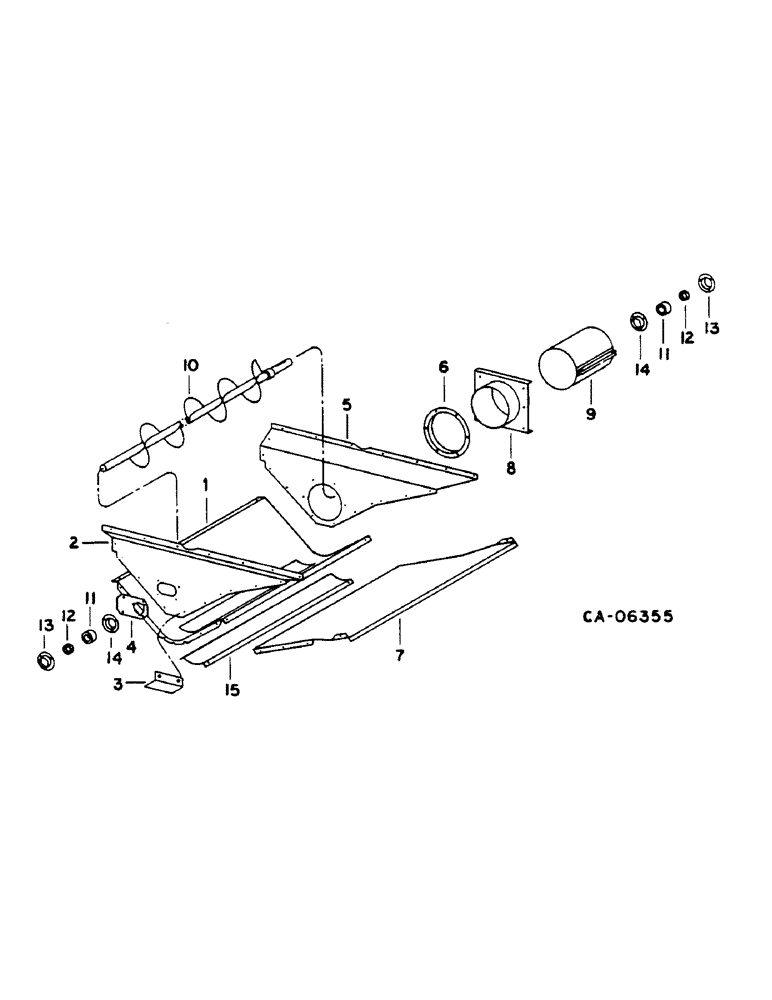

Запчасти Case IH 1460 (17-119) - GRAIN AUGER TROUGH Mounted Equipment

1

186630C1

TRAY ASSY.

GRAIN BOTTOM - CORN-PERFORATED

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

1

191713C2

TROUGH

TRAY, GRAIN BOTTOM - NON-PERFORATED

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

134238R1

WASHER

.344 X 1.000 X .054

1шт.

2

188018C2

SUPPORT ASSY.

GRAIN TROUGH L.H.

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

3

182715C1

ANGLE

TROUGH L.H. SUPPORT

1шт.

4

178602C1

PLATE

BAR, GRAIN COLLECTING AUGER L.H. ACCESS

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

5

191715C2

SUPPORT

GRAIN TROUGH R.H.

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT, 5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

1шт.

6

194688C1

RING

GRAIN TROUGH R.H. SUPPORT

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

134238R1

WASHER

.344 X 1.000 X .054

1шт.

7

191716C1

EXTENSION

GRAIN TROUGH

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

8

192661C2

TUBE

GRAIN TROUGH

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

9

195073C1

EXTENSION

ASSY, GRAIN AUGER TROUGH - CORN-PERFORATED

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

9

192664C1

CLAMP

ASSY, GRAIN AUGER TROUGH - NON-PERFORATED

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

1шт.

9412083

NUT,5/16"-18, GB

1шт.

10

191737C1

AUGER

ASSY, GRAIN

1шт.

21789R1

WASHER

1.031 X 1.250 X .054

1шт.

11

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

GRAIN AUGER

2шт.

12

455102R21

COLLAR

W/SET SCREW GRAIN AUGER

2шт.

13

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

W/45 DEG. LUB FITTING

2шт.

14

937517R1

FLANGE

AUGER BRG GROOVED

2шт.

632-227R1

SCREW, 5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

15

186627C1

COVER

GRAIN TROUGH - CORN-PERFORATED

1шт.

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.
