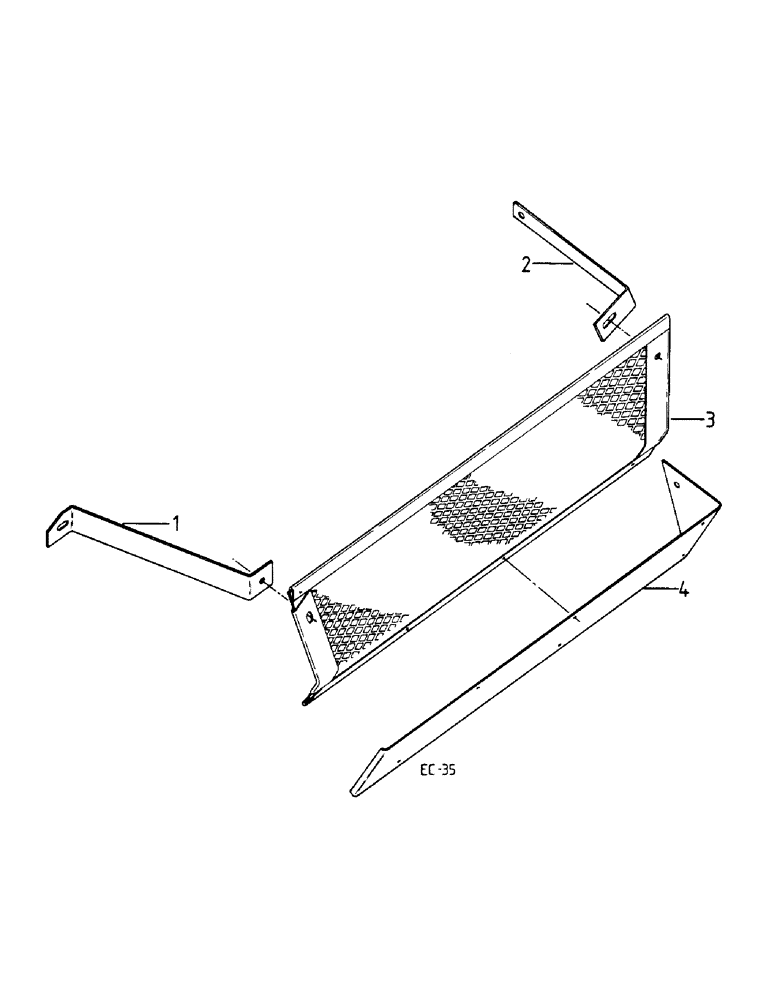

Запчасти Case IH 1460 (17-113) - FAN SHIELD WITH SUPPORTS, UK MACHINES ONLY Mounted Equipment

1

1311166C1

BRACKET

SUPPORT, FRONT

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 TRUSS HD SLTD M/C ZND

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

2шт.

2

1311165C1

BRACKET

SUPPORT, REAR

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 TRUSS HD SLTD M/C ZND

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

2шт.

3

183473C1

SHIELD

ASSY, FAN

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 TRUSS HD SLTD M/C ZND

3шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

3шт.

4

1311164C1

SUPPORT

FAN INTAKE SHIELD

1шт.

3177082R1

SCREW

M8 X 12 TRUSS HD SLTD M/C ZND

4шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

4шт.
