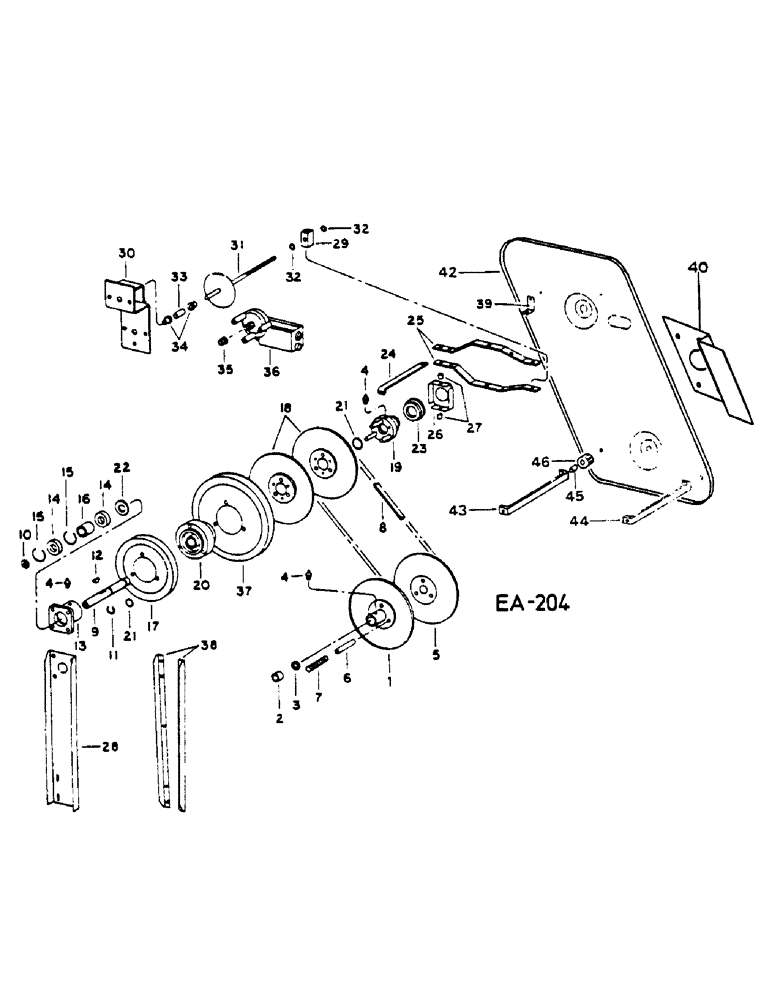

Запчасти Case IH 1460 (17-103) - FAN DRIVE Mounted Equipment

1

185023C92

PULLEY ASSY.

FAN DRIVEN ADJ - 11.24 IN. OD, WITH 2, 3

1шт.

2

629232R1

BUSHING,31.8mm ID x 34.92mm OD x 25.4mm L

DRIVEN ADJ PULLEY

1шт.

3

537545R92

SEAL

DRIVEN ADJ PULLEY

1шт.

4

87414

LUBE NIPPLE,1/4" - 28

4шт.

5

1309014C1

PULLEY ASSY.

FAN DRIVEN FIXED - 11.24 IN. OD

1шт.

275635R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

9412230

LOCK NUT

1/2 PHC P/T LOCK TYPE 8

1шт.

25546R1

WASHER,17/32" x 1 1/16" x .188", HDN

1шт.

6

185019C2

SLEEVE,8.18mm ID x 14.27mm OD x 69.85mm L

FAN DRIVE SPRING

3шт.

7

1302540C1

SPRING

FAN DRIVE OUTER PULLEY

3шт.

187147

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

9412083

NUT,5/16"-18, GB

1шт.

20893R1

WASHER

.344 X 1.000 X .105

1шт.

8

195396C2

BELT,31.80 mm W x 1881.58 mm L

Fan drive, OC

1шт.

9

194853C3

SHAFT

ELEVATOR AND FAN DRIVE

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

668569R1

WASHER

.344 X 1.500 X .105

1шт.

10

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

FAN BEARING RETAINER

1шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

1/2 X 1 HEX-HD FL LOCK W/SCOTCH GRIP

1шт.

11

609053R1

SNAP RING,#125, Ext

INNER DRIVE BRG

1шт.

12

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

ELEVATOR AND FAN DRIVE SHAFT

1шт.

13

192418C1

HUB

ELEVATOR AND FAN DRIVE

1шт.

14

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

ELEVATOR AND FAN DRIVE

2шт.

15

360936R1

RING

FAN DRIVE SHAFT SNAP

2шт.

16

152926C1

SPACER

1-5/16 ID X 1-5/8 X 1.88

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

120394

WASHER,3/8", SAE

1шт.

17

PULLEY ASSY, FAN AND ELEVATOR JACKSHAFT DRIVEN - 13.0 IN. OD - SEE R.H. DRIVE

1шт.

18

183288C1

PULLEY

FAN DRIVEN - 11.25 IN. OD

2шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

1шт.

19

185286C91

HUB

FAN DRIVEN ADJ PULLEY

1шт.

25095R1

SPLIT PIN/SAFETY PIN

1/2 X 3.500 PLN HDN-DOWEL

1шт.

20

183333C1

HUB

FAN DRIVER FIXED PULLEY

1шт.

21

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1шт.

22

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

FAN BEARING RETAINER

1шт.

23

168215C91

BALL BEARING

FAN JACKSHAFT

1шт.

24

194847C1

SUPPORT

FAN DRIVE CONTROL

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

21964R1

HEADED PIN,3/8" x 1 1/2"

3/8 X 1.500 HD TYPE 1

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

120394

WASHER,3/8", SAE

1шт.

21752R1

WASHER

.406 X 1.500 X .054

1шт.

25

194850C2

SUPPORT

FAN CONTROL

2шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

1шт.

26

194852C2

SUPPORT

FAN DRIVER

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

1шт.

27

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

2шт.

28

188128C1

CHANNEL

FAN HUB

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

29

181206C1

BLOCK

FAN SPEED CONTROL SHAFT

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

80681

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

1шт.

30

181199C1

SUPPORT ASSY.

SPEED CONTROL MOTOR

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

31

181202C1

SHAFT ASSY.

STUD ASSY, ADJUSTING GEAR SHAFT

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

17145R1

LOCK PIN,3/16" x 3/4", Slotted

1шт.

22258R1

WASHER

.656 X 1.000 X .027

1шт.

32

1302054C1

WASHER,15.95mm ID x 25.4mm OD x 1.52mm Thk

FAN CONTROL THRUST

2шт.

33

181205C1

SPACER

ADJUSTING GEAR STUD

1шт.

34

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

BEARING, FAN SPEED CONTROL STUD

2шт.

35

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

FAN SPEED CONTROL MOTOR

1шт.

36

126573C1

MOTOR, ELECTRIC

ASSY, FAN VARIABLE SPEED

1шт.

22264R1

WASHER

.406 X 1.000 X .164

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

37

PULLEY ASSY, CLEANING UNIT DRIVE, SEE R. H. DRIVE

1шт.

38

NOT USED

1шт.

39

194756C2

ANGLE

FAN DRIVE PULLEY SHIELD

4шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

40

1866036R1

SHIELD

ELECTRICAL FAN DRIVE

1шт.

3177082R1

SCREW

M8 X 16 FLANGE LOCK

4шт.

934767R1

WASHER

M9 X 22 X 1.5

4шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Hex Thi-Bloc

4шт.

41

NOT USED

1шт.

42

1312758C1

SHIELD

FAN DRIVE

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

43

194760C1

SUPPORT

LOWER SHIELD

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

44

1312759C1

HOLDER

BRACKET, LOWER REAR

1шт.

45

3140859R1

BUSHING

4шт.

46

1312760C1

RUBBER WASHER

RUBBER

4шт.
