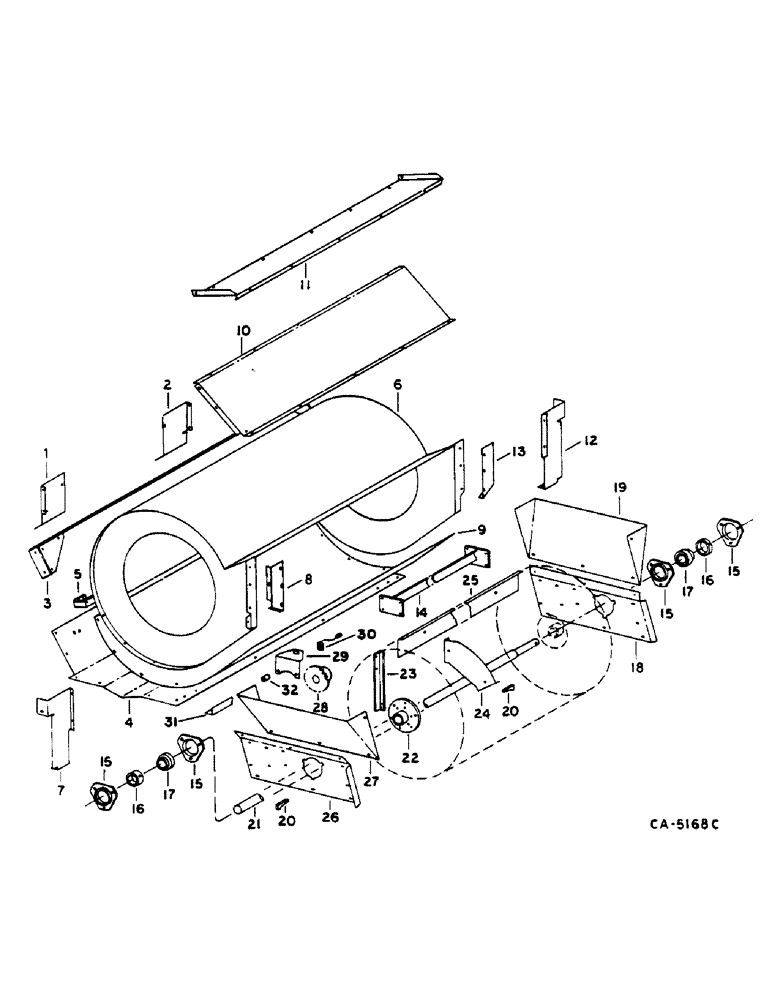

Запчасти Case IH 1460 (17-099) - CLEANING FAN AND SHIELDS Mounted Equipment

1

188112C2

SUPPORT

FAN INTAKE FRONT L.H.

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

2

188113C2

SUPPORT

FAN INTAKE FRONT R.H.

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

3

194712C1

SUPPORT

FAN BOTTOM SHIELD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZND SLT-TRUSS-HD

1шт.

4

194717C1

SUPPORT

FAN BOTTOM

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

5

191706C1

SUPPORT

FAN FRONT SUPPORT

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

1шт.

6

185432C2

HOUSING ASSY.

FAN

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 X 1/2 SLT-TRUSS-HD

1шт.

7

188114C2

SUPPORT

FAN INTAKE REAR L.H.

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

8

186715C1

SUPPORT

FAN SIDE SHEET L.H.

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

1шт.

188472C1

FLANGE NUT,Flg, 1/4"-20

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

1шт.

9

191702C1

SUPPORT

FAN HOUSING BOTTOM

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 X 1/2 SLT-TRUSS-HD

1шт.

10

185043C1

SUPPORT

PAN TO AUGER BED

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

11

185042C1

SUPPORT

CHAFFER FRONT SEAL

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

12

188115C2

SUPPORT

FAN INTAKE REAR R.H.

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

13

186716C1

SUPPORT

FAN SIDE SHEET R.H.

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

1шт.

188472C1

FLANGE NUT,Flg, 1/4"-20

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

1шт.

14

191703C3

SUPPORT ASSY.

FAN REAR

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

15

180955C1

FLANGED BEARING,0.375"

FAN SHAFT BEARING

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZND SLT-TRUSS-HD

1шт.

16

455104R11

COLLAR

FAN BEARING LOCKING

2шт.

17

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

ASSY, FAN

2шт.

17

80498C91

BALL BEARING

FAN, OPTIONAL

2шт.

18

194396C1

SUPPORT

FAN SHAFT BEARING R.H.

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

614452R1

WASHER

.406 X 1.250 X .090

1шт.

19

194398C2

SUPPORT

FAN INTAKE R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

20

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 X 2 GIB

2шт.

21

1309016C1

SHAFT

CLEANING FAN

1шт.

22

185480C1

HUB ASSY.

FAN

1шт.

23

185483C1

BAR

FAN

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

24

185484C1

SUPPORT

CLEANING FAN BLADE

12шт.

25

182928C1

BLADE

CLEANING FAN

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

26

194395C1

SUPPORT

FAN SHAFT BEARING L.H.

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

614452R1

WASHER

.406 X 1.250 X .090

1шт.

27

1311164C1

SUPPORT

FAN INTAKE L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

28

198526C1

SPROCKET ASSY.

FAN SPEED TACH

1шт.

431662

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

3/8 X 3/4 ZNP CUP-PT-HD-LESS

1шт.

29

1301242C1

BRACKET

SUPPORT, FAN SPEED TACH

1шт.

30

1301241C1

SENSOR

CONVERTER, RELUCTANCE PICKUP

1шт.

107827

NUT,Stamped, 3/4"-16

3/14 ZN STAMPED

1шт.

31

NOT USED

1шт.

32

1308813C1

SPACER

2шт.

33

183473C1

SHIELD

ASSY, L.H.

1шт.

34

1311166C1

BRACKET

1шт.

35

1311165C1

BRACKET

1шт.
