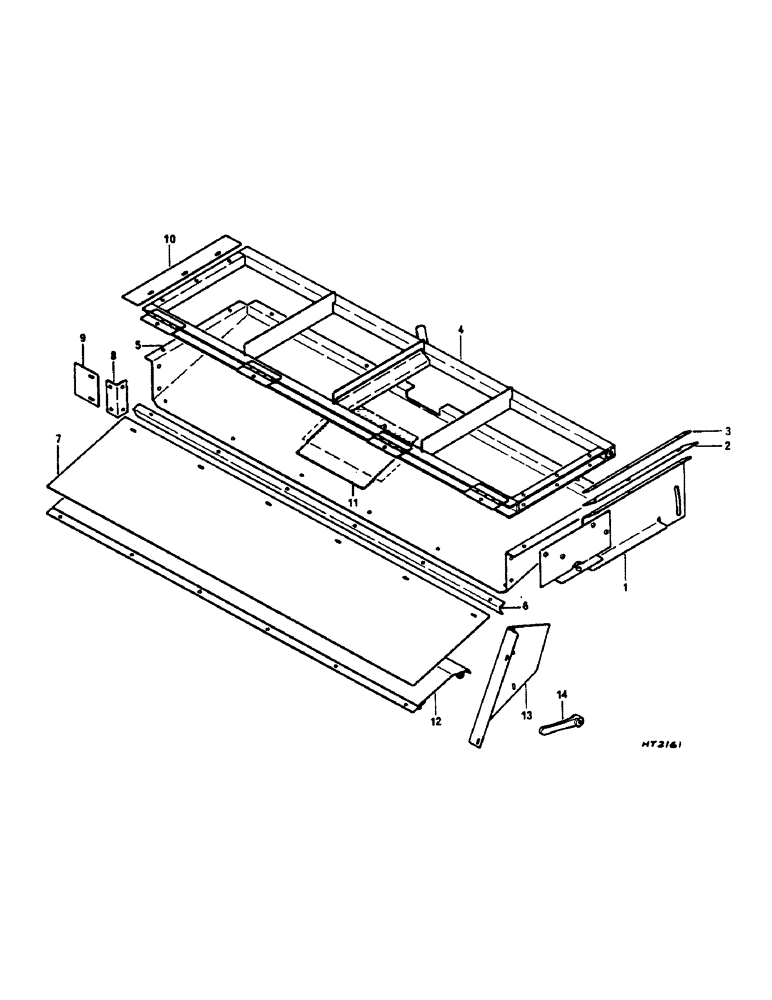

Запчасти Case IH 1460 (17-096) - CHAFFER SIEVE EXTENSION Mounted Equipment

1

1316000C1

SUPPORT ASSY.

CHAFFER FRAME EXTENSION L.H.

1шт.

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

3161013R1

LOCK NUT

M12 FLANGE LOCK

2шт.

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

3164622R1

LOCK NUT

M10 FLANGE LOCK

1шт.

1

1316001C1

SUPPORT ASSY.

CHAFFER FRAME EXTENSION R.H.

1шт.

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

3161013R1

LOCK NUT

M12 FLANGE LOCK

2шт.

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

3164622R1

LOCK NUT

M10 FLANGE LOCK

1шт.

2

1316006C1

SEALING STRIP

CHAFFER FRAME EXTENSION - SEAL

2шт.

3

1316007C1

BAR

CHAFFER FRAME EXTENSION - SEAL

2шт.

931828R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

6шт.

933833R1

LOCK WASHER,M6

6шт.

4

1316012C1

EXTENSION

CHAFFER 1-7/8 CLOZ SLAT

1шт.

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

4шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

933833R1

LOCK WASHER,M6

4шт.

931312R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

933965R1

LOCK WASHER,M10

2шт.

30282R1

WASHER,M10 x 20 x 2

4шт.

5

1316015C1

GUARD

SUPPORT, CHAFFER EXTENSION BOTTOM SHEET

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

8шт.

933833R1

LOCK WASHER,M6

8шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

8шт.

6

1312495C1

ANGLE BAR

SEAL

1шт.

7

1312496C1

SEAL

CHAFFER SEIVE EXTENSION - SEAL

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

933833R1

LOCK WASHER,M6

6шт.

8

1309872C1

ANGLE

CHAFFER EXTENSION SIDE - SEAL

2шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

4шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

4шт.

9

1309873C1

SEAL

CHAFFER EXTENSION SIDE - SEAL

2шт.

3177082R1

SCREW

M8 X 12 SLT-TRUSS-HD

4шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

4шт.

934767R1

WASHER

9 X 22 X 1.5 MM

4шт.

10

1316017C1

SEALING STRIP

CHAFFER EXTENSION SIDE - SEAL

2шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

933833R1

LOCK WASHER,M6

6шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

6шт.

934173R1

WASHER

7 X 14 X 1.2 MM

6шт.

11

1303369C1

SUPPORT ASSY.

CHAFFER EXTENSION BOTTOM DOOR

1шт.

30585R1

PLATE

M6 WING CLASS 5

1шт.

12

1303389C1

SUPPORT ASSY.

CHAFFER EXTENSION TAILGATE

1шт.

13

1303391C1

SUPPORT

HOOD EXTENSION L.H.

1шт.

13

1303392C1

SUPPORT

HOOD EXTENSION R.H.

1шт.

14

3157280R1

HANDLE

LOCKING

2шт.
