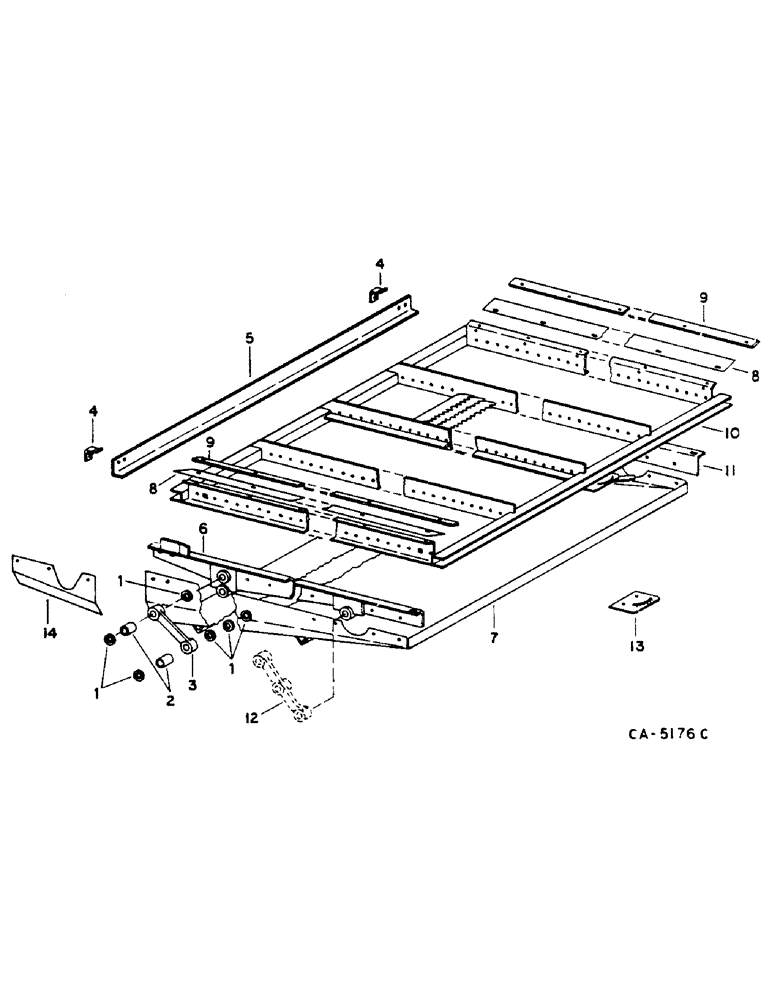

Запчасти Case IH 1460 (17-086) - SHOE SIEVE Mounted Equipment

1

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

SHOE HANGER ARM BUSHING

12шт.

2

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, SHOE HANGER ARM

4шт.

3

175160C91

LEVER

HANGER ASSY, SHOE FRONT, WITH 2

2шт.

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

1шт.

9413969

NUT,5/8"-11, GB

1шт.

4

182684C2

CLIP

SHOE FRONT RETAINER

2шт.

120376

NUT,5/16"-18, G5

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

80681

LOCK WASHER,5/16"

1шт.

5

182693C1

ANGLE

SHOE FRONT

1шт.

120376

NUT,5/16"-18, G5

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZND SLT-TRUSS-HD

1шт.

80681

LOCK WASHER,5/16"

1шт.

6

191754C2

SUPPORT ASSY.

SHOE SIDE L.H. - 1 POSITION

1шт.

6

1302070C1

SUPPORT

ASSY, SHOE SIDE L.H. - 2 POSITION

1шт.

7

191763C1

BOTTOM

ASSY, SHOE

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

8

192192C1

SEALING STRIP

SHOE SIEVE

2шт.

9

192193C1

BAR

SHOE SIEVE SEAL

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 X 1/2 SLT-TRUSS-HD

1шт.

10

192091C2

GRAIN SIEVE

ASSY, SHOE

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

21333R1

NUT,3/8"-16, G8

1шт.

142619H

WASHER

.406 X .750 X .105

1шт.

366862C1

LOCK WASHER,3/8"

1шт.

10

1312334C1

GRAIN SIEVE

SHOE 3 MM RD HOLES - PARTS ACCESSORY

1шт.

10

1312335C1

GRAIN SIEVE

SPARE PART SHOE 5 MM RD HOLES - PARTS ACCESSORY

1шт.

10

3178717R1

SIEVE

SHOE 16 MM RD HOLES - PARTS ACCESSORY

1шт.

10

1302234C1

GRAIN SIEVE

SHOE 1-5/8 CLOSE SLAT - PARTS ACCESSORIES

1шт.

11

191755C2

SUPPORT ASSY.

SHOE SIDE R.H. - 1 POSITION

1шт.

11

1302071C1

SUPPORT

ASSY, SHOE SIDE R.H. - 2 POSITION

1шт.

12

LEVER ASSY, SHOE, SEE CHAFFER SIEVE

1шт.

13

186675C1

ADJUSTING PLATE

SHOE LEVER

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

1шт.

126177

WING NUT

1/4

1шт.

14

1302335C1

SUPPORT

FORWARD SHOE L.H.

1шт.

14

1302336C1

SUPPORT ASSY.

FORWARD SHOE R.H.

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

15

1311151C1

GUARD ASSY.

SHIELD, L.H. HANGER

1шт.

15

1311152C1

GUARD ASSY.

SHIELD, R.H. HANGER

1шт.
