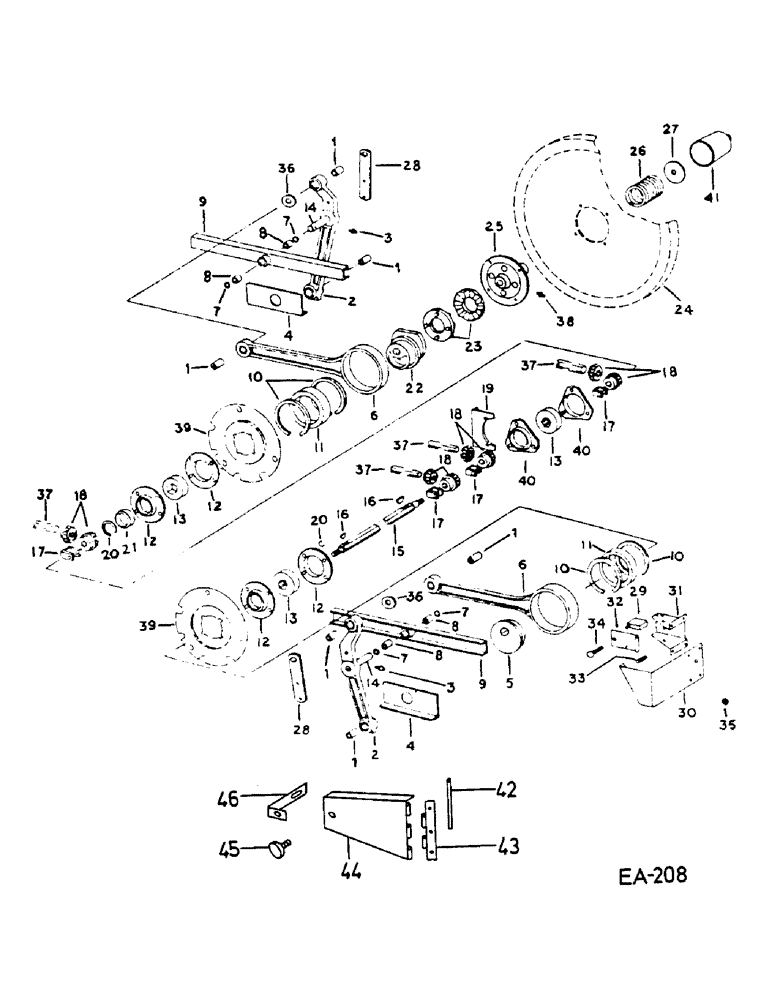

Запчасти Case IH 1460 (17-082) - SHAKER SHAFT AND AUGER DRIVE Mounted Equipment

1

186597C1

BUSHING,16mm ID x 38.23mm OD x 44.7mm L

CHAFFER DRIVE HANGER ARM

1шт.

2

186667C91

LEVER ASSY.

CHAFFER DRIVE HANGER, WITH 1, 14

2шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

1шт.

9413969

NUT,5/8"-11, GB

1шт.

608701R1

WASHER

.656 X 1.250 X .054

1шт.

3

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4 45 DEG. LUB

2шт.

4

1312749C1

SUPPORT

SEAL CHAFFER RAIL

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

1шт.

80681

LOCK WASHER,5/16"

1шт.

134238R1

WASHER

.344 X 1.000 X .054

1шт.

5

183053C2

ECCENTRIC

CAM, SHAKER SHAFT PITMAN DRIVE L.H.

1шт.

6

186738C91

PITMAN

SHAKER SHAFT, WITH 1

2шт.

7

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

FRONT HANGER SUPPORT BEARING

4шт.

8

551139R91

BEARING, NEEDLE

FRONT HANGER SUPPORT

4шт.

9

186651C91

SUPPORT ASSY.

FRONT HANGER, WITH 7, 8

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

10

630508C1

RING

SHAKER SHAFT PITMAN BRG SNAP

4шт.

11

193132C91

BALL BEARING,82.55mm ID x 120.65mm OD x 25.4mm W

SHAKER SHAFT PITMAN

2шт.

12

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

SHAKER SHAFT BEARING - 4 BOLT

4шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

13

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

SHAKER SHAFT

3шт.

14

186740C1

PIN,22.25mm OD x 147.32mm L

SHAFT, HANGER ARM

2шт.

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

21714R1

WASHER

.906 X 1.500 X .105

1шт.

21761R1

WASHER

.906 X 1.500 X .054

1шт.

15

183051C1

SHAFT

SHAKER

1шт.

9413971

LOCK NUT,3/4"-10, GB

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

1шт.

23245R1

WASHER

.781 X 1.750 X .164

1шт.

22482R1

WASHER

1.406 X 2.250 X .105

1шт.

16

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

17

225265R1

CLAMP

AUGER BED GEAR

4шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

18

1300639C1

GEAR-SET

AUGER DRIVE - 14T - MATCHED SET

4шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

1шт.

19

186589C1

SUPPORT

AUGER DRIVE CENTRE BRG

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

20

575186R1

SNAP RING

SHAKER SHAFT PITMAN

1шт.

21

935856R1

BUSHING

SHAKER SHAFT PITMAN

1шт.

22

191429C2

CAM

SHAKER SHAFT PITMAN DRIVE R.H.

1шт.

23

B12170

RATCHET,Clutch Slip, 94.49mm

SHAKER SHAFT DRIVE SLIP CLUTCH

2шт.

24

PULLEY, SHAKER SHAFT DRIVEN, SEE R. H. DRIVE

1шт.

25

1303136C1

HUB

SHAKER SHAFT DRIVE SLIP CLUTCH

1шт.

26

19302K

SPRING

SHAKER SHAFT DRIVE SLIP CLUTCH

2шт.

27

736600R1

WASHER

SLIP CLUTCH RETAINER

1шт.

28

186752C1

BAR

PITMAN STABILIZER

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

29

574649R91

SWITCH

ASSY, AUGER ALARM

1шт.

134530

NUT,Hex, #6 - 32

1шт.

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

1шт.

492-11006

LOCK WASHER,#6

1шт.

495-31016

WASHER,#6

1шт.

30

1309429C2

SUPPORT

AUGER ALARM BRACKET

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

31

167323C1

SUPPORT

AUGER ALARM SWITCH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

21963R1

HEADED PIN,1/4" x 2 1/2"

1/4 X 2.500 HD TYPE 1

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

21870R1

WASHER

17/64 X 3/4 X 16 GA C-Z

1шт.

32

167324C1

HINGE

STRIP, AUGER ALARM SWITCH

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

23099R1

HEADED PIN,5/16" x 3"

5/16 X 3 ZND STD-HD

1шт.

33

M296

SPRING

ALARM SWITCH STRAP RETURN

1шт.

34

194304C1

STOP

ASSY, AUGER ALARM SWITCH

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

35

109360

GROMMET

5/16 ID X .72 OD

1шт.

36

608701R1

WASHER

1шт.

37

AUGER ASSY, SEE AUGER BED

4шт.

38

87414

LUBE NIPPLE,1/4" - 28

1шт.

39

1302221C1

PLATE

SHAKER SHAFT

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

40

180955C1

FLANGED BEARING,0.375"

CENTRE SHAKER SHAFT BEARING

2шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

41

182544C1

SHIELD

SHAKER SHAFT SPRING

1шт.

42

1311127C1

AXLE

HINGE

1шт.

3176217R1

WASHER

M8 X 16 X 1.5

2шт.

934790R1

COTTER PIN,M3.2 x 16

M3.2 x 16

2шт.

43

1311126C1

HINGE

1шт.

3164608R1

BOLT,Flange, M10 x 1.5 x 20mm, Steel

2шт.

3164622R1

LOCK NUT

M10 HEX THI-BLOC

2шт.

44

1311122C1

GUARD ASSY.

SHIELD ASSY, PITMAN SHAKER SHAFT

1шт.

45

792511R1

HANDLE, LOCKING

1шт.

3176217R1

WASHER

M8 X 16 X 1.5

1шт.

934310R1

NUT,M8, Cl 8

1шт.

46

1311128C1

SUPPORT ASSY.

1шт.
