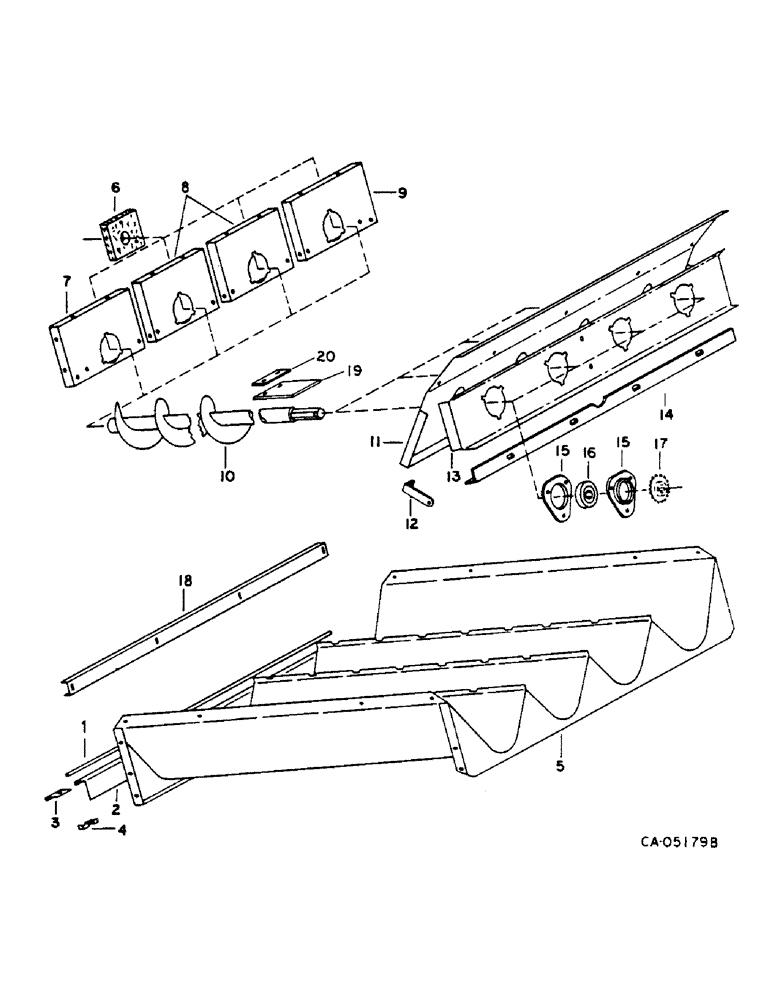

Запчасти Case IH 1460 (17-079) - AUGER BED Mounted Equipment

1

NOT USED

1шт.

2

NOT USED

1шт.

3

NOT USED

1шт.

4

NOT USED

1шт.

5

185038C3

TRAY

ASSY, AUGER

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 SLT-TRUSS-HD

1шт.

6

193414C2

BOARD

FRONT AUGER BED

4шт.

27451R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

1шт.

120394

WASHER,3/8", SAE

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

7

191662C1

SUPPORT

FRONT AUGER L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZND SLT-TRUSS-HD

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

8

191659C1

SUPPORT

FRONT AUGER CENTRE

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

9

191663C1

SUPPORT

FRONT AUGER R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZND SLT-TRUSS-HD

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

10

1308541C1

AUGER

ASSY, R.H. ROTATION

4шт.

21290R1

WASHER

1.344 X 2.000 X .054

1шт.

21779R1

WASHER

1.344 X 2.000 X .105

1шт.

11

193556C1

FILLER

ROTOR TO AUGER DRIVE SUPPORT

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

12

193554C1

SUPPORT

PAN

2шт.

13

1309225C1

SUPPORT

AUGER DRIVE GEARS

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

14

188359C1

ANGLE

AUGER SUPPORT STIFFENER

1шт.

15

571424R1

FLANGE

AUGER BEARING

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

161945R1

SCREW, 5/16 X 1 ZNP SLT-TRUSS-HD

1шт.

16

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

AUGER DRIVE

4шт.

P/N 195293C91 IS A SINGLE BEARING AND P/N B91449 IS A PACK OF 10 OF P/N 195293C91. MJP 2000

1шт.

17

GEAR, AUGER DRIVE BEVEL - 17T - MATCHED SET - SEE SHAKER SHAFT AND AUGER DRIVE

1шт.

18

185067C1

COVER

AUGER TROUGH CLEAN OUT

1шт.

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

CLEAN OUT COVER WING

1шт.

19

1302112C1

STRIP

AUGER BED GRAIN SPREADER

1шт.

20

1302113C1

BAR

GRAIN SPREADER STRIP

1шт.

279027R91

CLAMP,#28, 1.31/2.25 Type F Worm

NO. 28 TYPE F

1шт.

1300666C91

KIT

PACKAGE, AUGER BED GRAIN SPREADER - NOT ILLUSTRATED - PARTS ACCESSORIES - CONSISTS OF

1шт.

1302112C1

STRIP

1шт.

1302113C1

BAR

1шт.
