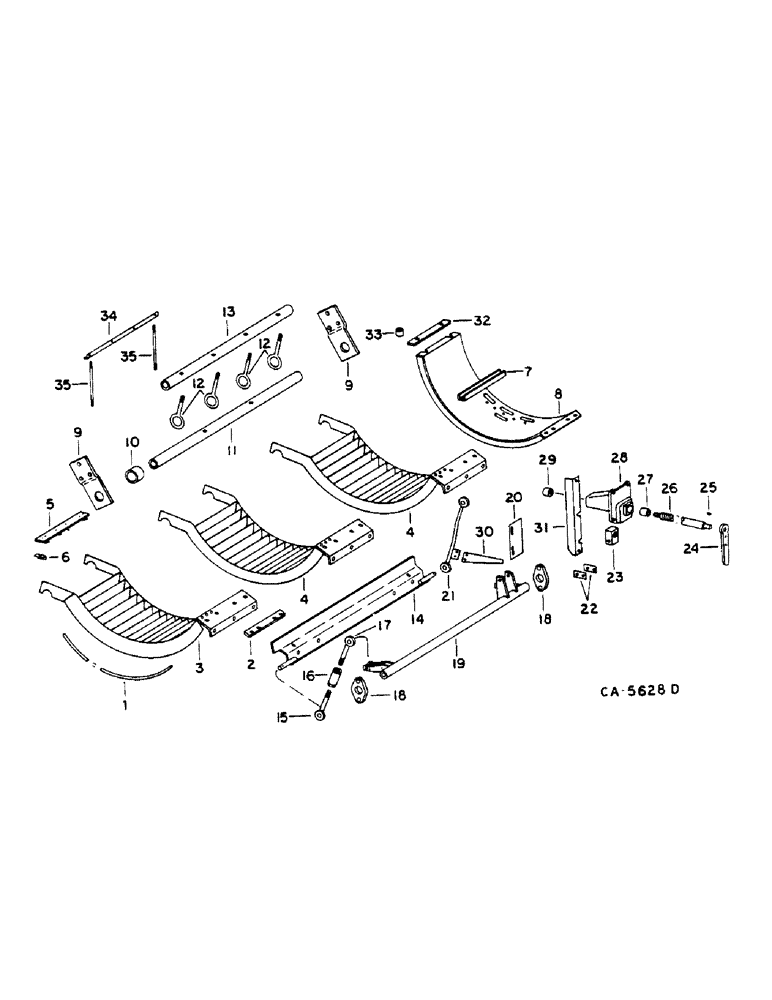

Запчасти Case IH 1460 (17-075) - CONCAVE AND CONTROL Mounted Equipment

1

1302602C2

ROD

CONCAVE - 3/16 IN. DIA. X 28.81 IN. LG

90шт.

1

1302601C2

STEM

ROD, CONCAVE - 1/4 IN. DIA. X 28.85 IN. LG

42шт.

2

193859C1

PLATE

CONCAVE WIRE RETAINER

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

3

1309391C1

CONCAVE

ASSY, FRONT, WITH REF. 1 - 1302602C2

1шт.

3

1309390C1

CONCAVE

ASSY, FRONT, WITH REF. 1 - 1302601C2

1шт.

4

1309395C1

CONCAVE

ASSY, NO. 2 AND 3, WITH REF. 1 - 1302602C2

2шт.

4

1309394C1

CONCAVE

ASSY, NO. 2 AND 3, WITH REF. 1 - 1302601C2

2шт.

5

NOT USED

1шт.

6

NOT USED

1шт.

7

191536C1

CHANNEL

GRATE ADJUSTING

21шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

8

191538C3

GRATE ASSY.

SLOTTED

3шт.

8

182737C4

GRATE ASSY.

KEYSTOCK

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

14шт.

1302788C1

FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1 1/4", Gr 8

10шт.

1302787C1

FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1", Gr 8

4шт.

9

195253C1

SUPPORT

CONCAVE ANCHOR

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

1/2 X 1-1/4 HEX-HD FLANGE W/SCOTCH GRIP

1шт.

10

1319060C1

SPACER

2.0625 ID X 2.5 OD X 2.05

1шт.

11

186392C1

PIPE

CONCAVE CONTROL

1шт.

12

195254C1

BOLT,1/2" - 13 x 6"

CONCAVE CLAMP EYE

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

13

193790C1

PIPE

CONCAVE PIPE

1шт.

14

191401C1

SUPPORT ASSY.

CONCAVE ANCHOR

1шт.

1302787C1

FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1", Gr 8

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

18481R1

COTTER PIN,3/16" x 1"

1шт.

607895R1

WASHER

.531 X 1 000 X .105

1шт.

15

191411C1

BOLT,1/2" - 13 x 147mm, RH Thd

CONCAVE ADJ R.H. THREAD

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

18481R1

COTTER PIN,3/16" x 1"

1шт.

21939R1

HEADED PIN,1/2" x 1 7/16"

1/2 X 1-7/16 ZND STD-HD

1шт.

16

M383D

TURNBUCKLE

CONCAVE ADJUSTING

1шт.

17

191410C1

BOLT,1/2" - 13 x 147mm, LH Thd

CONCAVE ADJ L.H. THREAD

1шт.

18

192890C1

HUB

CONCAVE CONTROL SHAFT

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

19

191423C1

LEVER ASSY.

CONCAVE CONTROL

1шт.

18481R1

COTTER PIN,3/16" x 1"

1шт.

21939R1

HEADED PIN,1/2" x 1 7/16"

1/2 X 1.438 HD TYPE 1

1шт.

20

188168C1

PLATE

CONCAVE INDICATOR

1шт.

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

1шт.

21

188345C2

ROD ASSY.

CONCAVE CONTROL

1шт.

18481R1

COTTER PIN,3/16" x 1"

1шт.

21939R1

HEADED PIN,1/2" x 1 7/16"

1/2 X 1-7/16 ZND STD-HD

1шт.

22

192888C1

PLATE

CONCAVE CONTROL UPPER

2шт.

18481R1

COTTER PIN,3/16" x 1"

1шт.

22899R1

HEADED PIN,1/2" x 2 3/8"

1шт.

21814R1

HEADED PIN,1/2" x 3"

1/2 X 3. HD TYPE 1

1шт.

23

192886C1

NUT

CONCAVE CONTROL ADJUSTING

1шт.

24

170282C1

HANDLE

CONCAVE CONTROL RATCHET

1шт.

25

106751

KEY

3/16 X 3/4 WOODRUFF

1шт.

26

192885C1

SHAFT

CONCAVE ADJUSTING

1шт.

20033R1

LOCK NUT

5/8 ZND NYLON INSERT HEX

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

1шт.

27

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

CONCAVE CONTROL HOUSING

1шт.

28

192883C93

SUPPORT

HOUSING ASSY, CONCAVE CONTROL, WITH 27, 29

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

29

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

CONCAVE CONTROL HOUSING

1шт.

30

194091C1

BAR

CONCAVE INDICATOR

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 X 1/2 SLT-TRUSS-HD

1шт.

31

182577C1

ANGLE

HOUSING SUPPORT

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

32

186784C2

BAR

GRATE HANGER

3шт.

33

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

Grate and Cage Bar

6шт.

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

495-11053

WASHER,1/2", SAE

1шт.

359787C1

LOCK NUT,1/2"-13, GC

1шт.

34

186399C1

SUPPORT

CONCAVE TRUSS ROD

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

35

186776C1

ROD

BOLT, CONCAVE TRUSS

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

1300673C91

PACKAGE

CONCAVE FILLER - FOR 3/16 IN. DIA. ROD - NOT ILLUSTRATED - PARTS ACCESSORIES - CONSISTS OF

1шт.

1309425C1

CHANNEL

6шт.
