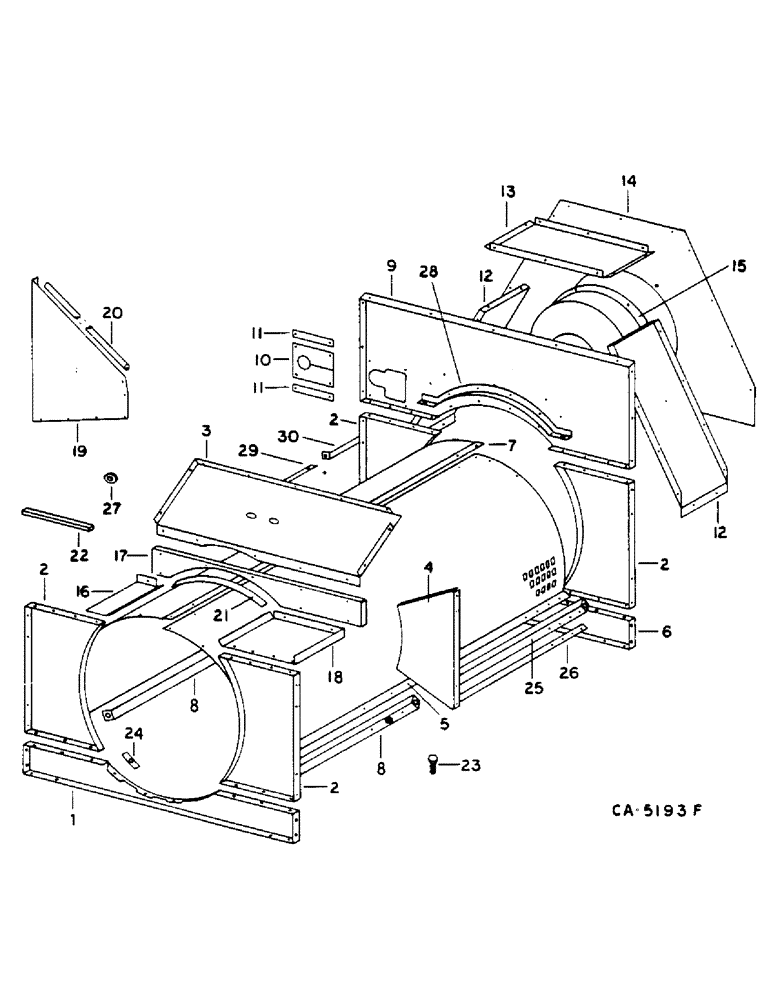

Запчасти Case IH 1460 (17-069) - CAGE Mounted Equipment

1

192297C2

SUPPORT

LOWER SEAL

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

2

191267C2

SUPPORT

ROTOR CAGE FRONT AND REAR

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

W/Scotch Grip

1шт.

3

193152C1

SUPPORT

FRONT GRAIN TANK

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

4

191246C2

SUPPORT

ROTOR CAGE MIDDLE

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

W/Scotch Grip

1шт.

5

191847C5

SUPPORT

ROTOR SOLID L.H.

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

6

SUPPORT, REAR LOWER CAGE - SEE DISCHARGE BEATER BOTTOM

1шт.

7

191271C5

SUPPORT

ROTOR R.H.

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

8

188333C1

SUPPORT

CAGE L.H. AND R.H.

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

W/Scotch Grip

1шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW, 1/2 X 1 HEX-HD FLANGE W/SCOTCH GRIP

1шт.

186917C1

SCREW

3/8 X 1 SLT-TRUSS-HD W/SCOTCH GRIP

1шт.

9

192023C2

SUPPORT ASSY.

ROTOR REAR UPPER

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

10

191191C2

GASKET,6.35mm Thk

DRIVE LINE DUST

1шт.

11

191192C1

BAR

DUST SEAL SHEET REINFORCEMENT

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

12

193169C1

SUPPORT

DISCHARGE SIDE

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

13

193170C1

COVER

DISCHARGE TOP

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

1шт.

14

193966C1

PLATE

DISCHARGE BACK

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

15

182545C1

HOUSING

RETAINER, ROTOR REAR CASE

1шт.

16

193862C1

SUPPORT

GEAR CASE INNER EXTENSION

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

17

186169C1

SUPPORT

GRAIN TANK TO CAGE TOP

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

18

186168C1

SUPPORT

SIDE SHEET TO CAGE FORWARD LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

19

191398C2

SHEET

SUPPORT, GEAR CASE INNER

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

20

191498C1

SEALING STRIP

GEAR CASE SUPPORT - 20.8 IN.

1шт.

21

1302670C1

STRIP

FRONT GRAIN TANK SUPPORT - 26.0 IN.

1шт.

22

318103R1

SEAL

FRONT GRAIN TANK SUPPORT

1шт.

23

352657C1

BOLT,Hex, 1/2" - 13 x 2"

CONCAVE STOP

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1шт.

24

186797C2

SUPPORT

CAGE FILLER

2шт.

25

185386C1

SUPPORT

CAGE L.H.

1шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW, 1/2 X 1 HEX FLG W/SCOTCH GRIP

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

26

183323C1

STRAP

CAGE GRATE

1шт.

27

198822C1

GROMMET,6.35mm ID x 41.1mm OD x 26.9mm Thk

GRAIN TANK TO CAGE SUPPORT

1шт.

27

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

GRAIN TANK TO CAGE SUPPORT

1шт.

27

195803C1

GROMMET

CASE INNER SHEET HOLE

1шт.

28

1308695C1

SUPPORT

REAR UPPER CAGE

1шт.

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

W/Scotch Grip

1шт.

29

186785C2

REINFORCEMENT

CAGE REINFORCEMENT FRONT

1шт.

30

182634C2

SUPPORT

CAGE GRATE REAR

1шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW, 1/2 X 1 HEX FLG W/SCOTCH GRIP

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.
