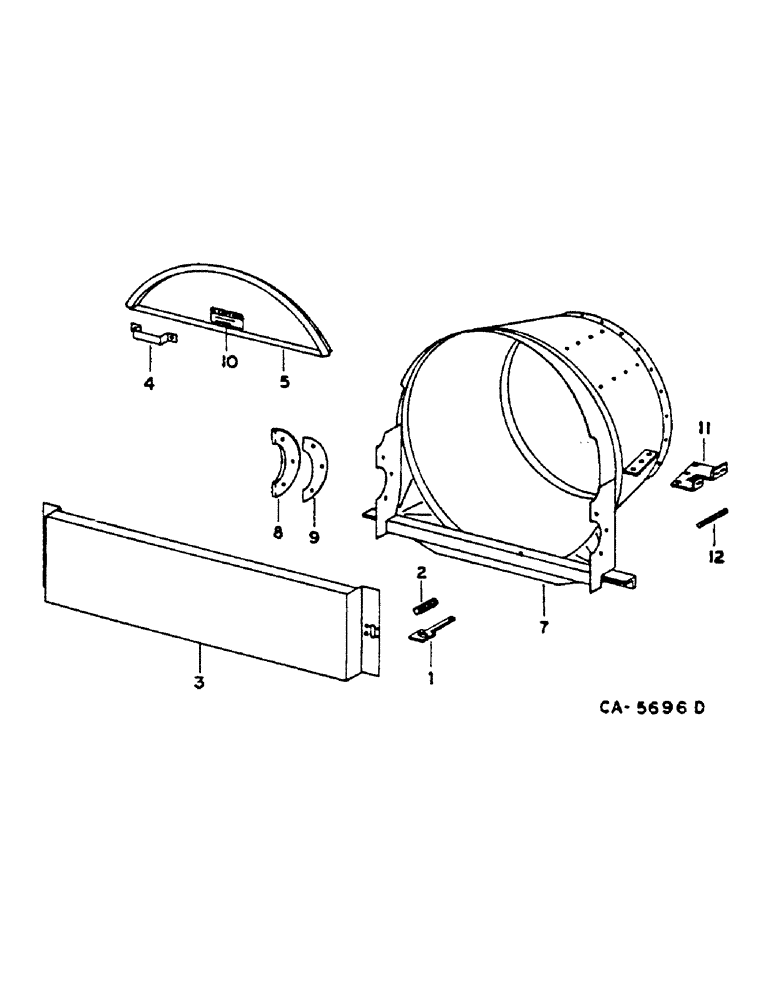

Запчасти Case IH 1460 (17-067) - CONE Mounted Equipment

1

454502R1

LATCH

SEPARATOR FRONT DOOR

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

120394

WASHER,3/8", SAE

1шт.

2

M296

SPRING

FRONT DOOR LATCH

2шт.

3

193436C2

DOOR

SEPARATOR FRONT

1шт.

4

160638C1

HANDLE

ROTOR FRONT DOOR

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

5

1312399C91

DOOR

ROTOR FRONT, WITH 10

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 ZNP SLT-TRUSS-HD

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

6

NOT USED

1шт.

7

186798C5

HOUSING

BEARING ASSY, TRANSITION

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

186917C1

SCREW

3/8 X 1 FLANGE LOCK W/SCOTCH GRIP

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

8

195202C1

SEAL

FEEDER

2шт.

9

195409C1

PLATE

SEAL BACKUP

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

10

1312071C1

PRODUCT GRAPHIC

DANGER

1шт.

11

1302141C1

SUPPORT

L.H. POCKET

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

12

120253C1

CONDUIT

L.H. PACKET SUPPORT - 8.25 IN.

1шт.
