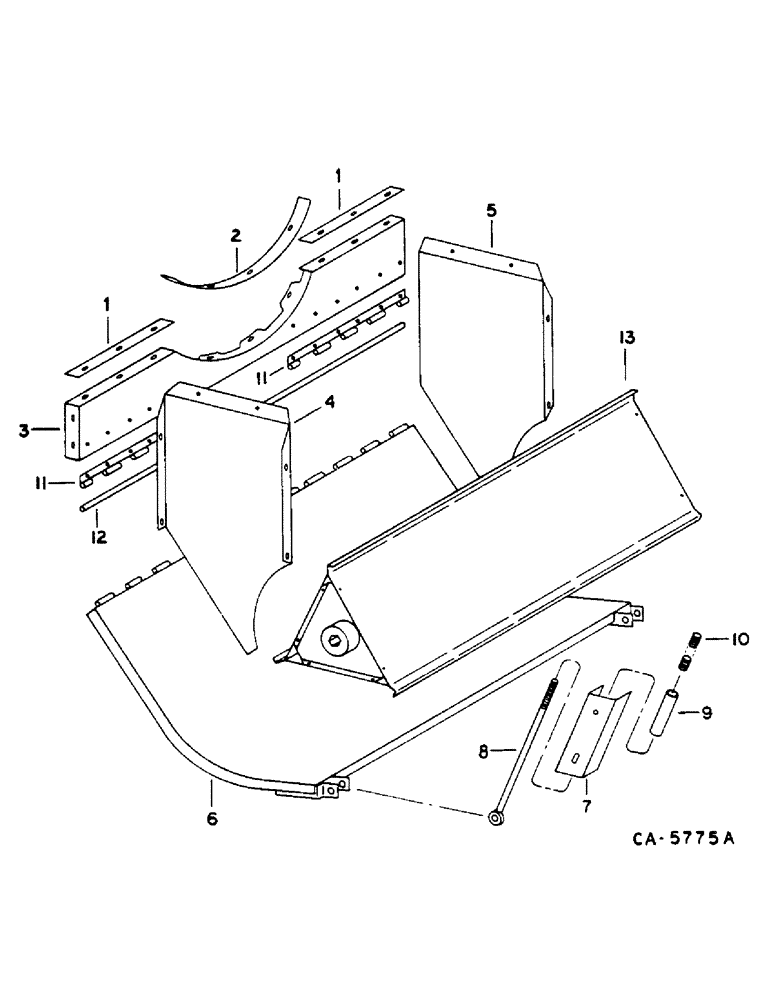

Запчасти Case IH 1460 (17-065) - DISCHARGE BEATER BOTTOM, SPRING LOADED Mounted Equipment

1

182891C1

PLATE

FILLER, BULKHEAD REAR

2шт.

2

182898C1

SUPPORT

STRIP, CAGE FILLER REAR

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

3

182929C1

SUPPORT

REAR LOWER CAGE

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

4

182946C1

DEFLECTOR

DISCHARGE L.H.

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

5

182947C1

DEFLECTOR

DISCHARGE R.H.

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

6

182924C2

DOOR

BOTTOM ASSY, BEATER

1шт.

7

182896C1

SUPPORT

BOTTOM SPRING

2шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

359783C1

LOCK NUT

3/8 CAD P/T LOCK TYPE 8

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

1шт.

186917C1

SCREW

BOLT, 3/8 X 3/4 W/SCOTCH GRIP

1шт.

8

182892C1

BOLT

BEATER BOTTOM EYE

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

22770R1

WASHER

.531 X 1.500 X .164

1шт.

9

182981C1

SPACER

SPACER, BEATER BOTTOM

2шт.

10

391745R1

SPRING

BEATER BOTTOM

2шт.

21806R1

HEADED PIN,1/2" x 1 3/4"

1/2 X 1.750 HD TYPE 1

1шт.

18481R1

COTTER PIN,3/16" x 1"

1шт.

11

182894C1

HINGE

BEATER BOTTOM

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

12

182977C1

ROD

BOTTOM HINGE

1шт.

13

BEATER ASSY, DISCHARGE, SEE DISCHARGE BEATER

1шт.
