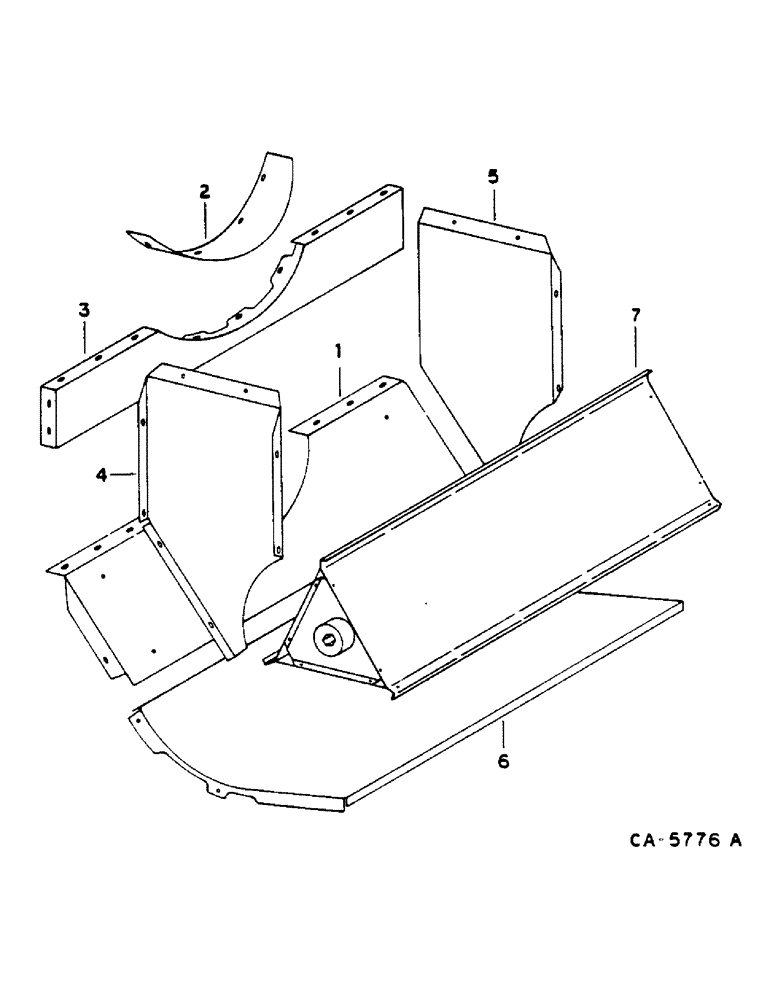

Запчасти Case IH 1460 (17-063) - DISCHARGE BEATER BOTTOM, FIXED Mounted Equipment

1

192028C2

SUPPORT

BEATER DISCHARGE

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

2

193909C2

SUPPORT

BEATER BOTTOM FRONT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

3

182929C1

SUPPORT

REAR LOWER CAGE - REPLACES 192297C2

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

4

193452C1

DEFLECTOR

DISCHARGE LEFT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

150031R1

SCREW, 3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

5

193453C1

DEFLECTOR

DISCHARGE RIGHT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

6

195426C2

TROUGH

BOTTOM ASSY, REAR BEATER

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

1шт.

7

BEATER ASSY, DISCHARGE, SEE DISCHARGE BEATER

1шт.
