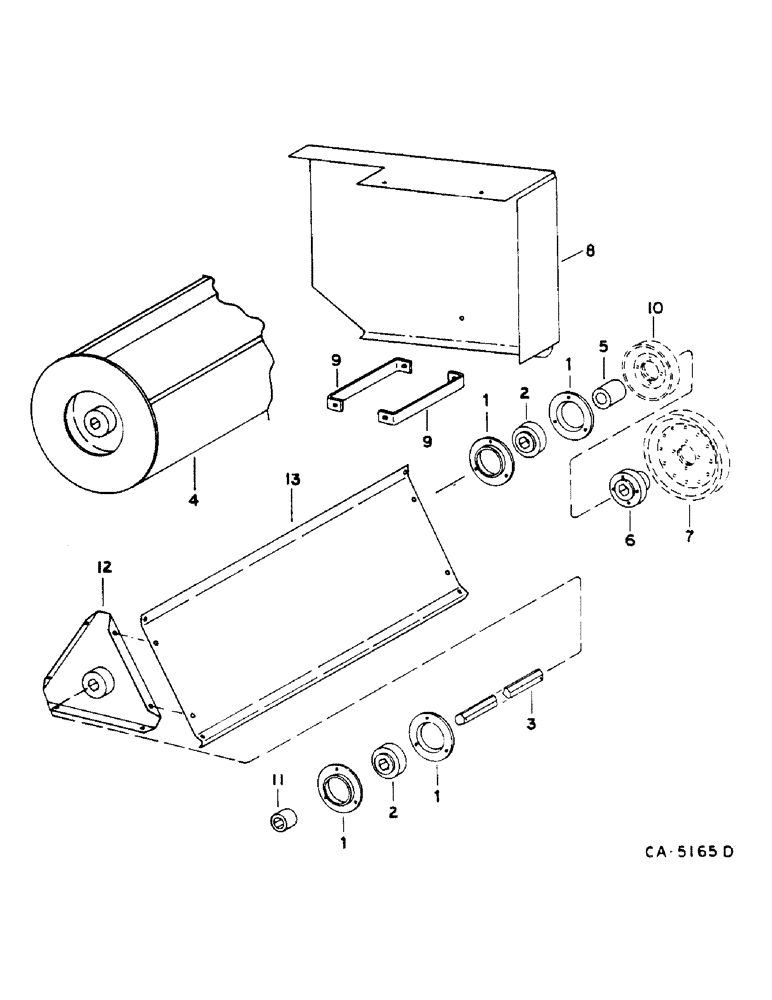

Запчасти Case IH 1460 (17-060) - DISCHARGE BEATER Mounted Equipment

1

180955C1

FLANGED BEARING,0.375"

BEATER BEARING

4шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

2

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

DISCHARGE BEATER

2шт.

3

1302175C1

SHAFT

BAR, DISCHARGE BEATER

1шт.

21779R1

WASHER

1.344 X 2.0 X .105

1шт.

21290R1

WASHER

1.344 X 2.000 X .054

1шт.

4

NOT USED

1шт.

5

632147R1

SPACER

BEATER DRIVEN PULLEY

1шт.

21779R1

WASHER

1.344 X 2.0 X .105

1шт.

6

1319402C1

HUB

BEATER DRIVEN PULLEY

1шт.

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

3169585R1

LOCK NUT,M12 x 1.75, Cl 8

1шт.

30185R1

WASHER,M12 x 28.5 x 4, HT

13.8 X 28 X 4 MM PHC

1шт.

7

PULLEY ASSY, BEATER DRIVE, SEE R. H. DRIVES

1шт.

8

NOT USED

1шт.

9

NOT USED

1шт.

10

PULLEY ASSY, STRAW SPREADER DRIVE - SEE STRAW SPREADER DRIVE

1шт.

11

1302104C1

HUB

BEATER FIXED

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

1шт.

12

183129C3

HUB ASSY.

TRIANGULAR BEATER

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

13

183150C1

SHEET

BLADE, TRIANGULAR BEATER

3шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

14

1311137C1

SHIELD

BEATER DRIVE

1шт.

15

1311144C1

ROD

SHIELD

1шт.

16

1311156C1

SUPPORT

SPARE PART SHIELD

1шт.

17

1311143C1

BRACKET

UPPER

2шт.

3175745R1

BOLT,Hex Flange, M8 x 1.25 x 16mm, Steel

6шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

6шт.

934767R1

WASHER

9 X 22 X 1.5 MM FLAT

6шт.

18

1311146C1

BRACKET

LOWER REAR

1шт.

3175745R1

BOLT,Hex Flange, M8 x 1.25 x 16mm, Steel

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

2шт.

19

1311145C1

BRACKET

SPARE PART LOWER

1шт.

3179016R1

BOLT,Hex Flange, M8 x 1.25 x 12mm, Steel

1шт.

3175745R1

BOLT,Hex Flange, M8 x 1.25 x 16mm, Steel

1шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

1шт.

934767R1

WASHER

M9 X 22 X 1.5

1шт.

20

760109R1

CLIP

1шт.
