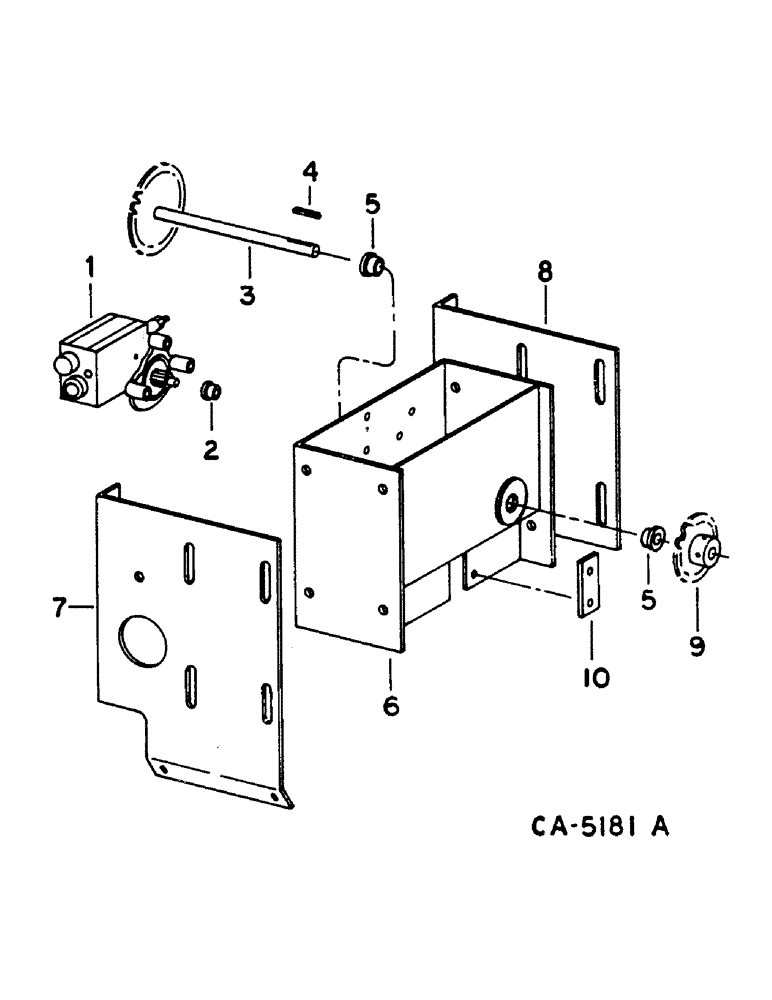

Запчасти Case IH 1460 (17-051) - ROTOR DRIVE ADJUSTMENT Mounted Equipment

1

126573C1

MOTOR, ELECTRIC

ASSY, VARIABLE

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

21843R1

WASHER

.406 X 1.000 X .209

1шт.

2

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

ELECTRIC MOTOR

1шт.

3

194338C1

GEAR

ROTOR GEAR

1шт.

17080R1

LOCK PIN,5/32" x 1 1/4", Slotted

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

4

Q5024

KEY,3/16" Sq x 1", Par

1шт.

5

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

GEAR SHAFT

2шт.

6

183227C1

SUPPORT ASSY.

MOTOR

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

20803R1

WASHER

.406 X 1.000 X .105

1шт.

7

188203C2

SUPPORT

ROTOR ADJUSTING MOTOR L.H.

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

1шт.

8

194336C2

SUPPORT

ROTOR ADJUSTING MOTOR RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

614452R1

WASHER

.406 X 1.250 X .090

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

9

194337C1

SPROCKET

CONTROL - 8T

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

127796

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

1шт.

10

1302173C1

PAD

MOTOR SUPPORT CUSHION

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120394

WASHER,3/8", SAE

1шт.

CHAIN ASSY, VARIABLE DRIVE - NOT ILLUSTRATED - USE 31 LINKS FROM BULK LENGTH - USED WITH 1 - 457113R91, 2 - 457114R91

1шт.

569088R91

CHAIN (AG)

BULK LENGTH 10 FT

1шт.

457113R91

CHAIN LINK

CONNECTING

1шт.

457114R91

CHAIN LINK

OFFSET

1шт.
