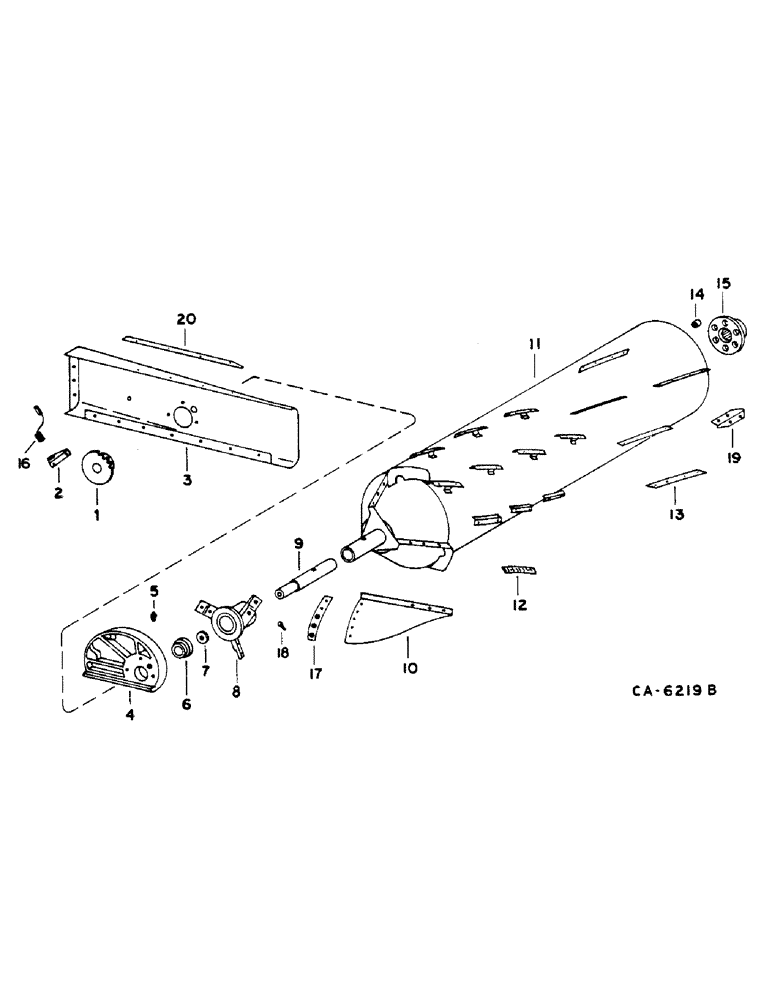

Запчасти Case IH 1460 (17-047) - ROTOR, RICE AND EDIBLE BEAN Mounted Equipment

1

ROTOR, MULTI-POSITION TACHOMETER ROTOR SPEED MAGNETIC PICKUP - SEE ROTOR - GRAIN AND CORN

1шт.

2

SUPPORT, ROTOR TACHOMETER MAGNETIC - SEE ROTOR - GRAIN AND CORN

1шт.

3

SUPPORT ASSY, FRONT BEARING - SEE ROTOR - GRAIN AND CORN

1шт.

4

192956C2

HOUSING

ROTOR FRONT BEARING

1шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

1шт.

18687R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 2

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120384

WASHER,1/2"

1шт.

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

FRONT BEARING HOUSING

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

80681

LOCK WASHER,5/16"

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

1шт.

6

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

ASSY, ROTOR FRONT

1шт.

7

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

ROTOR FRONT SHAFT

1шт.

8

191546C2

IMPELLER

ROTOR FRONT

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

1шт.

22109R1

HEADED PIN

3/4 X 4.500 HD TYPE 5

1шт.

9

191545C1

SHAFT

ROD, ROTOR FRONT

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

22811R1

WASHER

2.031 X 2.750 X .067

1шт.

10

1309130C1

BLADE

ROTOR - SET OF 3

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1шт.

9412230

LOCK NUT

1/2 PHC P/T LOCK TYPE 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

11

181045C95

ROTOR

ASSY, THRESHING - WITH 8, 9, 10, 12 - 15, 17, 18

1шт.

12

1309122C1

RASP BAR

HELICAL 120 DEG. - SET OF 3

7шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

1шт.

13

181072C2

BAR

ROTOR REAR HELICAL - SET OF 3

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

1шт.

14

180703C1

PACKAGE,SERVICE

INSULATOR, ROTOR DRIVE HUB - SET OF 6

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1шт.

120384

WASHER,1/2"

1шт.

460908R1

WASHER

.531 X 1.500 X .105

1шт.

15

185166C91

HUB

ROTOR DRIVE, WITH 14

1шт.

16

GAUGE, RELUCTANCE PICKUP - SEE ROTOR - GRAIN AND CORN

1шт.

17

1309310C1

KIT

BAR, WEAR/REINFORCING - CHROME - SET OF 3, WITH 18

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

9412230

LOCK NUT

1/2 PHC P/T LOCK TYPE 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

1шт.

18

183254C1

HEX SOC SCREW,Flat Hd, 1/2"-13 x 1 1/2"

WEAR REINFORCING

9шт.

9412230

LOCK NUT

1/2 PHC P/T LOCK TYPE 8

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

1шт.

19

180951C91

EXTENSION

PACKAGE, ROTOR REAR BAR - SET OF 3

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

1шт.

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

1шт.

20

BAR, ROTOR FRONT DOOR HOLD DOWN - SEE ROTOR - GRAIN AND CORN

1шт.

1300682C91

PACKAGE

ASSY, ROTOR BLADES AND BARS, NOT ILLUSTRATED, CONSISTS OF 10, 12, 13, 17

1шт.
