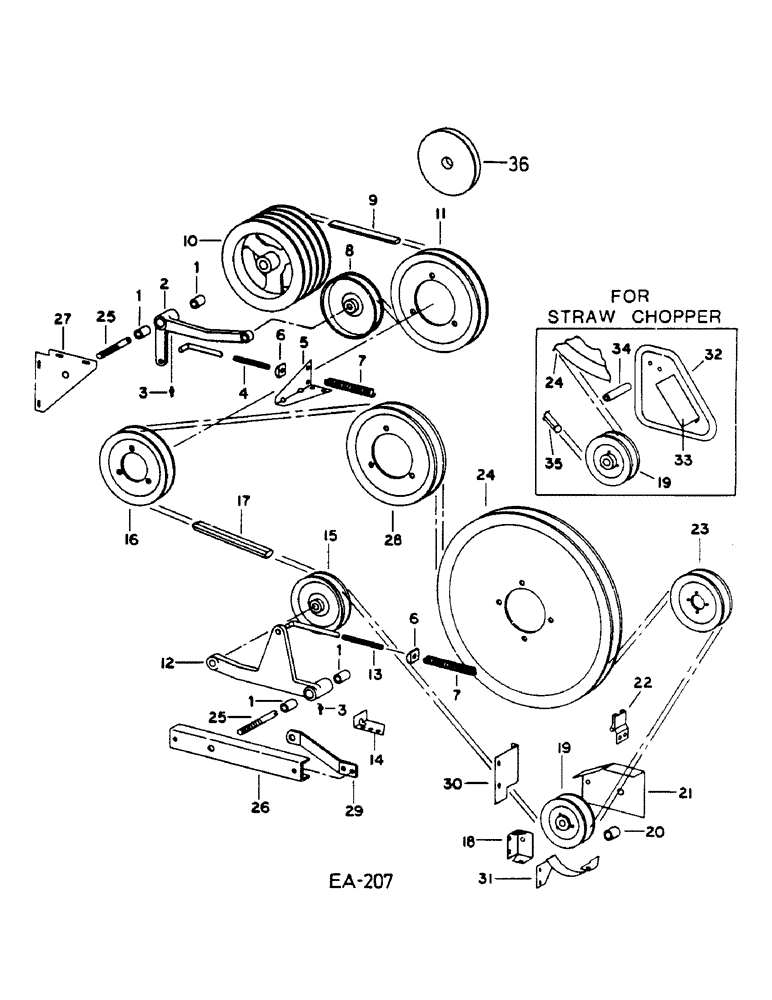

Запчасти Case IH 1460 (17-039) - BELT DRIVE, RIGHT-HAND SIDE Mounted Equipment

1

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

FAN JACKSHAFT DRIVE

4шт.

2

191529C91

LEVER ASSY.

FAN JACKSHAFT DRIVE. WITH 1

1шт.

495-11081

WASHER,3/4", SAE

1шт.

3

87414

LUBE NIPPLE,1/4" - 28

2шт.

4

174520C2

ROD

FAN JACKSHAFT DRIVE ARM

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

1шт.

495-11053

WASHER,1/2", SAE

1шт.

21375R1

WASHER

.53 X 1.25 X .164 ZND

1шт.

5

191777C1

SUPPORT

FAN JACKSHAFT DRIVE ROD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

6

194652C1

PIVOT

BAR, PIVOT ARM

2шт.

7

155311C1

SPRING

ARM ROD

2шт.

8

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

FAN JACKSHAFT DRIVE IDLER - 8 IN. OD

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

9

191305C1

V-BELT,0.879" W x 112.19" L

Fan jackshaft drive, OC

1шт.

10

191603C2

PULLEY

FEEDER DRIVE - 12 IN. OD

1шт.

11

183325C1

PULLEY

CLEANING UNIT DRIVEN - 13.00 IN. OD

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120394

WASHER,3/8", SAE

1шт.

12

193447C91

ARM

ELEVATOR JACKSHAFT IDLER, WITH 1

1шт.

495-11081

WASHER,3/4", SAE

1шт.

13

191531C1

ROD

ELEVATOR DRIVE IDLER LEVER

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

1шт.

495-11053

WASHER,1/2", SAE

1шт.

21375R1

WASHER

.53 X 1.25 X .164 ZND

1шт.

14

193450C2

BRACKET

SUPPORT, ELEVATOR DRIVE BAR

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

1шт.

15

673214R91

PULLEY

ELEVATOR - 7.3 IN. OD

1шт.

15

186782C92

PULLEY

ELEVATOR, OPTIONAL

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

16

193948C1

PULLEY,39.61mm W x 254mm OD

ASSY, JACKSHAFT DRIVE - 9.75 IN. OD

1шт.

116056

RIVET,FH, 1/4" x 1/2"

1/4 X 9/16 PLN F/HD SOL

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

21846R1

WASHER, .406 X 1.000 X .209

1шт.

17

186509C2

BELT,0.879" W x 255.99" L

Elevator drive, OC - Used with discharge beater

1шт.

18

1309455C1

SUPPORT

ELEVATOR DRIVE FIXED IDLER

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

19

673214R91

PULLEY

ELEVATOR DRIVE FIXED IDLER - 7.15 IN. OD

1шт.

19

186782C92

PULLEY

ELEVATOR DRIVE FIXED IDLER, OPTIONAL

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 X 2-1/4 TYPE 5

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

20

320993R1

SPACER,7/8" Tube x 1/2"

.657 X .875 X .438 TUBE

1шт.

21

1302350C1

SHIELD

ELEVATOR FIXED IDLER, NOT STRAW CHOPPER

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120394

WASHER,3/8", SAE

1шт.

22

186510C1

GUIDE

ASSY, DRIVE BELT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

1шт.

23

195161C1

PULLEY

BEATER DRIVE - 8.38 IN. OD

1шт.

120376

NUT,5/16"-18, G5

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

80681

LOCK WASHER,5/16"

1шт.

24

193682C1

PULLEY

SHAKER SHAFT DRIVEN - 25 IN. OD

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

80681

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

1шт.

25

188298C2

STUD

JACKSHAFT PIVOT ARM

2шт.

280954

NUT,3/4"-10, G5

1шт.

13095R1

PIN,1/4" x 1 1/4"

1шт.

26

186669C2

CHANNEL

PIVOT ARM SUPPORT

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

1шт.

27

192011C1

SUPPORT

FAN JACKSHAFT IDLER DRIVE

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

28

183325C1

PULLEY

JACKSHAFT DRIVEN - 13.00 IN. OD

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

1шт.

142619H

WASHER

.406 X .750 X .105

1шт.

29

182676C2

SUPPORT

ELEVATOR PIVOT

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

30

1302352C1

GUIDE

ELEVATOR BELT UPPER

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

20803R1

WASHER

.406 X 1.000 X .105

1шт.

31

1302068C2

GUIDE

ELEVATOR BELT LOWER

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

32

1302353C1

GUARD

SHIELD, ELEVATOR FIXED IDLER

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120394

WASHER,3/8", SAE

1шт.

33

1302351C1

DEFLECTOR

ELEVATOR REAR SHIELD

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1шт.

34

564737R1

SPACER,7/8" Tube x 2 1/16"

.656 X .88 X 2.06

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

50115K

WASHER

.656 X 2.5 X .105 PLN

1шт.

35

181055C1

BELT,0.879" W x 200.99" L

Cleaning unit drive, OC, Used with straw chopper

1шт.

36

1311121C1

SHIELD

FAN DRIVE JACKSHAFT IDLER

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

Course Threads

1шт.

704227R2

BUSHING

1шт.
