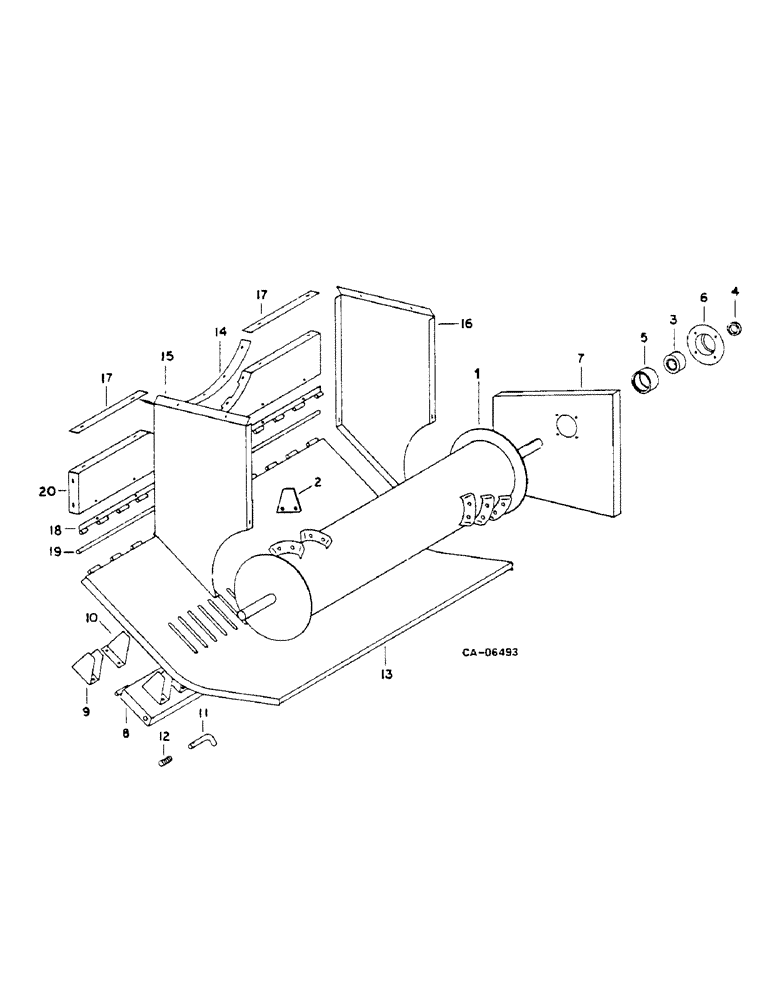

Запчасти Case IH 1460 (17-036) - STRAW CHOPPER, ROTOR AND CONCAVE Mounted Equipment

1

185099C91

ROTOR ASSY.

STRAW CHOPPER, WITH 2

1шт.

23071R1

WASHER

.906 X 2.000 X .164

1шт.

21779R1

WASHER

1.344 X 2.000 X .105

1шт.

21290R1

WASHER

1.344 X 2.000 X .054

1шт.

2

174641C1

BLADE

STRAW CHOPPER ROTOR

28шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1шт.

427646

SLOTTED NUT,7/8"-14, G5

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

3

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

ASSY

2шт.

4

455112R11

COLLAR

ASSY, BEARING ASSY

2шт.

5

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

STRAW CHOPPER BEARING

2шт.

6

936130R1

FLANGE

BEARING

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

7

181096C1

SUPPORT

ASSY, CHOPPER L.H.

1шт.

7

181097C1

SUPPORT

ASSY, CHOPPER R.H.

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

30282R1

WASHER,M10 x 20 x 2

10.8 X 21 X 2 MM

4шт.

8

185135C91

BAR

ASSY, STRAW CHOPPER CONCAVE, WITH 9 - 10

1шт.

9

1302763C1

KNIFE

BLADE, CHOPPER CONCAVE

12шт.

10

1302764C1

KNIFE

BLADE, CHOPPER CONCAVE

1шт.

11

186736C1

ROD

CHOPPER CONCAVE BAR

1шт.

432-616

COTTER PIN,3/32" x 1"

1шт.

469668R1

WASHER

.406 X .734 X .056

1шт.

12

540815R1

SPRING

CONCAVE BAR

2шт.

13

185141C1

PLOW BOTTOM ASSY

STRAW CHOPPER DEFLECTOR

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

1шт.

14

182898C1

SUPPORT

GAUGE FILLER REAR - STANDARD ON RICE

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

15

182946C1

DEFLECTOR

DISCHARGE L.H. - STANDARD ON RICE

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

16

182947C1

DEFLECTOR

DISCHARGE R.H. - STANDARD ON RICE

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

17

182891C1

PLATE

BAR, BULKHEAD FILLER - STANDARD ON RICE

2шт.

18

182894C1

HINGE

STRAW CHOPPER CONCAVE - STANDARD ON RICE

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 ZNP SLT-TRUSS-HD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

1шт.

19

182977C1

ROD

CONCAVE HINGE - STANDARD ON RICE

1шт.

20

SUPPORT, REAR, SEE GAUGE

1шт.
