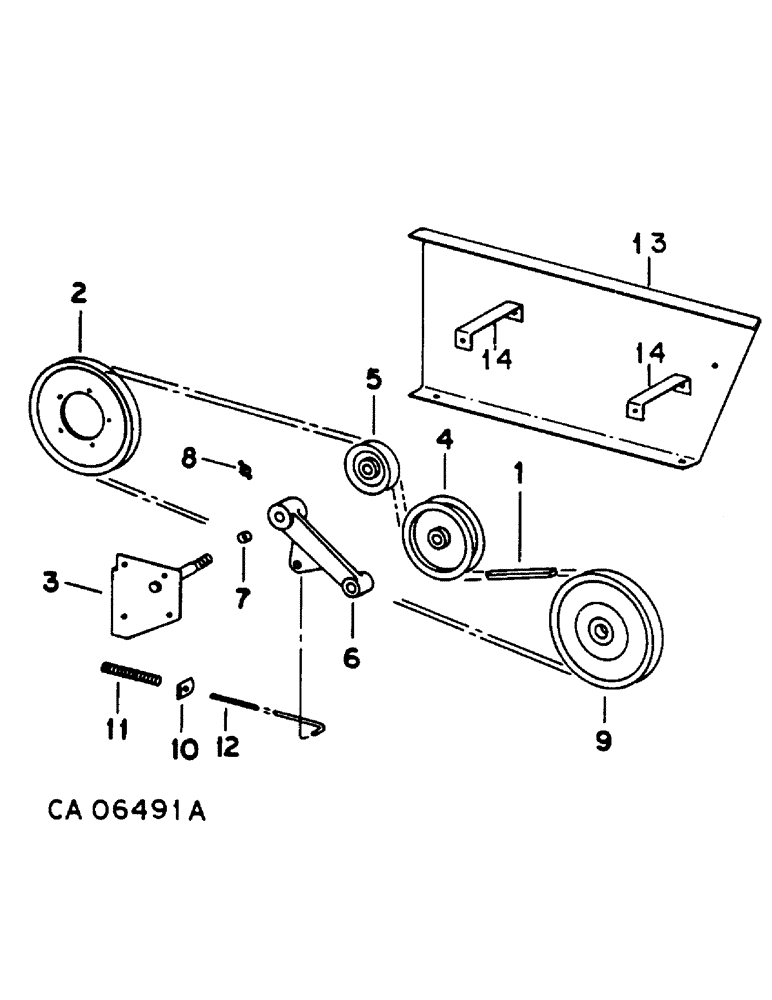

Запчасти Case IH 1460 (17-031) - STRAW SPREADER DRIVE Mounted Equipment

1

196371C1

BELT,0.630" W x 222.59" L

Straw spreader drive, OC

1шт.

30446R1

BOLT,Hex, M16 x 2 x 75mm, Cl 8.8

1шт.

2

566516R91

PULLEY ASSY.

SPREADER DRIVE

1шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

934310R1

NUT,M8, Cl 8

5шт.

934309R1

LOCK WASHER,M8

5шт.

3

1315275C1

SUPPORT ASSY.

DRIVE TIGHTENER

1шт.

931830C1

SPARE PART BOLT, M8 X 20 CLASS 8

3шт.

934310R1

NUT,M8, Cl 8

3шт.

934309R1

LOCK WASHER,M8

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

1шт.

120384

WASHER,1/2"

1шт.

495-11053

WASHER,1/2", SAE

1шт.

4

181126C91

PULLEY

DRIVE TIGHTENER

1шт.

30428R1

NUT,M16, Cl 8

1шт.

934185R1

LOCK WASHER,M16

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

6шт.

5

1315269C1

PULLEY

DRIVE IDLER

1шт.

6

181153C91

LEVER ASSY.

TIGHTENER ARM, WITH 7

1шт.

3176203R1

WASHER

20 X 36 X 3 MM

1шт.

7

165704C1

BUSHING

2шт.

8

18588R91

FITTING, 1/4 STR LUB

1шт.

9

181196C1

PULLEY

SPREADER DRIVEN

1шт.

30010R1

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

3176424R1

LOCK NUT,M8 x 1.25, Cl 8

1шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

8.8 X 21 X 2.5 MM PHC

1шт.

10

194652C1

PIVOT

BAR, TIGHTENER ROD

1шт.

11

523677R1

SPRING

TIGHTENER ROD

1шт.

12

181152C1

ROD

IDLER TIGHTENER

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

2шт.

905198R1

PIN, SPLIT (COTTER)

PIN, COTTER 5 X 28 MM PLAIN

1шт.

495-11053

WASHER,1/2", SAE

1шт.

13

1309121C2

SHIELD

SPREADER DRIVE

1шт.

3177070R1

SCREW,Sltd Truss Hd, M8 x 20

M8 X 20 SLT-TRUSS-HD

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Lock

2шт.

14

1309354C1

SUPPORT

SPREADER DRIVE SHIELD

2шт.

3177082R1

SCREW

M8 X 16 SLT-TRUSS-HD

2шт.

3176963R1

SEAL ASSY.

NUT, M8 FLANGE LOCK

2шт.
