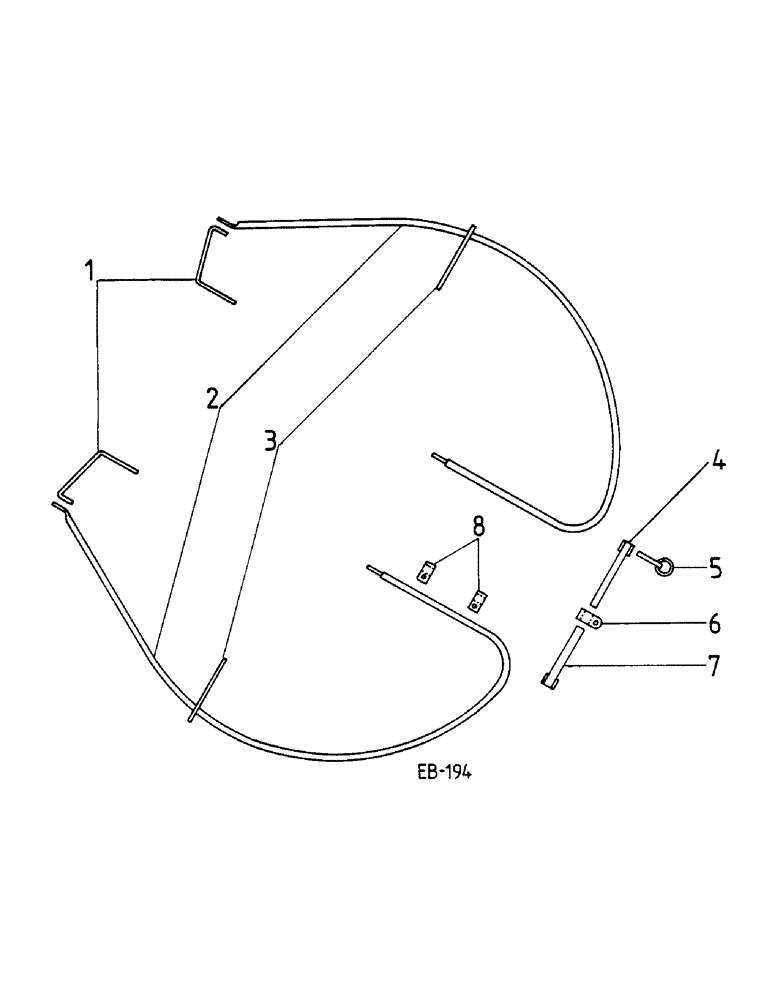

Запчасти Case IH 1460 (17-029) - STRAW SPREADER GUARD RAILS, FOR GERMANY Mounted Equipment

1

1866376R1

SUPPORT ASSY.

STRAW SPREADER RAIL

2шт.

2

1866373R1

TUBE

SPARE PART RAIL ASSY, STRAW SPREADER GUARD

2шт.

3177071R1

SCREW

SPARE PART M8 X 25 SLT-TRUSS-HD

2шт.

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Hex Thi-Bloc

2шт.

3

1866375R1

SUPPORT ASSY.

STRAW SPREADER RAIL

2шт.

4

1866212R1

PIPE ASSY.

INNER

1шт.

5

192235C2

PIN

1шт.

6

793323R2

CLAMP

COLLAR, TIGHTENER

1шт.

30640R1

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

1шт.

3161013R1

LOCK NUT

M12 LOCK

1шт.

7

1866209R1

PIPE ASSY.

OUTER

1шт.

3164631R1

BOLT,Hex Flange, M10 x 1.5 x 35mm, Steel

THI-BLOC

1шт.

934103R1

NUT

M10 HEX - NYLSTOP

1шт.

8

183822C1

CLAMP

2шт.

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

3174964R1

LOCK NUT

M6 HEX THI-BLOC

2шт.
