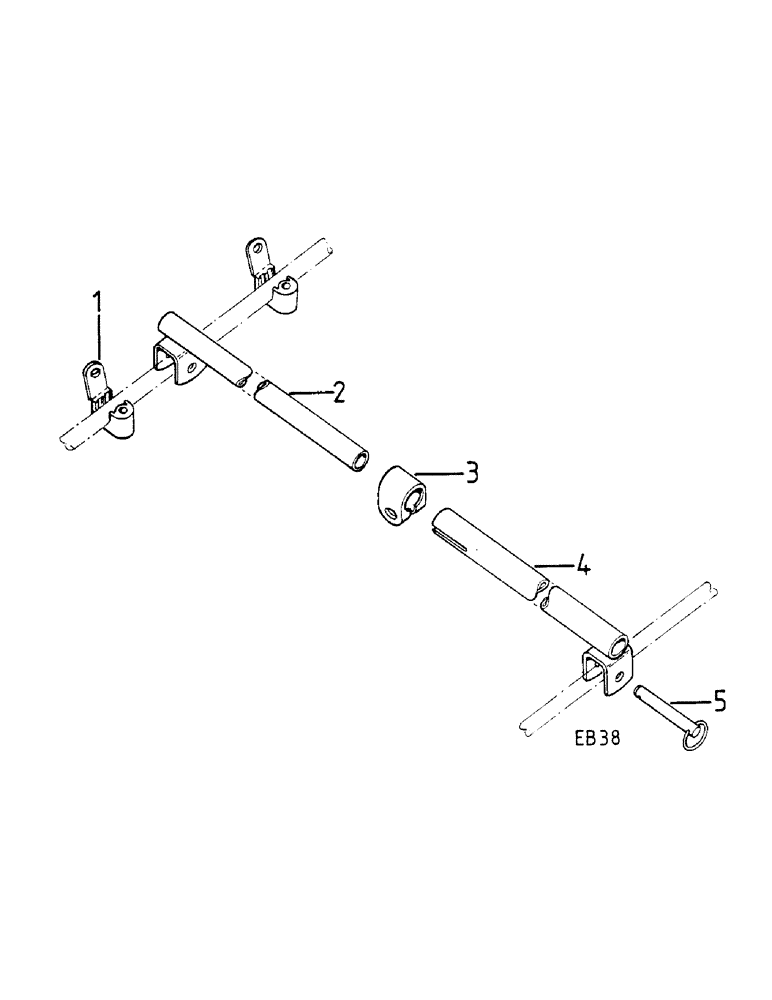

Запчасти Case IH 1460 (17-027) - STRAW SPREADER GUARD Mounted Equipment

1

183822C1

CLAMP

2шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

2шт.

3119440R1

LOCK NUT

1/4-20 LOCK

2шт.

2

1866212R1

PIPE ASSY.

INSIDE

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

3063560R1

LOCK NUT

3/8-16 LOCK

1шт.

3

793323R2

CLAMP

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

3040353R1

NUT

1/2-13 LOCK

1шт.

4

1866209R1

PIPE ASSY.

OUTSIDE

1шт.

5

192235C2

PIN

1шт.
